Gossen Metrawatt M711A Equipment tester, VDE tester VDE standard 0701-0702
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 2,249.00 / piece)
€ 2,249.00
incl. VAT
14-day return policy included
Highlights & Details
Test device for testing according to DIN VDE 0701-0702
- Quick selection of the individual measurements via direct selection keys
- Automatic threshold adjustment (protective conductor, insulation, equivalent leakage current)
- Two-pole measurement (low resistance, insulation, equivalent leakage current, voltage)
Technical specifications
- Usage error 5% of the measured value + 1% of the range
- Product type
Equipment tester
Manufacturer's standards (no certificate)
- Reading category
CAT II 250 V
- Interfaces
Bluetooth®
USB
- Dim
(L x W x H) 95 x 230 x 175 mm
- Weight
1300 g
IP40
- Reading range (VDE)
Touch voltage
Insulation resistance
Leakage current
Differential current
Earth leakage resistance
Active power
- DIN standard
DIN VDE 0701-0702
- Display type
Digital
- Width
230 mm
- Height
175 mm
- Length
95 mm
- Test procedure
automated
- Voltage supply
Mains
- Memory
Optional
- Type
M711A
- VDE standard
0701-0702
- Features
incl. software
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1954898 Gossen Metrawatt M711A Equipment tester, VDE tester VDE standard 0701-0702
User & Safety Instructions
User & Safety Instructions 1954898 Gossen Metrawatt M711A Equipment tester, VDE tester VDE standard 0701-0702
Description

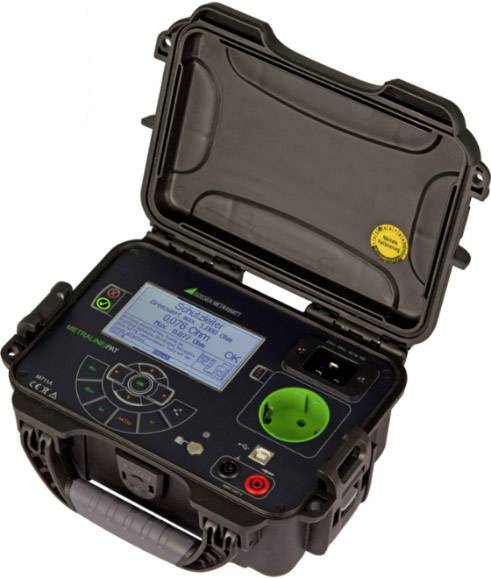

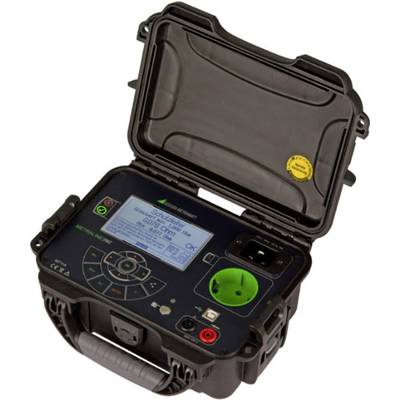

Reliable and precise tester from Gossen Metrawatt in a compact design.
This text is machine translated.
This text is machine translated.
Features
- Testing according to DGUV regulation 3, DIN VDE 0701-0702
- Testing of permanently connected devices possible
- Clear text operation with block diagrams and green/red LED display for OK/error
- Large high-contrast display
- Checking the mains connection for PE connection and automatic shutdown in the event of a dangerous residual current of the test object
- Finger contact for earth conductor potential check
- Short-circuit check of the test specimen
- Fast power polarity reversal with load current monitoring
- Fast sequence of all active tests including function test with real effective value power display in just one step. Standby measurement
- Bluetooth interface for tablet and USB interface for PC operation

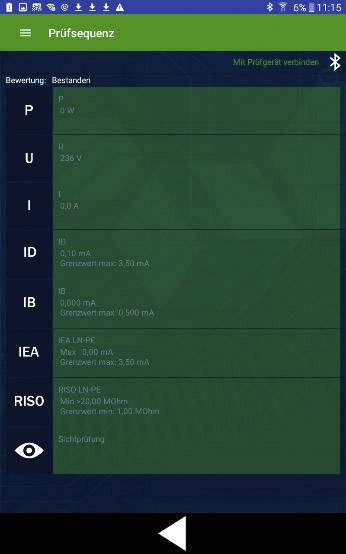

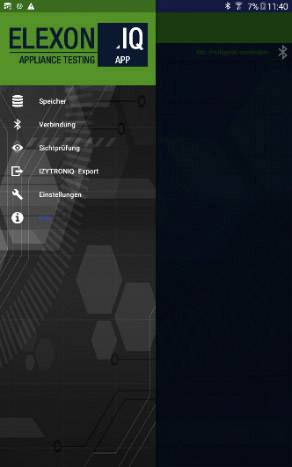

- Optional guided operation via Android app Test master with SQLITE3 database (for download via Google Play Store)
- Compact design, low weight
Scope of delivery
- 1x tester
- 1x test lead red with safety plug and probe tip, 2 m
- 1x mains connection cable, earthing contact plug - IEC 60230, 16 A, 1.5 m
- 1x factory calibration certificate
- 1x user manual
