Gossen Metrawatt PV:1525 Package PV analyser VDE standard 0126
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 3,575.00 / piece)
€ 3,575.00
incl. VAT
14-day return policy included
Highlights & Details

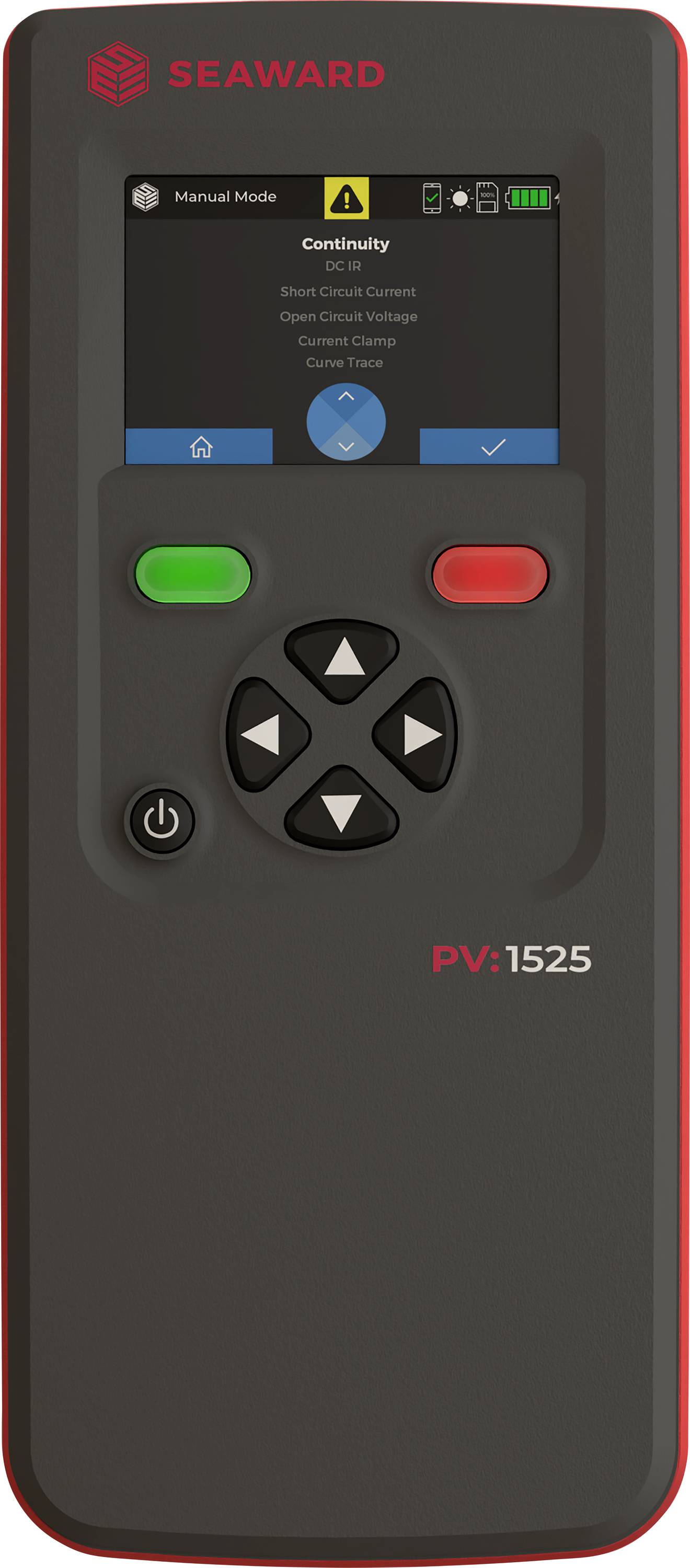

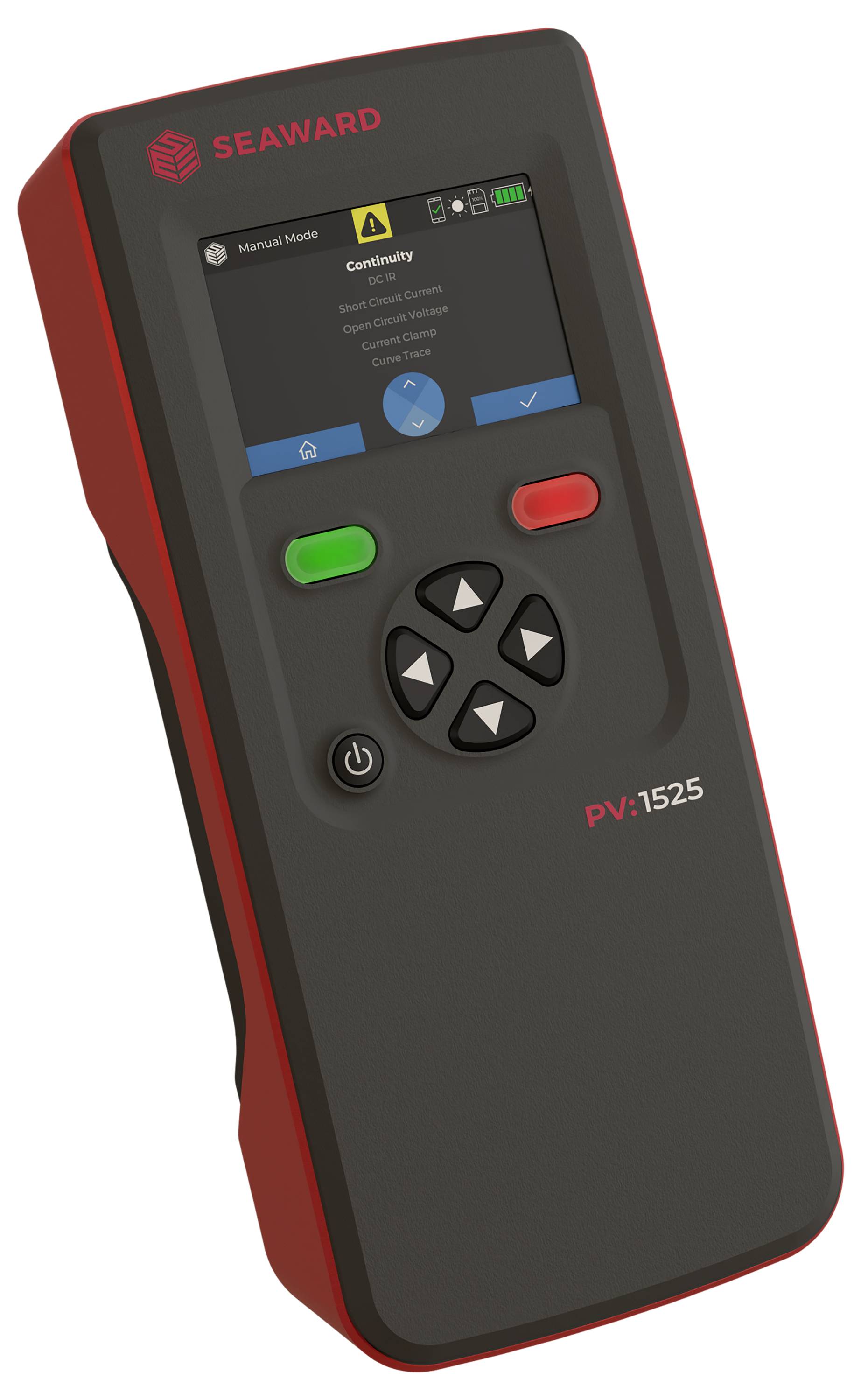

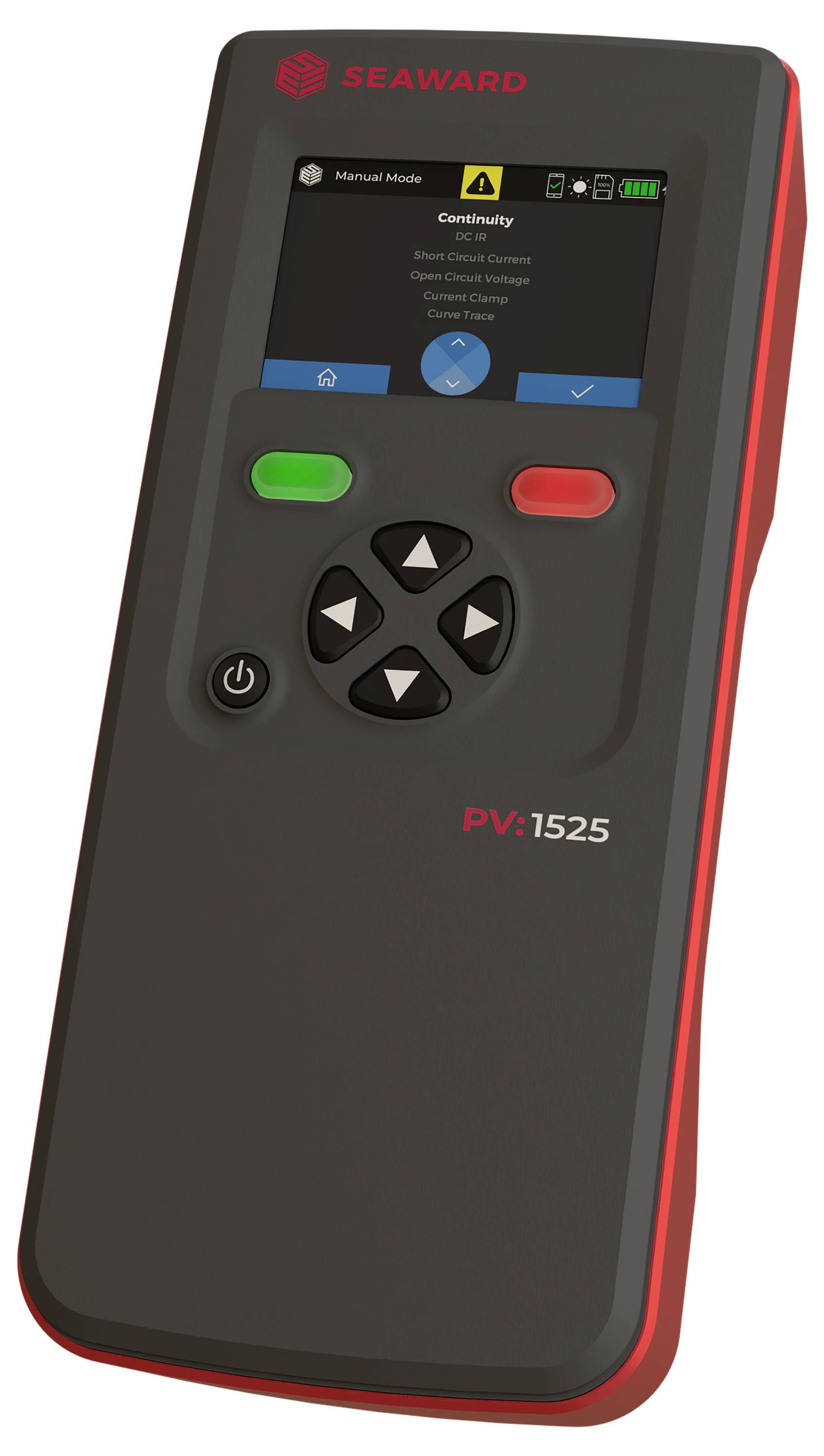

PV Tester PV: 1525 - Powerful tester for 1500V PV systems with Bluetooth
- Measurement of open-circuit voltages up to 1500V DC
- Short-circuit current measurement up to 25A DC
- Insulation test with test voltages up to 1500V DC
- Bluetooth data transmission to the PV Mobile APP
- Intuitive color display with illuminated function keys
- Manual mode for detailed diagnostic tests
- Wireless firmware updates via the APP
- Results can be saved with project information
- Internal device memory for measurement results
- Suitable for residential and commercial premises
Technical specifications
- Product type
PV analyser
Manufacturer's standards (with certificate)
- Interfaces
Bluetooth®
- Dim
(L x W x H) 115 x 265 x 78 mm
- Weight
1 kg
- Reading range (VDE)
Voltage
Insulation resistance
Current
Power
- DIN standard
DIN VDE 0126
- Display type
Digital (OLED)
- Width
265 mm
- Height
78 mm
- Length
115 mm
- Test procedure
automated
- Voltage supply
Rechargeable
- Memory (space)
1000
- Memory
Yes
- Type
PV:1525 Package
- VDE standard
0126
- Features
incl. software
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3414797 Gossen Metrawatt PV:1525 Package PV analyser VDE standard 0126
User & Safety Instructions
User & Safety Instructions 3414797 Gossen Metrawatt PV:1525 Package PV analyser VDE standard 0126
User & Safety Instructions 3414797 Gossen Metrawatt PV:1525 Package PV analyser VDE standard 0126
Description
The PV:1525 is the ideal solution for installers and service technicians who want to efficiently test photovoltaic systems with the highest requirements. Developed for PV systems up to 1500V DC and 25A, the device offers comprehensive safety and power tests like open-circuit voltage, short-circuit current, earthing continuity and insulation resistance.
The operation is particularly comfortable owing to its intuitive user interface, a brilliant color display and illuminated function keys - even under difficult conditions.
The integrated Bluetooth interface enables simple transmission of the measurement results to the PV Mobile APP, where they can be organized, checked and synchronized with the PC software. Firmware updates are done wirelessly – in this way your test device remains always up-to-date.
A strong partner for modern solar technology – safe, intelligent, efficient.
This text is machine translated.
The operation is particularly comfortable owing to its intuitive user interface, a brilliant color display and illuminated function keys - even under difficult conditions.
The integrated Bluetooth interface enables simple transmission of the measurement results to the PV Mobile APP, where they can be organized, checked and synchronized with the PC software. Firmware updates are done wirelessly – in this way your test device remains always up-to-date.
A strong partner for modern solar technology – safe, intelligent, efficient.
This text is machine translated.
Features
- Colour display
- Illuminated function keys
- Bluetooth interface
- Built-in memory
- PV Mobile APP connection
- Wireless firmware updates
- Manual test mode
Scope of delivery

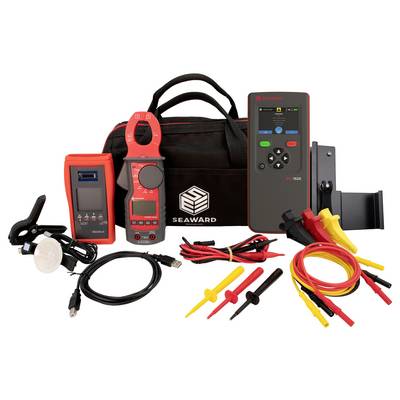

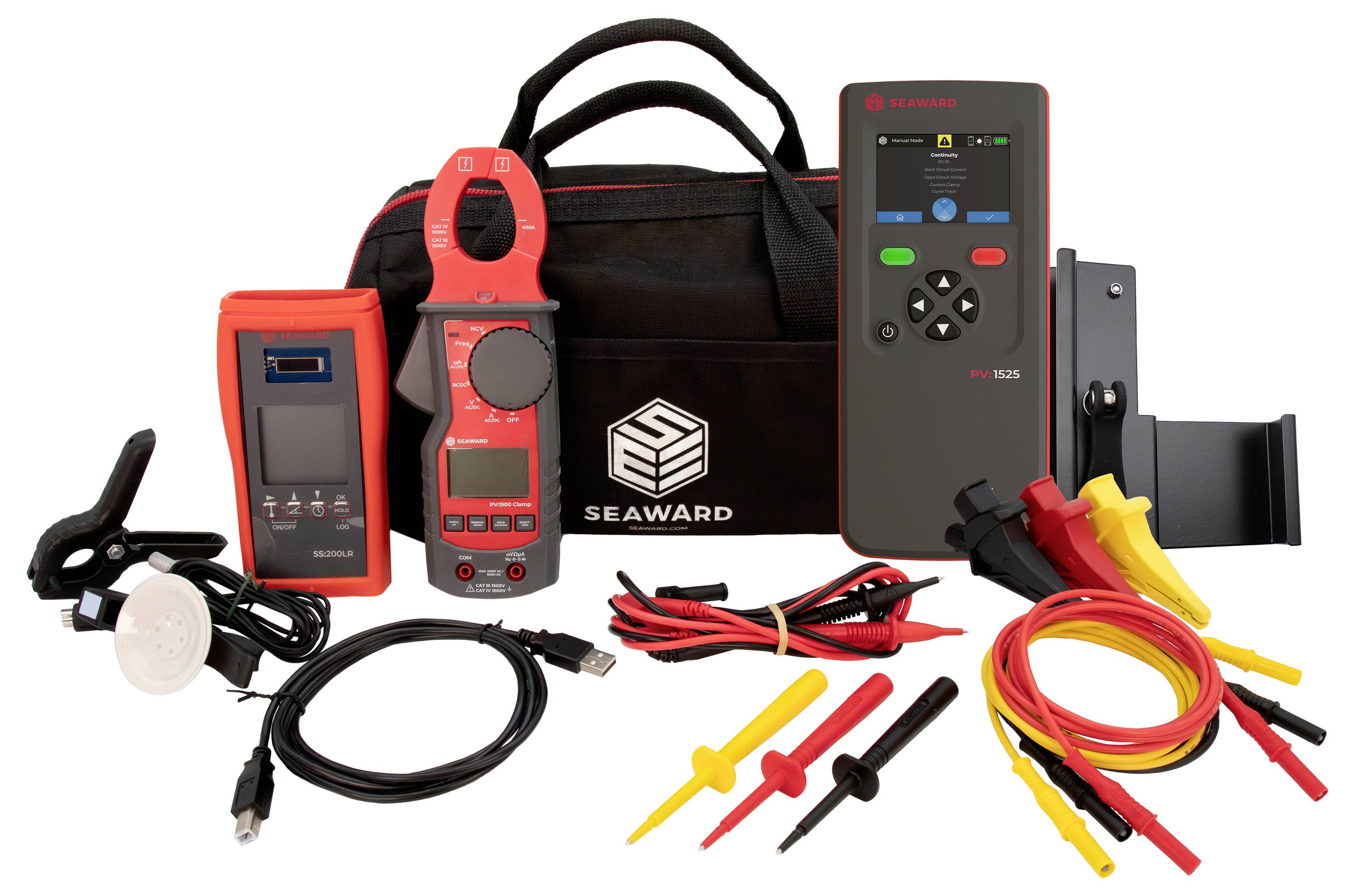

- Carrying case; 4 mm probe tip set in red, black and yellow with removable terminals; test leads to MC4 yellow and black; LiPo battery; battery charger; printed quick-start instructions; SS200LR radiation meter; PV:1500 Current pliers (wireless clamp meter); Solar module clamp; Solar Certs.
Hints
The PV Mobile APP is required to use the Bluetooth function.
