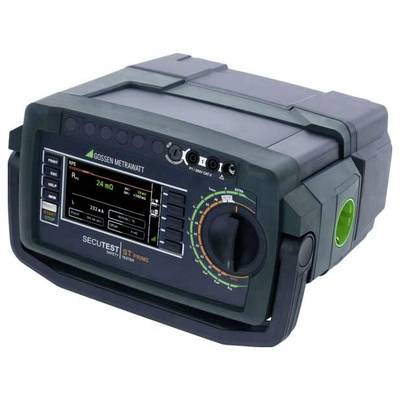

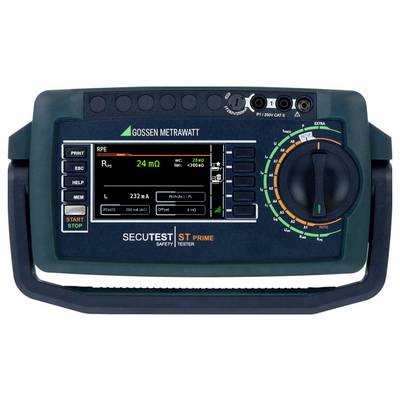

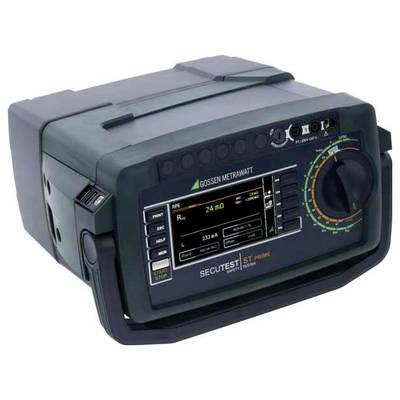

Gossen Metrawatt SECUTEST ST PRIME Equipment tester Calibrated to (DAkkS standards) VDE standard 0701-0702, 0751, 0544,
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 6,145.00 / piece)
€ 6,145.00
incl. VAT
14-day return policy included
Highlights & Details
Test device for testing the electrical safety of devices
- High voltage test with up to 6 kV DC
- Earth wire test by 200 mA AC/DC or 25 A AC
- Automated user guidance
- High resolution, color 4.3" TFT-display
- USB interface for bi-directional data transfer
- Possibility of direct control via REMOTE interface
- Extensive data management and storage concept for automatic test sequences and individual measurements for up to 50,000 data sets
Technical specifications
- Product type
Equipment tester
DAkkS standards
- Reading category
CAT II 300 V
- Interfaces
3x USB 2.0
- Dim
(L x W x H) 24 x 29.5 x 14.5 cm
- Weight
6.5 kg
Casing: IP40 / connection: IP20
- Reading range (VDE)
Touch voltage
Differential current
Leakage current
Frequency
Insulation resistance
Electrical load
Power
Power factor
Continuity
PRCD testing (2-pin, 3-pin, PRCDS, PRCDS+, PRCDK)
Show more
- DIN standard
DIN VDE 0701-0702
- Display type
LCD
- Width
29.5 cm
- Height
14.5 cm
- Length
24 cm
- Test procedure
automated
manual
- Voltage supply
230 V/AC
Mains
- Memory (space)
50000
- Memory
Yes
- Type
SECUTEST ST PRIME
- VDE standard
0701-0702
0751
0544
0413
- Features
incl. software
RCD/FI testing
- UKCA
not relevant
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3312272 Gossen Metrawatt SECUTEST ST PRIME Equipment tester Calibrated to (DAkkS standards) VDE standard 0701-0702, 0751, 0544,
User & Safety Instructions
User & Safety Instructions 3312272 Gossen Metrawatt SECUTEST ST PRIME Equipment tester Calibrated to (DAkkS standards) VDE standard 0701-0702, 0751, 0544,
Description
With the integrated HV-testing functionality the testing device is used in the manufacturing environment of electrical equipment. The objective of voltage testing is to verify the insulation capacity of the equipment within the scope of routine tests. This will check the correct design with regard to the air and creepage distances, as well as detect possible faults in the production process. As a compact and user-friendly device with integrated pre-configured test sequences, SECUTEST ST PRIME simplifies the work routine of the electrician. With its versatile test function, the new safety tester satisfies by its quality promise and offers corresponding future proof. The SECUTEST series have been in use for our customers for over 20 years.
This text is machine translated.
This text is machine translated.
Features
- Earthing conductor resistance measurement 200 mA AC/DC and 25 A AC (10 A AC optional)
- Insulation resistance measurement
- Leakage current measurements: Protective conductor current, contact current, device leakage current, patient leakage current, leakage current from the application part
- Measurement method: Direct method, differential current measurement method, equivalent leakage current (alternative method)
- Voltage measurement: SELV and PELV voltages
- Measurement of the tripping time of PRCDs
- Function test (U,I,P,S,LF,f)
- Line test using test adapters: Continuity, short circuit, polarity (wire exchange)
- Network connection and test socket with protective contact
- DB+ database extension
- Bluetooth (optional)
- Touch Display (optional)
- Protection class I according to EN 61140
- Measurement category CAT II / 300
Scope of delivery
- 1x tester SECUTEST ST PRIME 25 A
- 1x power cable
- 1x test probe (2 m uncoiled)
- 1x clip-on alligator clips
- 1x USB cable (type A to B, length 1.0 m)
- 1x IZYTRONIQ Business Professional Version
- 1x DAkkS calibration certificate
- 1x quick guide D, GB
