Gossen Photo M536V MAVOLUX 5032 C - KIT Lux meter 0.1 - 199990 lx
EAN:
Part number:
Item no:
Number
Total (€ 1,054.62 / piece)
€ 1,054.62
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Class C light intensity meter according to DIN 5032-7
- Simple functions expansion with optional lamp density attachment
- Raster measurement for the evaluation of work places and interior lighting
- Extensive measurement functions, relative, integral, deviation, ratio measurement
- Acquisition of minimum value, maximum value and average value calculation
- Data logger with adjustable log interval
- Large 4 GB measurement memory, readable via USB, like an external drive on the PC
- Continuous operation via USB with power bank, plug-in power supply or at your PC
- EXCEL macros for logging and data logging
- Measuring device and calibration from a single source
Technical specifications
- Class C light intensity meter
- Illuminance reading range
0.1 - 199990 lx
Manufacturer's standards (no certificate)
- Display
Digital
LCD
- Interfaces
1x USB 2.0 (device)
- Features
Suitable for LED lighting
Data logger
- Reading type
Light intensity
- Illuminance reading range (max.)
199990 lx
- Illuminance reading range (min.)
0.1 lx
- Illuminance reading accuracy
3 %
- UKCA
not relevant
- Product type
Lux meter
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2997654 Gossen Photo M536V MAVOLUX 5032 C - KIT Lux meter 0.1 - 199990 lx
Description

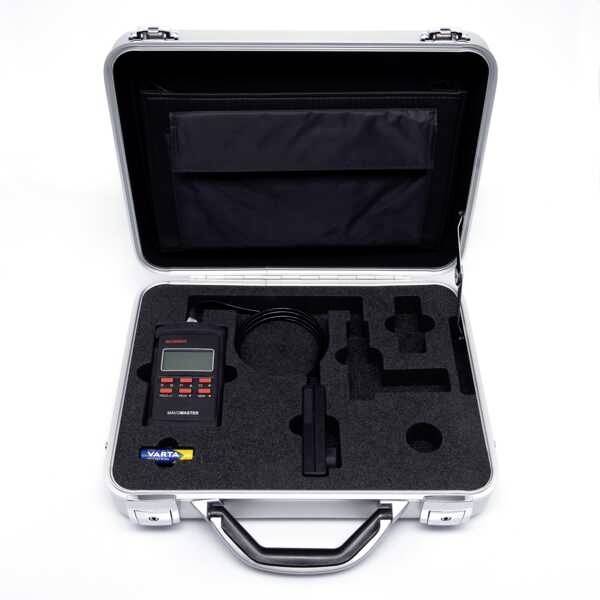

Due to its class C accuracy, the MAVOLUX 5032 C kit is used primarily as an operating instrument for general applications. The smallest measurement range starts with a resolution of 0.1 lx. The kit also includes a protective rubber cover with stand for the special impact protection and an aluminum case for the protected storage and safe transportation.
This text is machine translated.
This text is machine translated.
Scope of delivery
- MAVOMASTER
- MAVOPROBE LUX 5032 C
- Rubber protective cover
- 1.5V AA alkali-manganese battery (IEC LR 6)
- USB 2.0 cable connector A to Micro B connector, length 1.0 m
- EXCEL evaluation/data logger (download)
- Aluminium transportation case
- Final test proof
