Name: Green Cell UPS UPS 1000 VA
Brand: Green Cell
SKU: 3376434
Availability: InStock

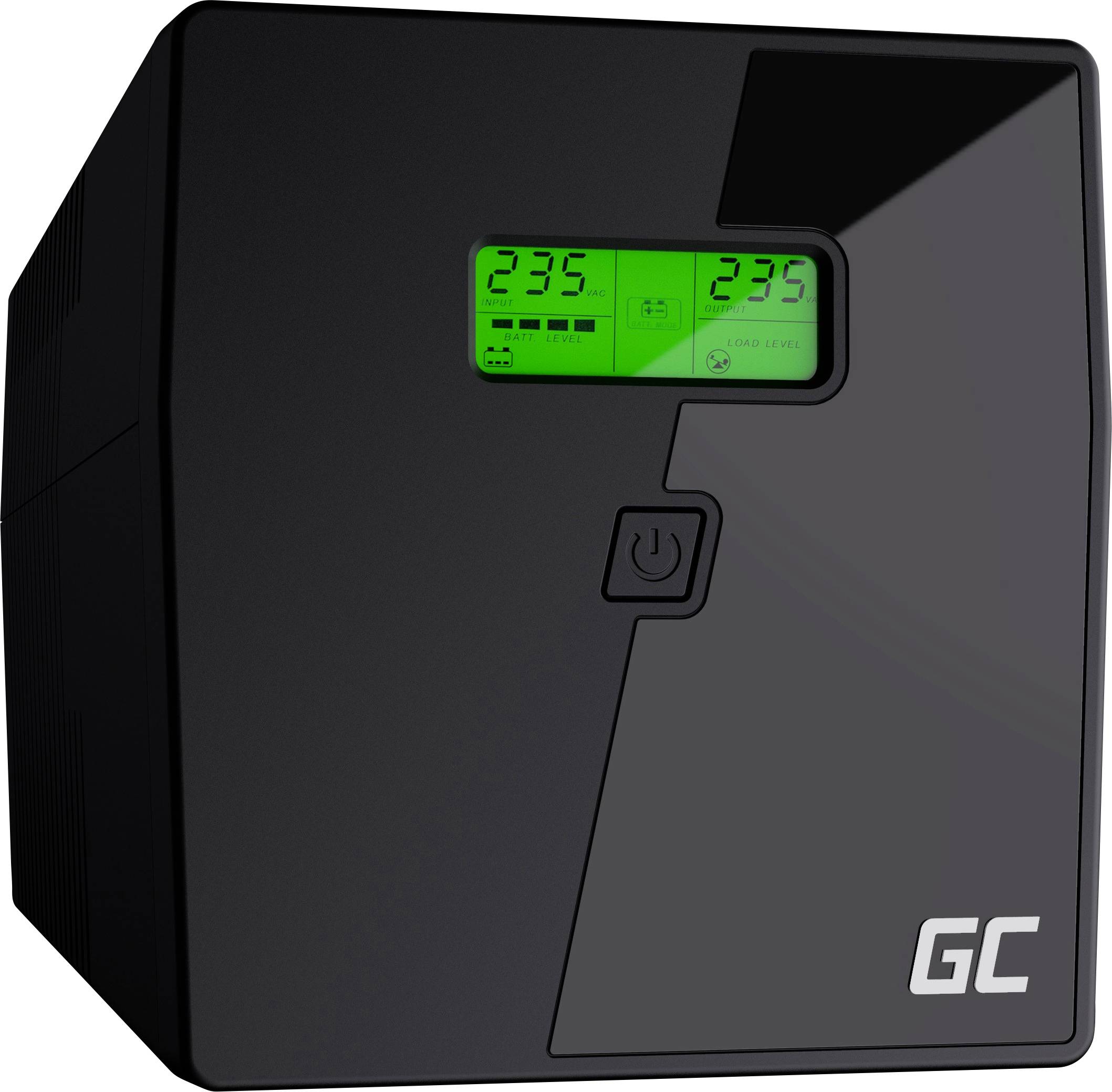

Black rectangular device with a green display, showing numbers '235' and symbols. A button in the centre at the bottom, marked with 'GC'.

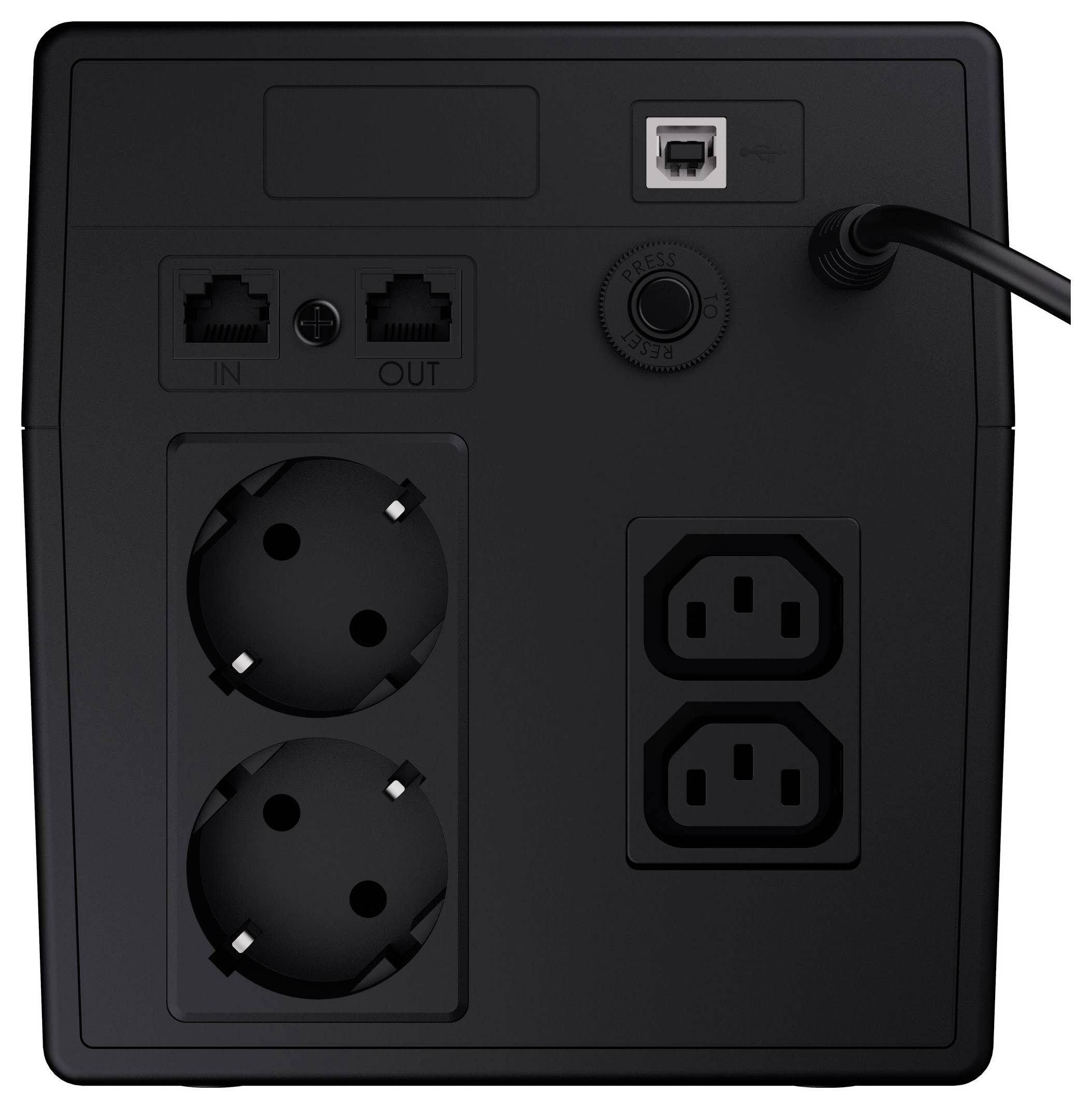

The rear panel of a UPS unit shows two Schuko sockets, two C13 sockets, LAN and USB ports. Top left: RJ45 in/out.

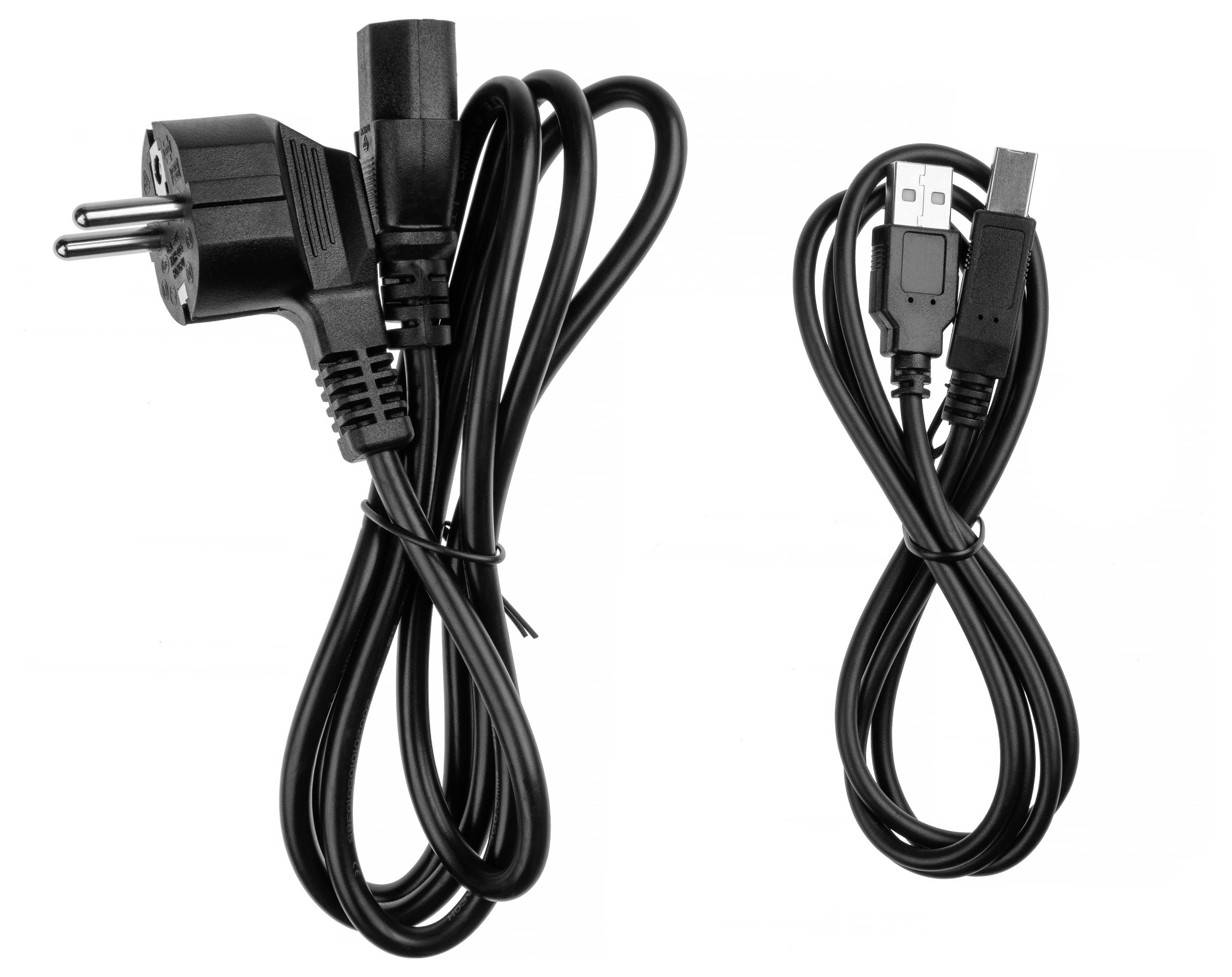

Two black cables: on the left a power cable with a Schuko plug, on the right a USB cable with USB-A and USB-B plugs.

A television is showing a football video game. Next to it stands an uninterruptible power supply (UPS) with an illuminated display.

Computer workstation with monitor, desktop PC, keyboard, mouse and a green plant pot in the background on a wooden table.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 179.99 / piece)

€ 179.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: UPS

Nominal power: 1000 VA

No. of outputs: 4 x

of which battery-buffered: 4

Output: PG socket

Features: USB port

Bridging time normal load: 45 min

Type: UPS

Width: 350 mm

Height: 160 mm

Depth: 146 mm

Weight: 8 kg

Factory colour: Black

Case type: Tower

: 700 W

Response time: 6 ms

UKCA: yes

Battery recharge time: 8 h

Output power capacity: 1.999 kVA

USB 2.0 ports quantity: 1

USB port: yes

AC outlets quantity: 4 AC-Ausgänge

Battery voltage: 12 V

Battery capacity: 7 Ah

Input operation voltage (max): 240 V

Input operation voltage (min): 220 V

Output operation voltage (max): 230 V

Documents & Downloads

Datasheet

Datasheet 3376434 Green Cell UPS UPS 1000 VA

User & Safety Instructions

User & Safety Instructions 3376434 Green Cell UPS UPS 1000 VA

Warranty Terms

Warranty Terms 3376434 Green Cell UPS UPS 1000 VA

Description

The Green Cell UPS emergency power supply offers complete protection for all connected devices in case of power failure and voltage peaks. It allows you to safely save your work and safely switch off the device
With a total power of 700W and a apparent power of 1000VA the UPS is fitted with Green Cell AGM-batteries, which deliver stable parameters for your devices
By using the latest technology, we have achieved a maximum short time for switching the UPS to battery operation of 2-6 milliseconds and depending on the load even a backup time of 45 minutes
Easy to use software offers a comprehensive management of the UPS from the computer. Send notifications, program emergency times, analyze real-time graphics, and more

This text is machine translated.

Features

Guarantee: 24 months (12 months for battery); Performance: 1000VA (700W); Type: Line Interactive Pure Sinewave (Czysta Sininewave); Overload Protection: Yes; Product Code: UPS08; Manufacturer: Green Cell; Surge Protection: Yes; Dimensions: 146 x 160 x 350 mm; Weight: 8 kg; Communication: USB; Indicator: panel LCD; Input voltage: 162-290V / 81-145V; Input frequency: 50/60 Hz z tolerancją do 10%; Output voltage: 230V; Output frequency: 50Hz / 60Hz; battery: 2x accumulation 12V 7Ah; Sockets: 2x Schuko + 2x IEC / RJ45 we/wy; Output voltage shape: Pure sine; Typical charging time: 6 godzin do 90% pojemności akumulatorów; response time: typowy 2-6 ms (maksymalny 10 ms);
