GYS 12V/140A 082564 Battery coupler
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 38.65 / piece)
€ 38.65
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Continuous current 140 A
- Max. current 160 A
- Consumption during operation: 140 mA
- Standby consumption 100 uA
- Product type
Battery coupler
- Length
82 mm
- Width
82 mm
- Height
51 mm
- Dim
(L x W x H) 82 x 82 x 51 mm
Documents & Downloads
Datasheet
Datasheet 3642621 GYS 12V/140A 082564 Battery coupler
User & Safety Instructions
User & Safety Instructions 3642621 GYS 12V/140A 082564 Battery coupler
Description
The 12 V/140 A battery coupler enables the simultaneous charging of two lead-acid batteries. It is Ideal for recreational vehicles (caravans, boats), since it enables a mutual, fast and reliable charging of the starter as well as of the additional battery (auxiliary battery). The compact coupler can be installed near the starter battery for optimum operation.
CHARGING FLOW MANAGER FOR LEAD-ACID BATTERIES

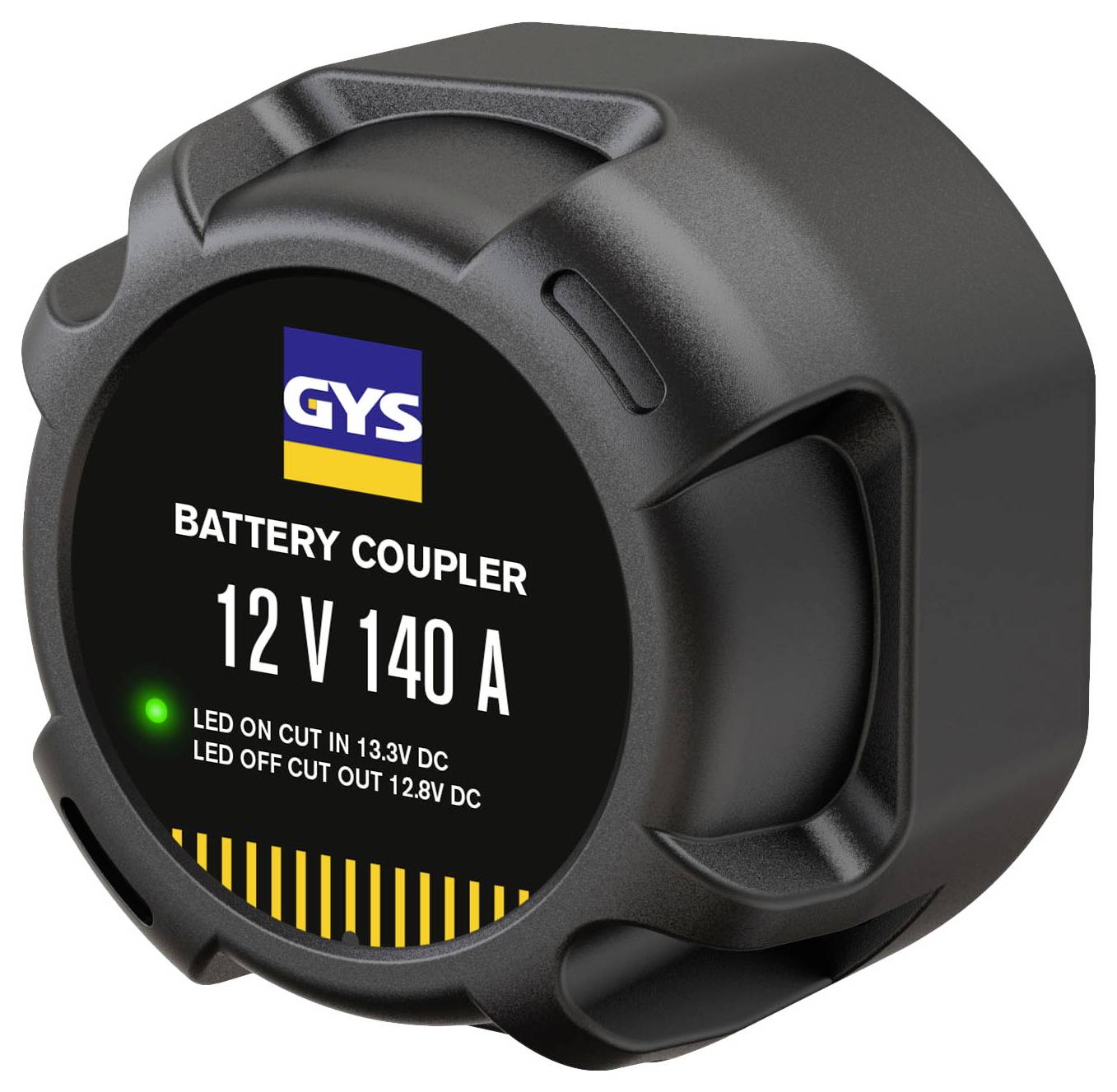

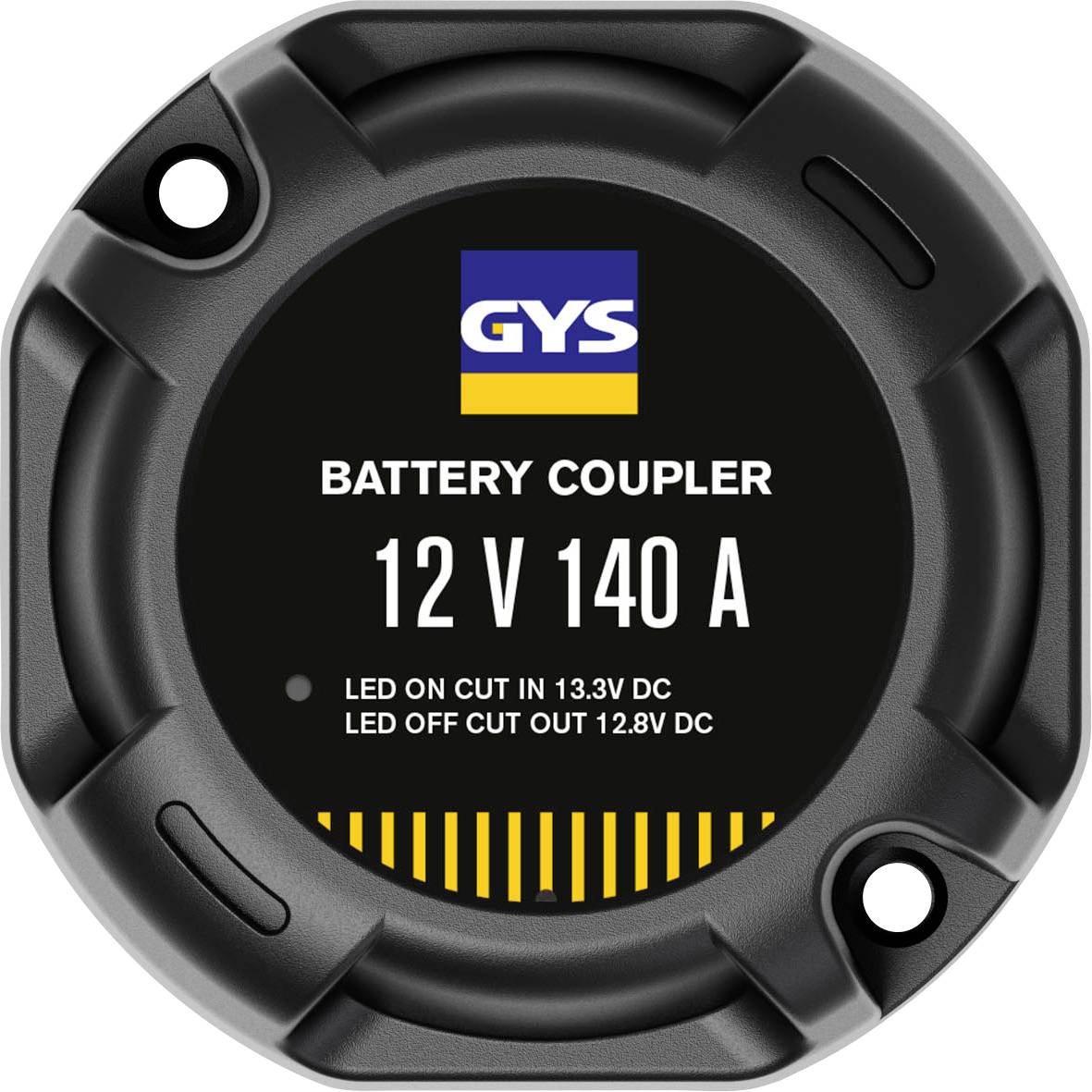

ON - When one of the batteries reaches a voltage greater than 13.3 V, the coupler switches over and allows the other battery to be charged at the same time.
OFF - When the battery voltage drops below 12.8 V, the coupler is disconnected to protect the batteries from possible discharge.
140 A GUARANTEE A COMPLETE CHARGING OF THE BATTERIES
The 140 A continuous current (160 A peak current) approved by the coupling make it possible to fully utilize the power of "high performance" generators used in recreational vehicles. Both batteries are fully charged very quickly.
This text is machine translated.
CHARGING FLOW MANAGER FOR LEAD-ACID BATTERIES
ON - When one of the batteries reaches a voltage greater than 13.3 V, the coupler switches over and allows the other battery to be charged at the same time.
OFF - When the battery voltage drops below 12.8 V, the coupler is disconnected to protect the batteries from possible discharge.
140 A GUARANTEE A COMPLETE CHARGING OF THE BATTERIES
The 140 A continuous current (160 A peak current) approved by the coupling make it possible to fully utilize the power of "high performance" generators used in recreational vehicles. Both batteries are fully charged very quickly.
This text is machine translated.
