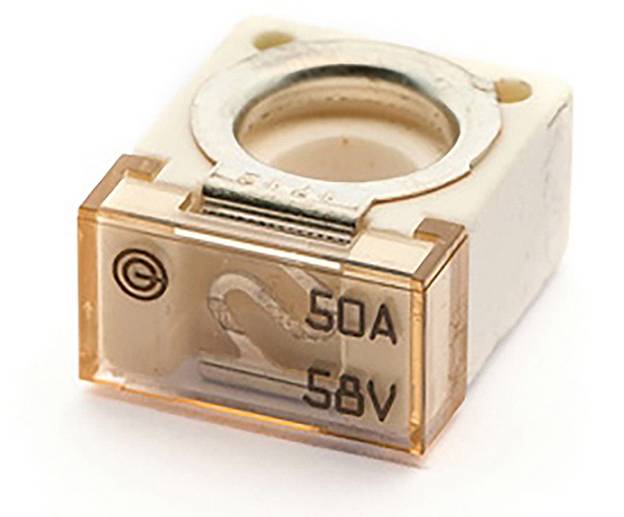

Phaesun CF8 CF50 Battery contact inline fuse Suitable for M8/M10 terminal
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
4% = € 0.67
€ 14.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Product type
Battery contact inline fuse
- Suitable for
M8/M10 terminal
- Length
23.5 mm
- Width
11.8 mm
- Height
20 mm
- Material
Ceramic
- Dim
(L x W x H) 23.5 x 11.8 x 20 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3735584 Phaesun CF8 CF50 Battery contact inline fuse Suitable for M8/M10 terminal
Description
The compact and innovative fuse series possesses a delayed trigger characteristic and is thus designed as slow-blow fuse. The robust casing is made of high-quality ceramic material. The inside has an integrated, resistant safety-melting conductor made of a copper-based alloy with tin coating. The specially developed melting element is produced in the EU and is designed to meet application-specific requirements. The fuse element is clearly visible through a transparent cover. The fuse is based on a single bolt technology with M8 connection thread, using an insulating nut is recommended. The product meets international requirements and conforms to the standard ISO 8820-6.
