Name: H-Tronic 1114760 WPS3000 compact Water float switch Filling, Draining 10 m
Brand: H-Tronic
SKU: 3017846
Availability: InStock

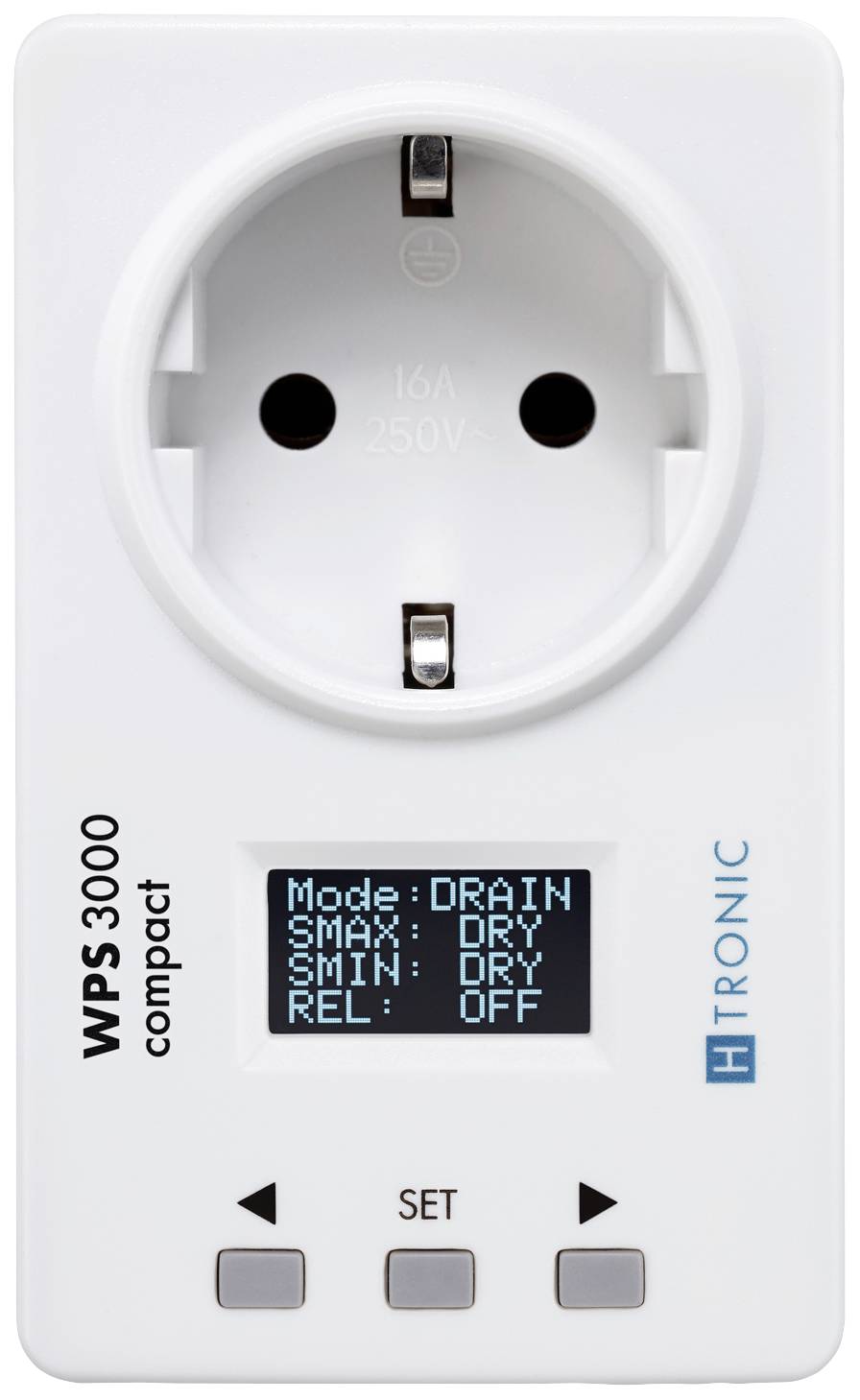

Socket with display shows 'Mode: DRAIN', 'SMAX: DRY', 'SMIN: DRY', 'REL: OFF'. Left 'WPS 3000 compact'.

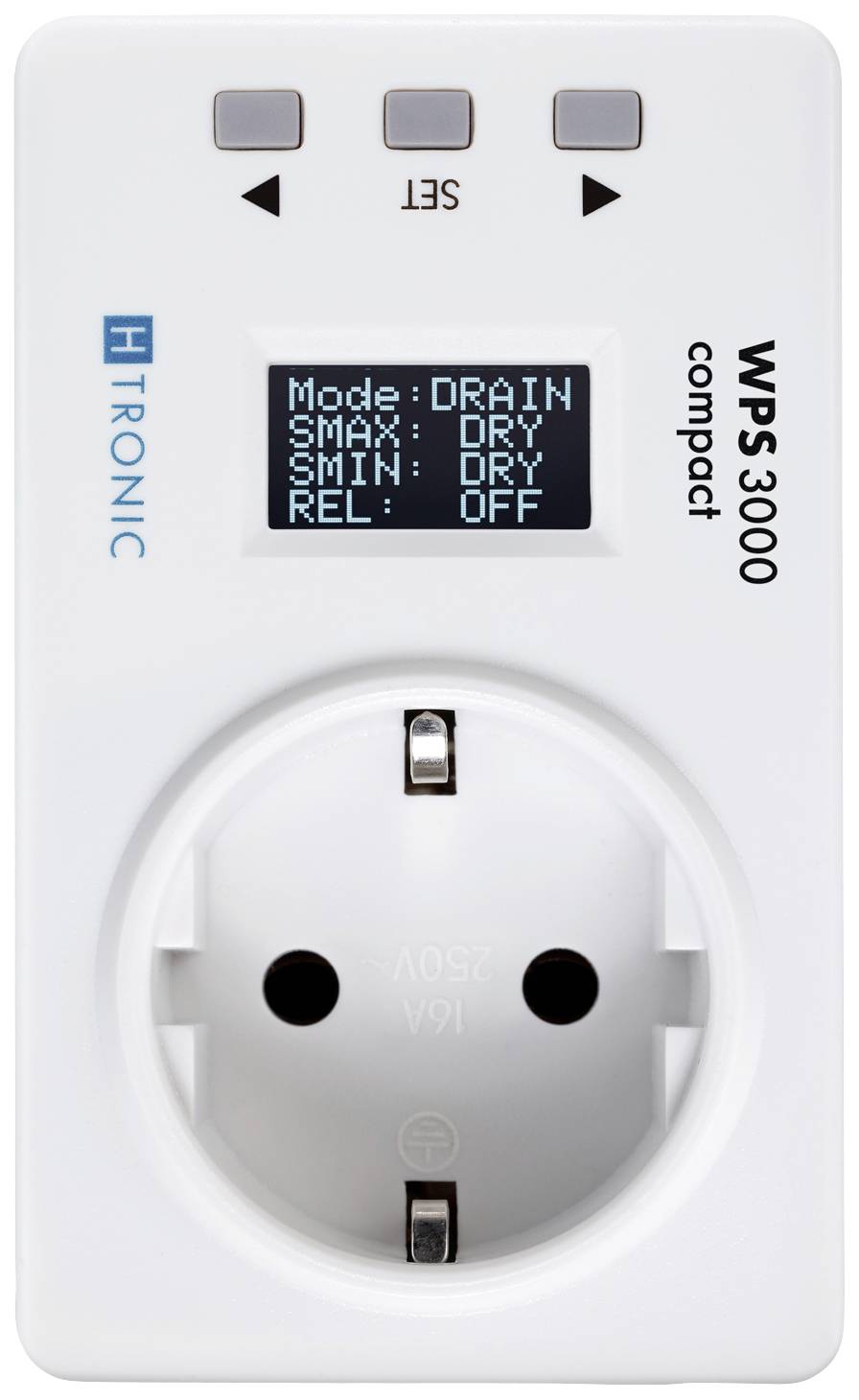

White socket with digital display. Display shows modes and settings: 'Mode: DRAIN, SMAX: DRY, SMIN: DRY, REL: OFF'.

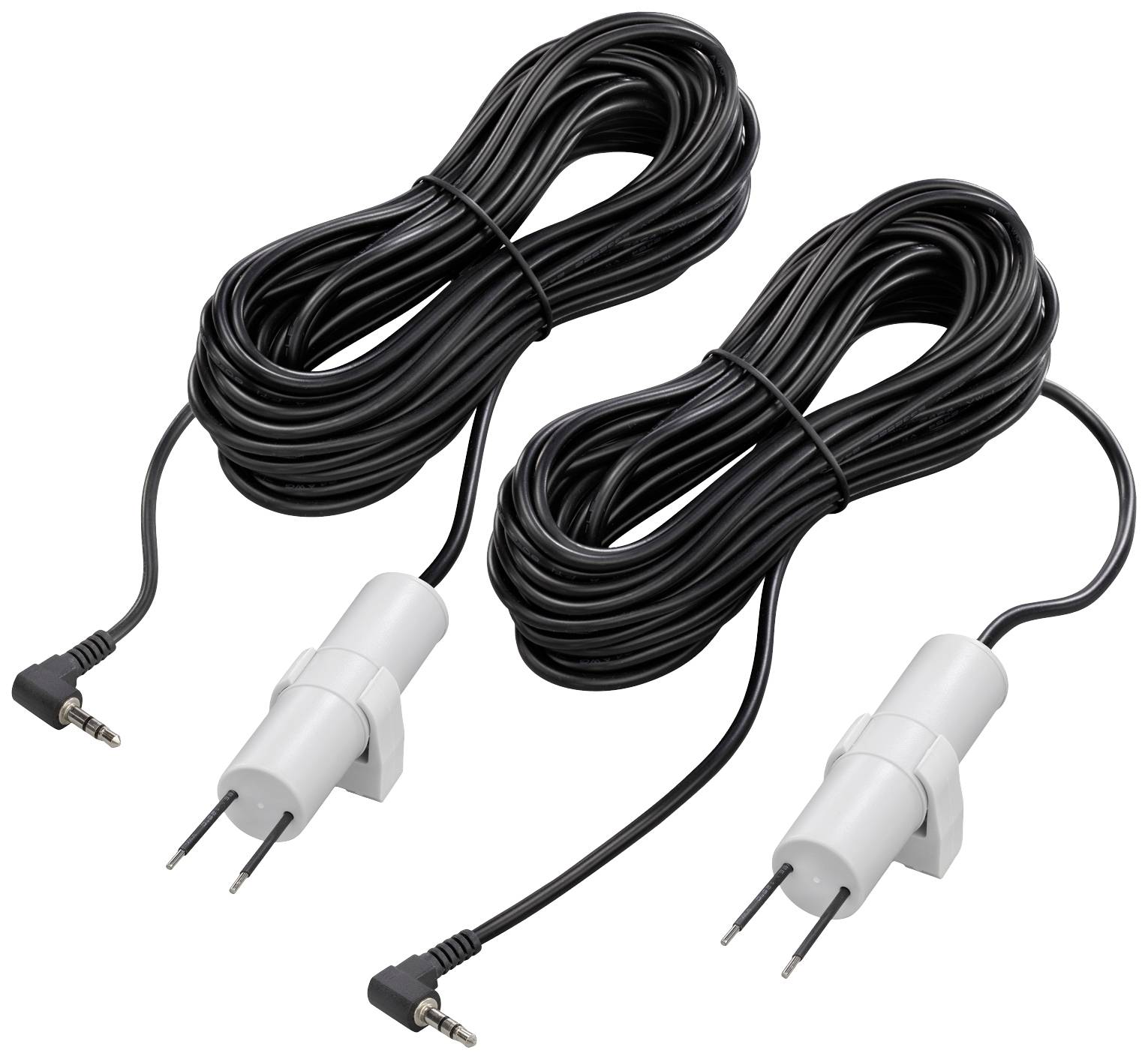

Two electrode wires with plug connections used to connect a device.

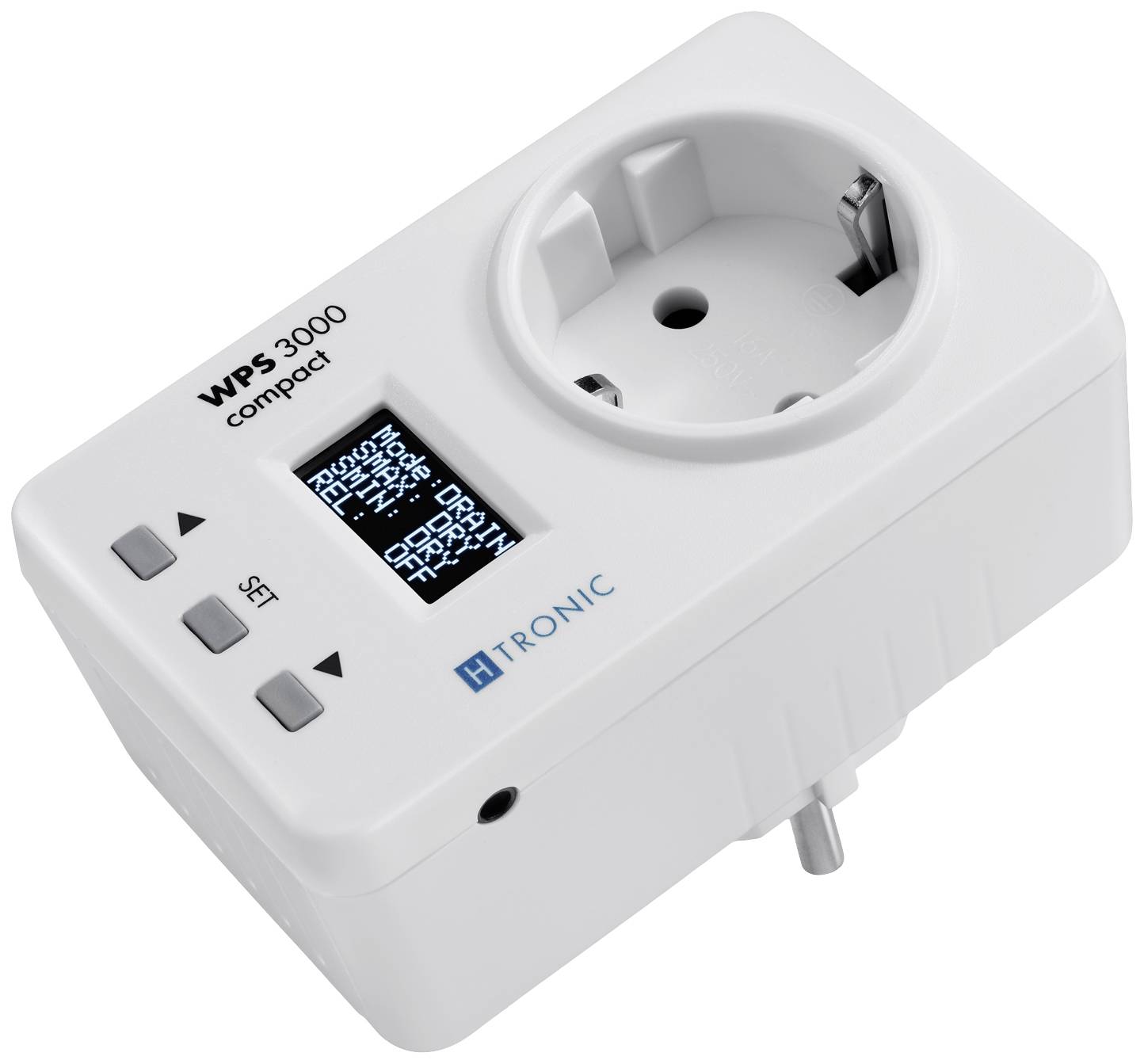

A white, digital timer 'WPS 3000 compact' with display and control buttons shows electricity consumption data.

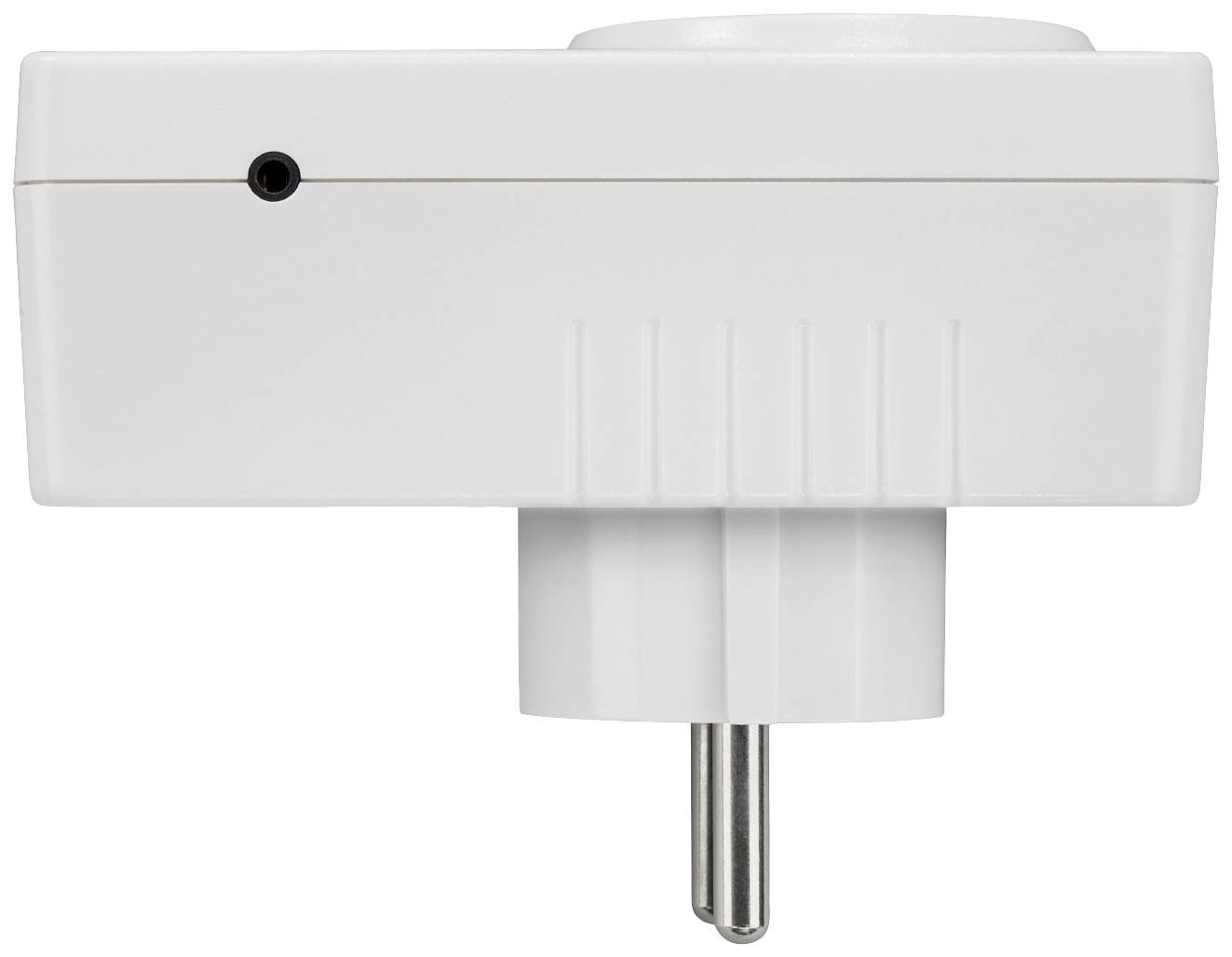

White, rectangular socket extension, shown frontally. Contains a small black socket on the top surface.

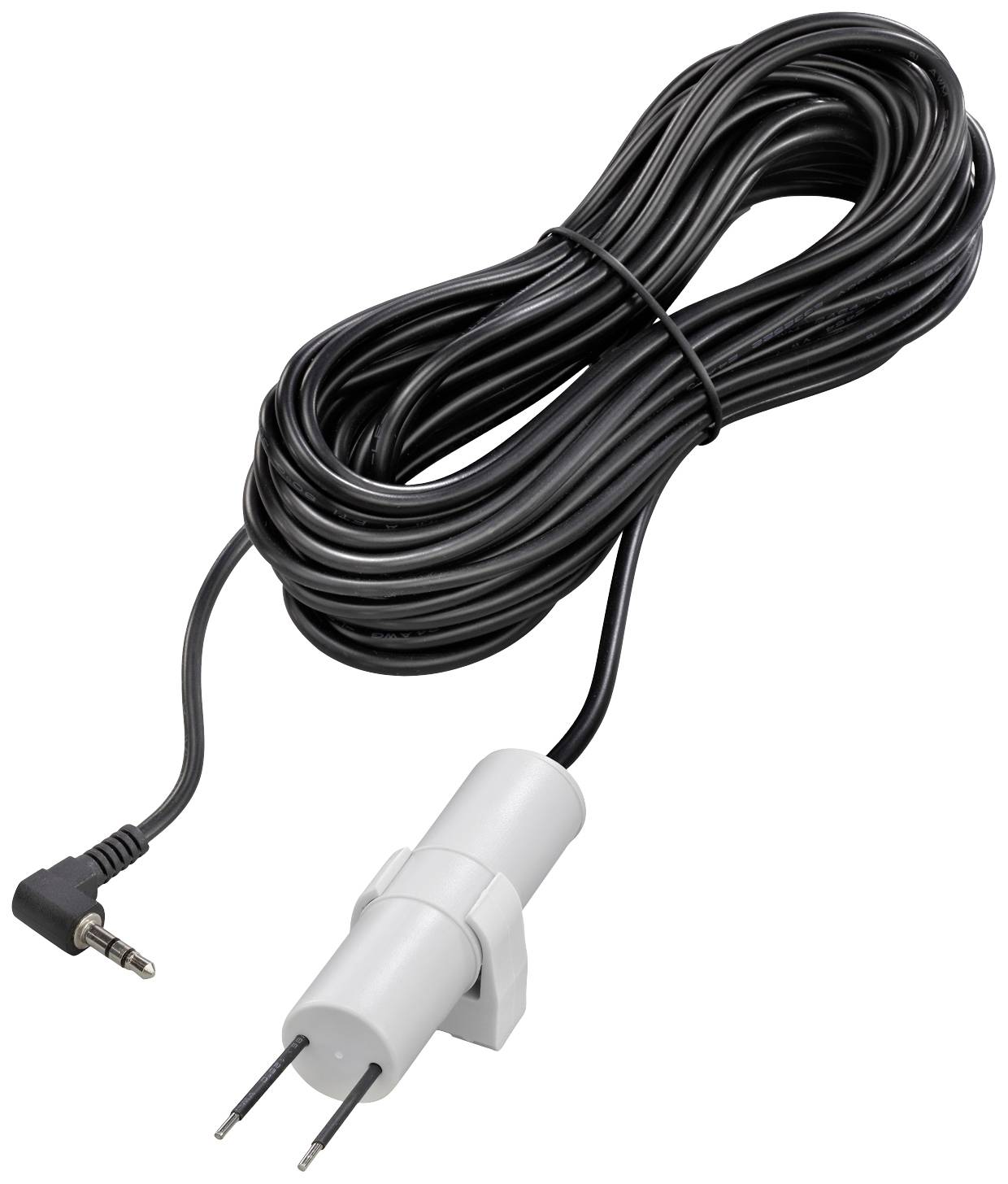

Long black cable with a 3.5mm jack plug and a cylindrical white sensor at the other end, likely for electronic measurements.

'WPS 3000 Compact for Complete Peace of Mind'. Image of a blue industrial valve and a white electrical plug.

Old stone well outdoors on the left; socket on the right with text 'WPS 3000 Compact for stable water supply'.

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 77.99 / piece)

€ 77.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Water level sensor WPS3000 compact

The best of our water level switches in a compact device
Refill, empty, maintain level or report leaks
Maximum switching capacity 2300 W (resistive load)
A compact OLED display informs about the current state

Technical specifications

Power consumption: 2 W
Max. Breaking capacity (resistive load) 2300 W
Ambient temperature: 0 ... +50 °C
Dim. WPS3000 compact 100 x 60 x 41 mm
Dim. Water sensor 98 x Ø 20 mm
Weight WPS3000 compact/water sensor 221/211 g
Total weight 643 g
Cable length water sensor: 10 m each

Product type: Water float switch

Function: Filling
Draining

Nominal voltage: 230 V AC

Connection: PG plug

Cable length: 10 m

: IP20

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3017846 H-Tronic 1114760 WPS3000 compact Water float switch Filling, Draining 10 m

User & Safety Instructions

User & Safety Instructions 3017846 H-Tronic 1114760 WPS3000 compact Water float switch Filling, Draining 10 m

Description

Do you want to refill your garden pond automatically with fresh water? Do you want to keep the water level in your cistern at a certain level? Or should leaking, conductive liquids be reliably detected? Here's the solution! The WPS3000 compact water level switch monitors the level of conductive liquids and combines several functions in a compact device. The water level sensor supplied detects changes in liquid level such as water in a liquid container. The water level switch controls a relay connected 230 V AC devices, e.g. a pump or a magnetic valve.

Functions:
– Fill or empty, e.g. cisterns
– Maintain fluid level between two water sensors
– Detect escaping liquids
– Switch connected 230 V AC devices, e.g. pumps or valves

Benefits:
– Automated level monitoring and control
– Any switch point can be selected by adjusting the position of the water sensors
– Suitable for concrete, plastic or metal liquid tanks
– No mains voltage at the water sensors.

This text is machine translated.
