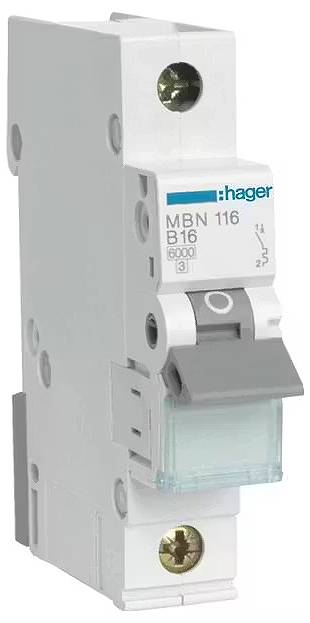

Hager MBN116 MBN116 Circuit breaker 1-pin 16 A
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
1
Release characteristics
B
Nominal current - rounded value
16 A
Nominal current
16 A
Datasheet (PDF)
Number
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
14-day return policy included
Technical specifications
- Product type
Circuit breaker
- Number of pins
1
- Release characteristics
B
- Nominal current - rounded value
16 A
- Nominal current
16 A
- Factory colour
Multicolour
- Dim
(W x H x D) 85.0000 x 18.0000 x 74.0000 mm
- Content
1 pc(s)
- Width
85.0000 mm
- Height
18.0000 mm
- Depth
74.0000 mm
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3360575 Hager MBN116 MBN116 Circuit breaker 1-pin 16 A
User & Safety Instructions
User & Safety Instructions 3360575 Hager MBN116 MBN116 Circuit breaker 1-pin 16 A
Information
Information 3360575 Hager MBN116 MBN116 Circuit breaker 1-pin 16 A
Description
Circuit breaker switch 1-pin 6kA B-characteristic 16A 1 Module.Circuit breaker according to DIN EN 60898-1 (VDE 0641-11) with time-delayed thermal trigger for overload protection and electromagnetic trigger for short-circuit protection. Suitable for add-on installation of additional devices. Labelling possibility directly at the device and individual removal from the phase-rail network by unlocking the top-hat rail quick mounting.
