HellermannTyton 148-90057 HCPM-5-Blister-PC-BU/CL (10) Connector clip flexible: 1.0-2.5 mm² fixed: 0.5-2.5 mm² Number of
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Connector clip
Cross section (flexible) (min.)
1.0 mm²
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (min.)
0.5 mm²
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 3.29 / piece)
€ 3.29
incl. VAT
14-day return policy included
Technical specifications
- Fire protection property UL94 V0
- Packaging type
Package
- Product type
Connector clip
- Cross section (flexible) (min.)
1.0 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Number of pins
5
- Factory colour
Transparent
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Content
10 pc(s)
- Dim
(L x W) 16.5 mm x 23.7 mm
- Manufacturer part #
148-90057
- Stripping length
11 mm
- Connection
Clamp
- Nominal voltage
450 V
- Width
23.7 mm
- Length
16.5 mm
- Temperature range
-30 °C up to +85 °C
- Connector clip features
Test window
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2917415 HellermannTyton 148-90057 HCPM-5-Blister-PC-BU/CL (10) Connector clip flexible: 1.0-2.5 mm² fixed: 0.5-2.5 mm² Number of
User & Safety Instructions
User & Safety Instructions 2917415 HellermannTyton 148-90057 HCPM-5-Blister-PC-BU/CL (10) Connector clip flexible: 1.0-2.5 mm² fixed: 0.5-2.5 mm² Number of
Description

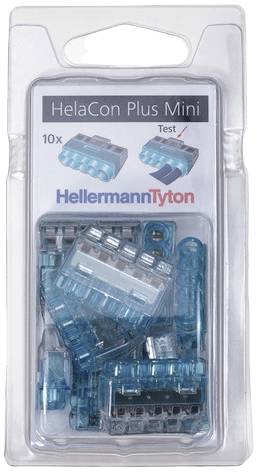

The HelaCon connection terminal enable a fast, easy and safe installation of electrical conductors in the house and building installation. They can be used in all junction boxes, whether surface or flush-mounting. HelaCon Plus Mini is especially suitable, if a simple handling at the same time Hohem claim to processing security is needed.
This text is machine translated.
This text is machine translated.
Features
- Advanced connection terminal for professional, space-saving cable installation
- 40 % smaller in comparison to HelaCon Plus Series
- Low insertion forces, saves time during installation
- Innovative design with enclosing cable input
- Test hole for voltage measurement on the opposite side of installation
- Relieves in difficult situations like overhead mounting
- Visual installation check with a transparent housing
- Colour coding simplifies the distinction of terminals
- Safe use in installation and maintenance
- Variobox with 350 selected connection terminals is available
