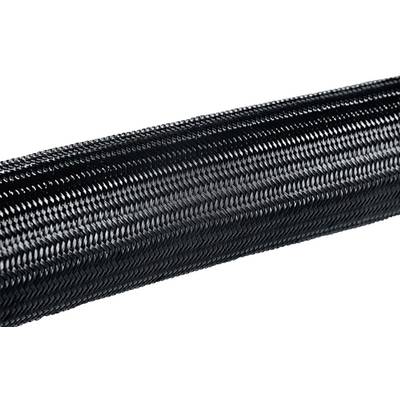

HellermannTyton 170-41600 HEGPA6616-PA66-BK Braided hose Black Polyamide 12 up to 18 mm 50 m
EAN:
Part number:
Item no:
Product type
Braided hose
Bundle diameter (min.)
12 mm
Bundle Ø (max.)
18 mm
Material
Polyamide
Features
halogen-free
Non-abrasive
highly flexible
Datasheet (PDF)
Number
Total (1 m = € 5.29)
€ 264.71
plus VAT.
Highlights & Details
Braided sleeving
- halogen-free, Non-abrasive, highly flexible
Our service for you
Technical specifications
- Product type
Braided hose
- Features
halogen-free
Non-abrasive
highly flexible
- Bundle diameter (min.)
12 mm
- Factory colour
Black
- Bundle Ø (max.)
18 mm
- Material
Polyamide
- Min. temperature
-60 °C
- Max. temperature
+150 °C
- Bundle Ø range
12 up to 18 mm
- Manufacturer part #
170-41600
- Content
50 m
- RoHS-compliant
Yes
- Type
HEGPA6616-PA66-BK
- Material (details)
Polyamide 6.6 (PA66)
- Certification
UL
- Fire protection properties
Complies with UL94 V0
- Operating temperature
-60 - +150 °C, short-term up to +200 °C
- Temperature range
-60 - 150 °C, short-term up to +200 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1993242 HellermannTyton 170-41600 HEGPA6616-PA66-BK Braided hose Black Polyamide 12 up to 18 mm 50 m
User & Safety Instructions
User & Safety Instructions 1993242 HellermannTyton 170-41600 HEGPA6616-PA66-BK Braided hose Black Polyamide 12 up to 18 mm 50 m
Description
Helagaine braided hoses made of polyamide 6 6 have a thread Ø about 10% larger than polyester. This provides the hoses with greater rigidity and outstanding abrasion resistance. Despite this higher rigidity Helagaine HEGPA66 braided hoses are also suitable for drawing on irregular shapes
Applications:
Helagaine HEGPA66 is particularly suitable for vehicle and plant construction
Processing: The fraying of braided hoses is prevented by welding the threads during the cutting process
