Name: Hobbywing Ezrun MINI28 Model car brushless speed control Load (Amp max.): 80 A Motor limit (turns): 1626
Brand: Hobbywing
SKU: 3400143
Availability: BackOrder

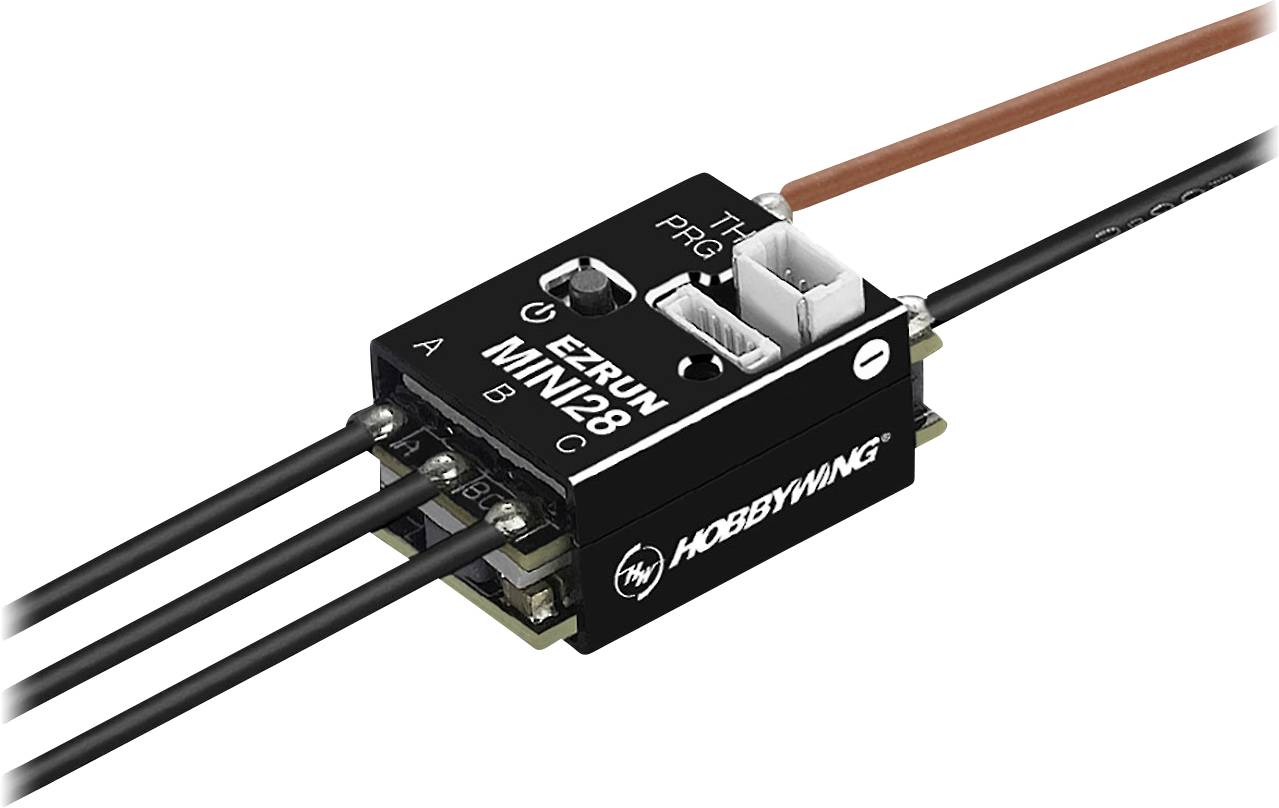

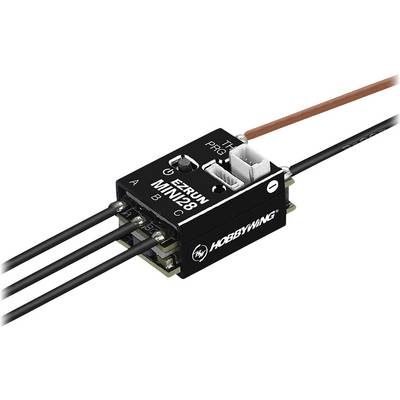

An electronic controller 'Ezrun Mini28' by Hobbywing, with connection cables, for remote-controlled vehicles.

An electrical component with three long rods, a black casing and red-black wires, likely a sensor or switch.

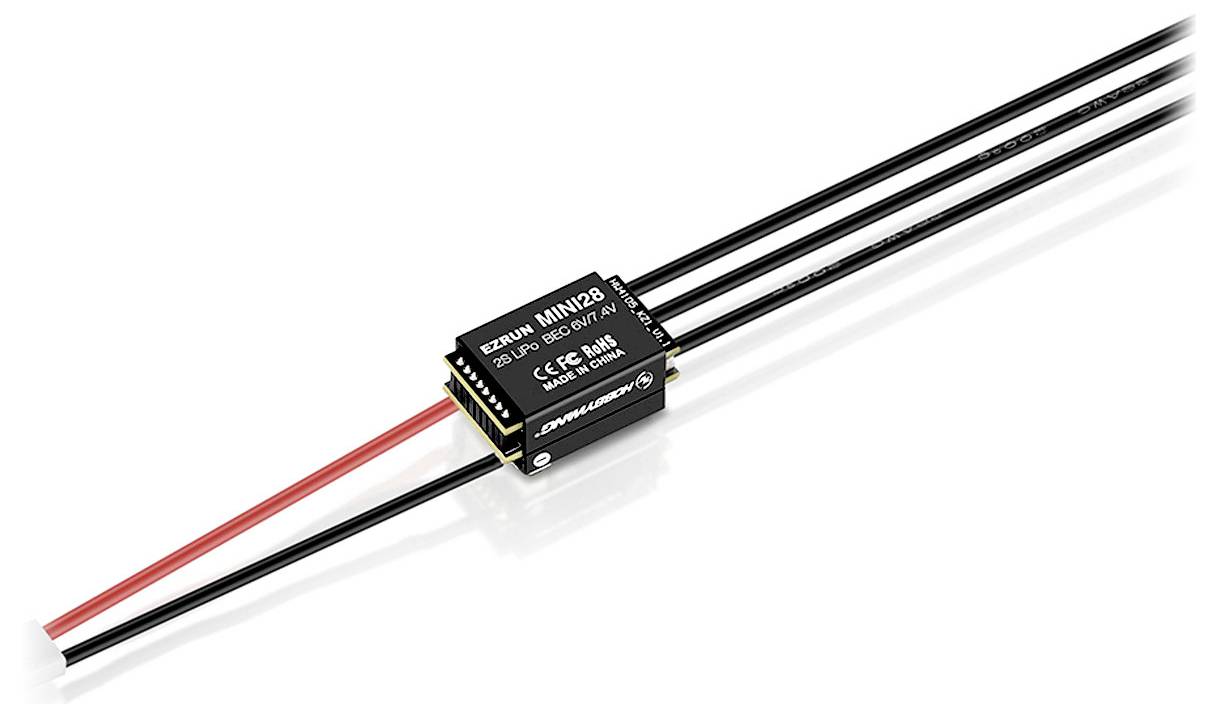

A small electronic component with several connected cables, labelled 'MINI 2D8', is lying on a reflective surface.

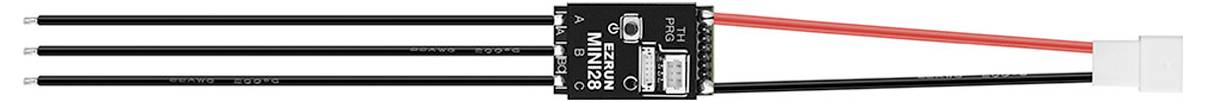

An electronic voltage regulator with three black and one red cable, connected via a white plug on the right-hand side.

1/4

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 91.99 / piece)

€ 91.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Hobbywing Ezrun MINI28 brushless 30 amp, 2s LiPo, BEC 3.5A

Specially developed for use in 1/28-Mini Racing
Small and lightweight controller
Over 25 different parameters
Enormous improvement of the driving feeling
Various built-in protective functions
Compatible with LCD G2 programming box and OTA programming module

Technical specifications

Product type: Model car brushless speed control

Dim: (L x W x H) 22.7 x 14.2 x 11.8 mm

Weight: 5 g

BEC data: 6V / 7.4V (adjustable), 3.5A switch mode

Load (max.): 80 A

Permanent current: 30 A

Motor limit (turns): 1626

Manufacturer part #: 30101300

Width: 14.2 mm

Height: 11.8 mm

Length: 22.7 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3400143 Hobbywing Ezrun MINI28 Model car brushless speed control Load (Amp max.): 80 A Motor limit (turns): 1626

Description

The Ezrun MINI28 controller offers as controller in the small format that WAS man needed for RC-cars in the scale 1:28. With over 25 different adjustable parameters of the MINI28 shows that through it the vehicle can manage numerous situations without any problem. If you like to drive mini and use a brushless motor, then this Hobbywing controller is the ideal supplement in the setup.

General
Driving mode, max. Speed, reverse speed, switch-off voltage, controller overheating protection, BEC voltage, Motor rotation direction

Gas control
Throttle rate, neutral range, initial force of the throttle lever, Coast, PWM drive frequency, Softening value, softening range

Brake control
Max. Hand brake function Braking power, braking rate, braking frequency

Timing
Boost timing, boost timing activation, boost start speed, boost end speed, turbo timing, Turbo delay, turbo boost rate, turbo reduction rate
