Hobbywing QuicRun 1060 T-Stecker Model car brushed speed control Load (Amp max.): 360 A
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 0.98
€ 24.22
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
Highlights & Details

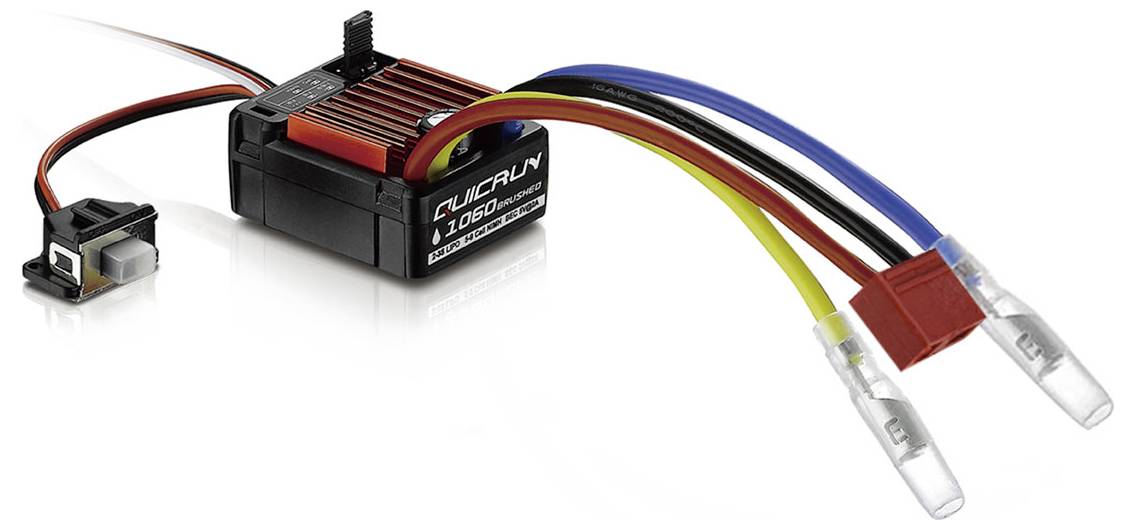

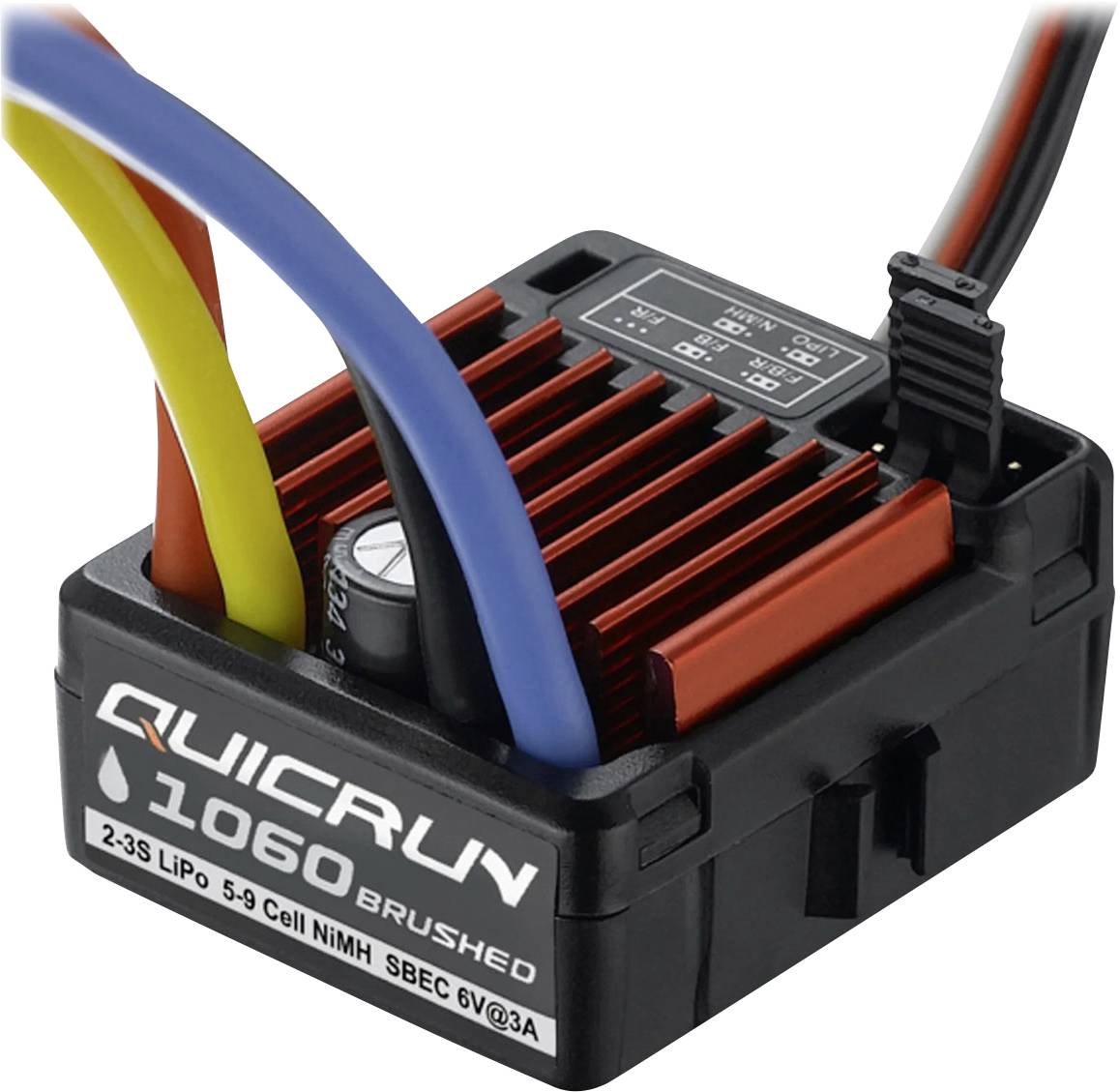

Hobbywing QuickRun 1060 brushed controller T-plug 60A for 1:10
- With modern T-plug connection

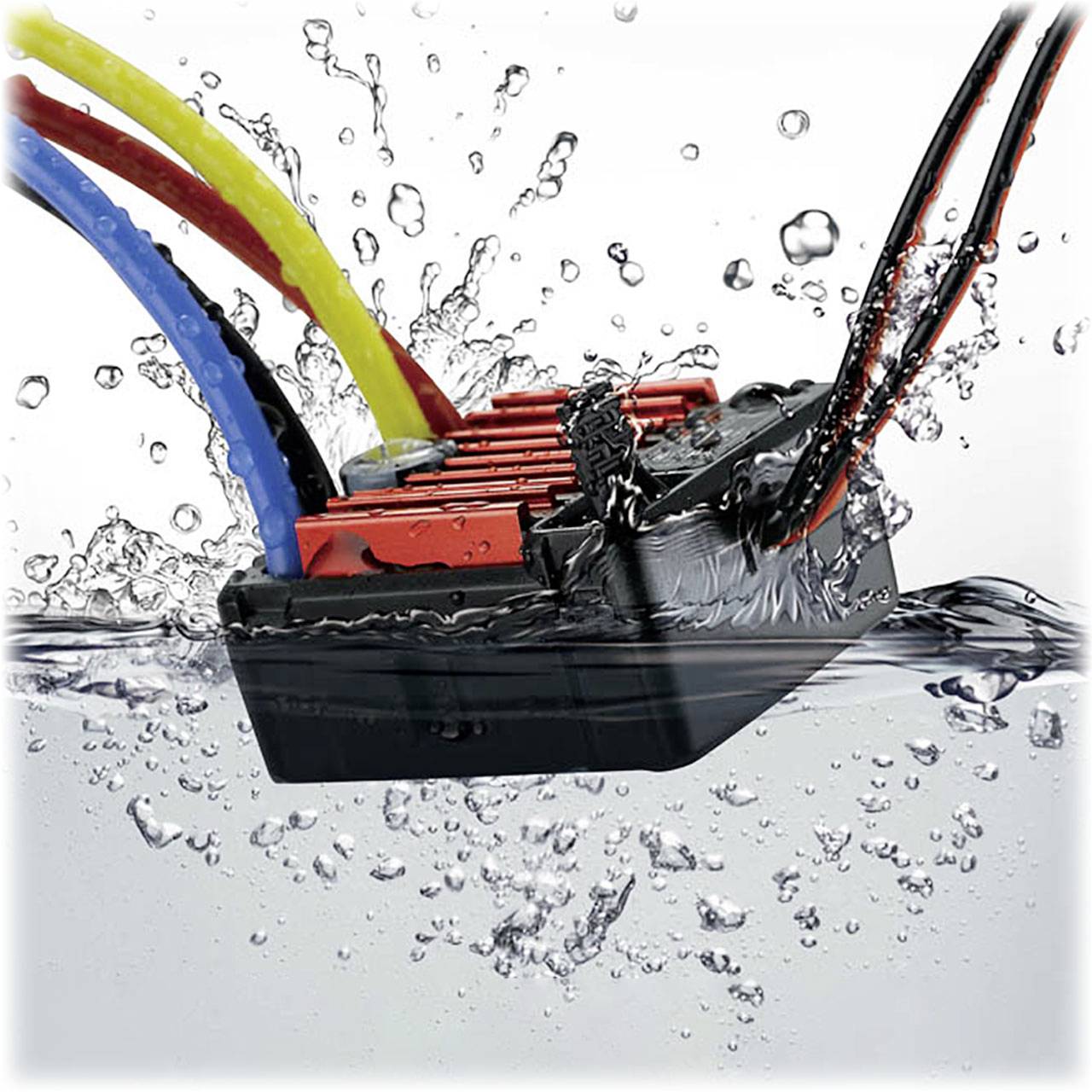

- Water and dust proof for use in any weather and route conditions
- Small size with built-in capacitor module
- Three different driving modes are available
- Good current carrying capacity
- Built-in switch-BEC with high power
- Automatic gas path calibration

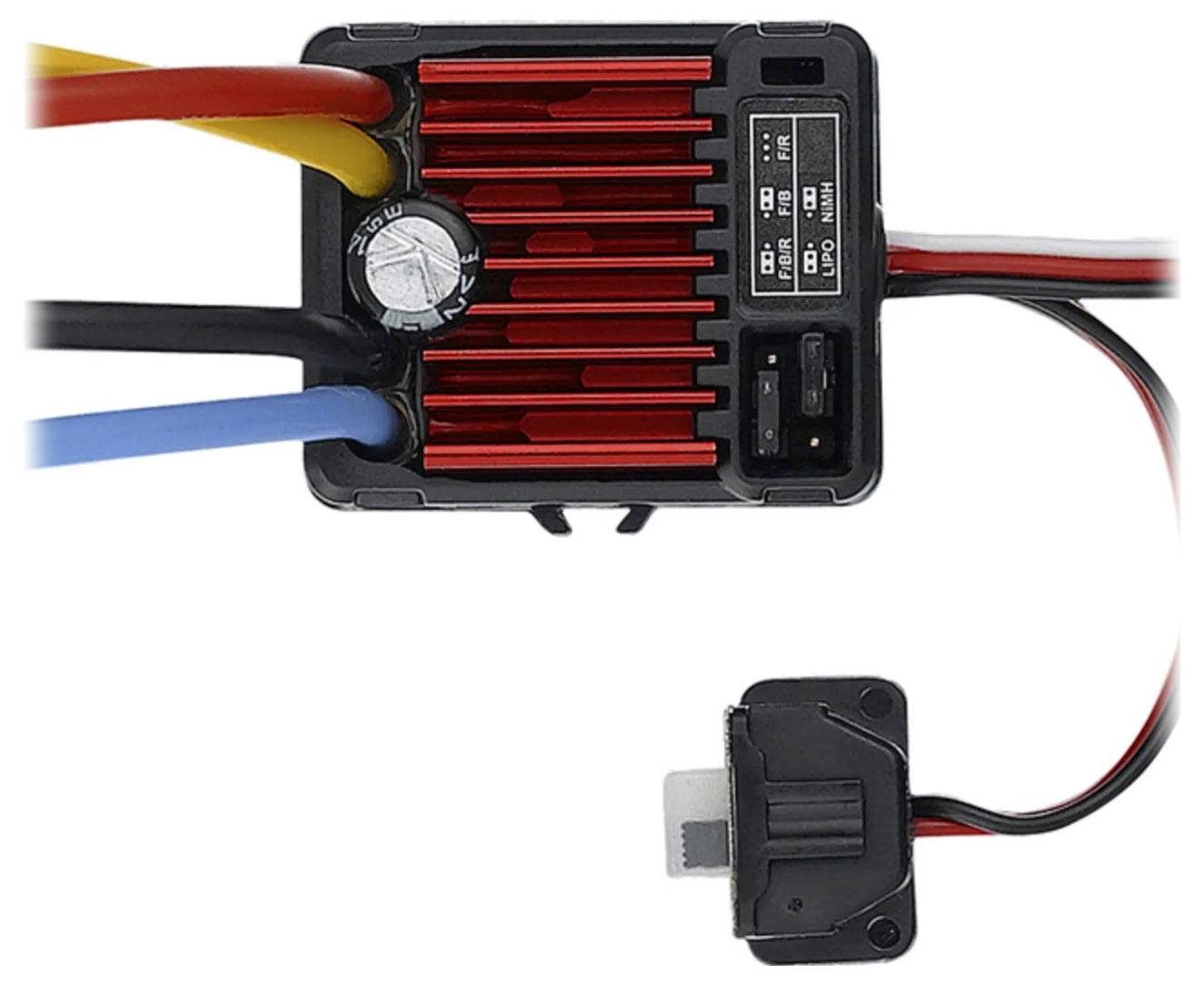

- Simple programming via jumper
- Low voltage protection for rechargeable batteries, thermal overheating protection, gas signal loss protection
Technical specifications
- Input voltage 2-3S Lipo or 5-9 NiMH
- Motor Limit: 2S Lipo or 6 Cells NiMH: 540, 550 Size Motor: >=12T or U/Min < 30000 @7.2V, 3S Lipo or 9 Cells NiMH: 540, 550 Size Motor: >=18T or U/Min < 20000 @7.2V
- Suitable vehicles: Touring car, buggy, short course truck monster, Truggy, Rock Crawler, tank
- Dim
(L x W x H) 36.5 x 32 x 18 mm
- Weight
39 g
- Connector system
T plug
- BEC data
3A/6 V
- Load (max.)
360 A
- Permanent current
60 A
- Manufacturer part #
30120203
- Height
18 mm
- Length
36.5 mm
- Width
32 mm
- Product type
Model car brushed speed control
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400161 Hobbywing QuicRun 1060 T-Stecker Model car brushed speed control Load (Amp max.): 360 A
Description
The Hobbywing QuickRun series includes brushed and brushless drive systems. In the brushless systems there are also sensor-free as well as sensor-based drives, so this series offers a suitable solution for every requirement. The series is also very economical and is aimed primarily at beginners and advanced pilots. It also convinces by the outstanding well-known quality of the Hobbywing products as well as the uncomplicated start-up.
