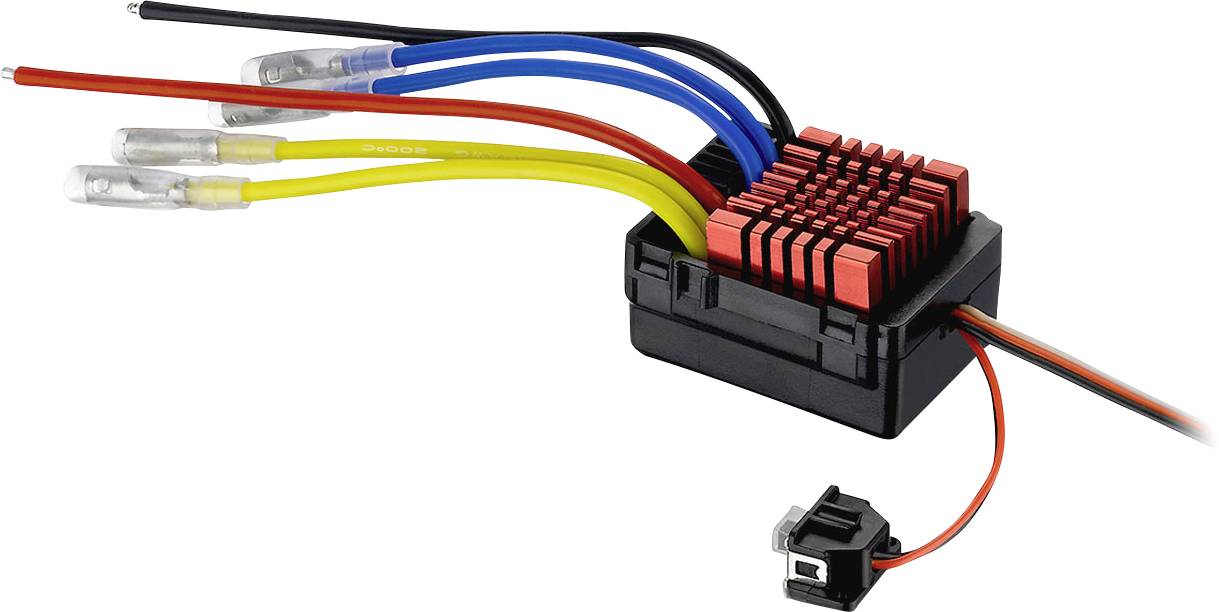

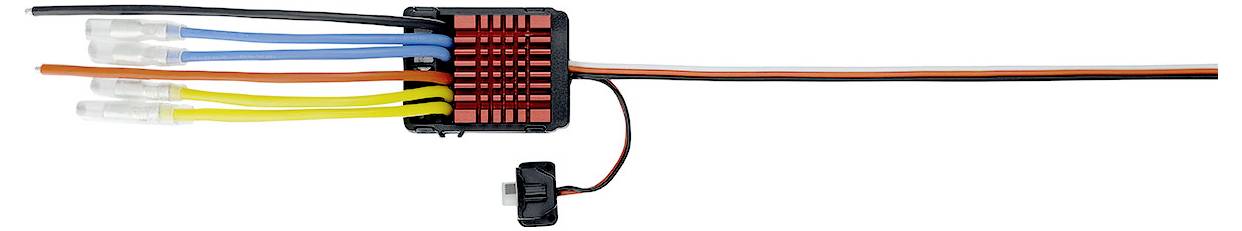

Hobbywing QuicRun 0880 Dual Model car brushless speed control Load (Amp max.): 400 A
EAN:
Part number:
Item no:
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
Highlights & Details
Hobbywing QuickRun 0880 Dual brushed controller 80A for 1:10
- Control of 2 motors simultaneously
- Strong BEC with 6V/4A

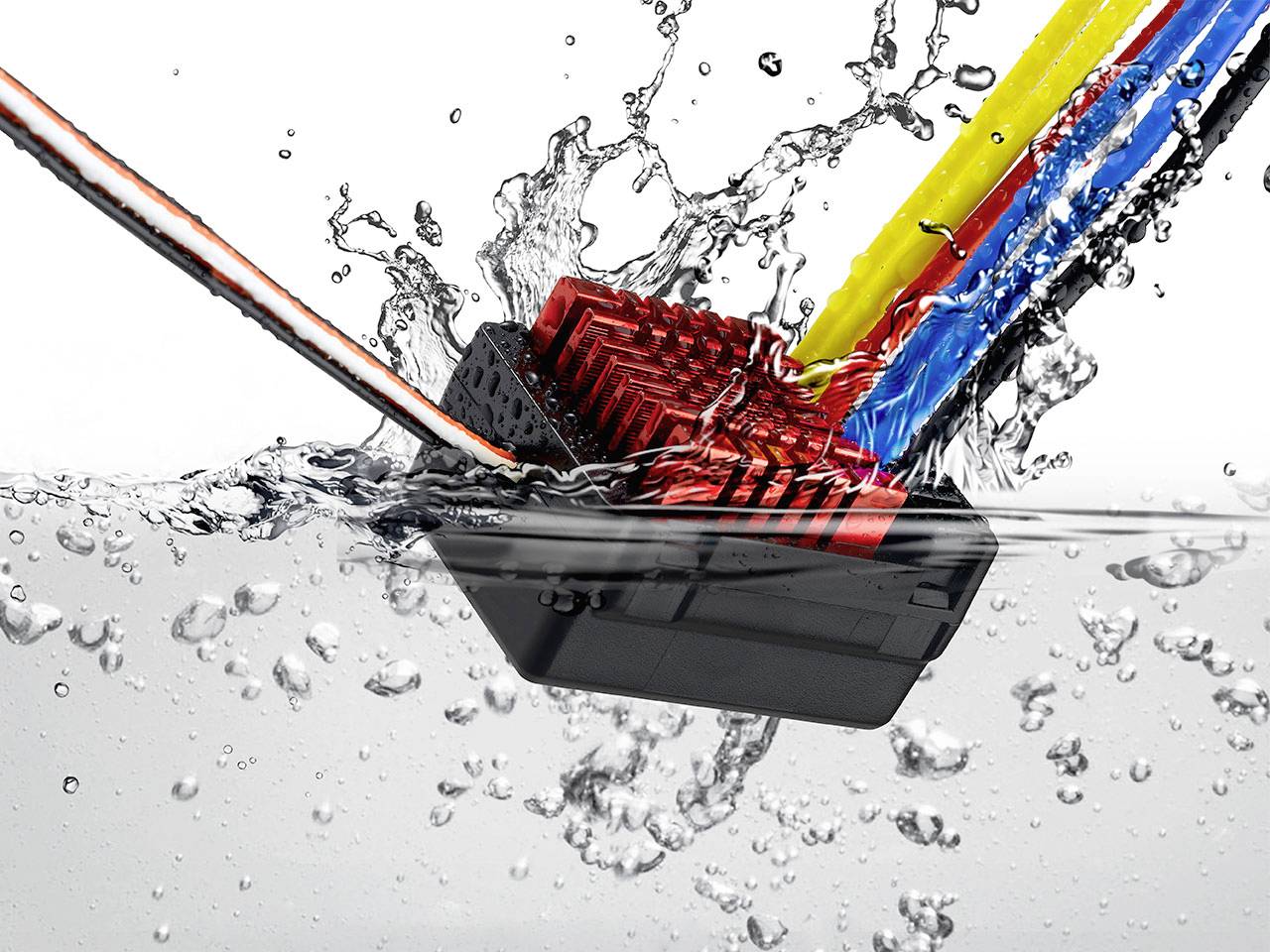

- Waterproof
- 15 menu items for personal controller settings
- PWM frequency can be set
- DEO technology for sensitive and effective control behavior
- Separate programming connection
- Small, light, yet robust
Technical specifications
- Input voltage 2-4s LiPo / 5-12 cells NiMH
- Motor Limit: 2s LiPo, 6s NiMH: > 12T or < 30000 rpm, 3s LiPo, 9s NiMH: > 18T or < 20000 rpm, 4s Lipo, 12s NiMH: > 24T or < 15000 rpm
- Use with 2 engine operation according to motors with smaller turns
- Suitable vehicles: 1/8, 1/10 Rock Crawler
- Dim
(L x W x H) 46 x 35 x 27 mm
- Weight
75 g
- Connector system
4 mm socket
- BEC data
Switch mode: 6V/4 A
- Load (max.)
400 A
- Permanent current
80 A
- Manufacturer part #
30120301
- Height
27 mm
- Length
46 mm
- Width
35 mm
- Product type
Model car brushless speed control
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400162 Hobbywing QuicRun 0880 Dual Model car brushless speed control Load (Amp max.): 400 A
Description
The QuickRun 0880 Dual brushed controller has two parallel outputs to which one can connect two brushed motors, which can be controlled synchronously.
For the tough terrain use the controller is protected against water and dust in the best way. Adjustable PWM frequency, DEO free-wheel technology guarantees a sensitive control behavior.
With the optionally available programming card (HW30501003) there are 15 menus available to the pilot to choose from 80 different settings for optimal controller adjustment.
This text is machine translated.
For the tough terrain use the controller is protected against water and dust in the best way. Adjustable PWM frequency, DEO free-wheel technology guarantees a sensitive control behavior.
With the optionally available programming card (HW30501003) there are 15 menus available to the pilot to choose from 80 different settings for optimal controller adjustment.
This text is machine translated.
