Hobbywing QuicRun WP16BL30 G2 Brushless Regler Model car brushless speed control Load (Amp max.): 100 A
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.08
€ 26.64
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Only 6 Piece(s) available
Highlights & Details

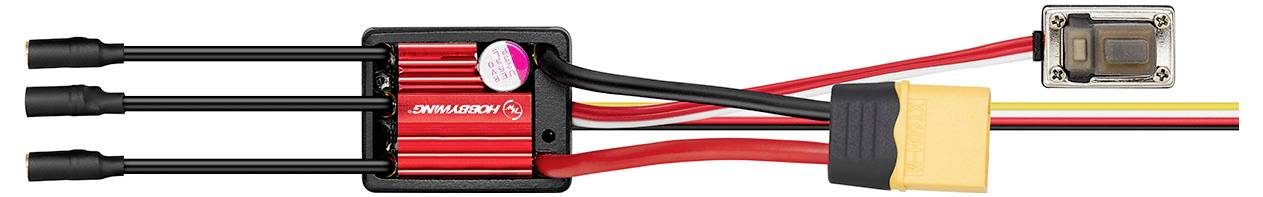

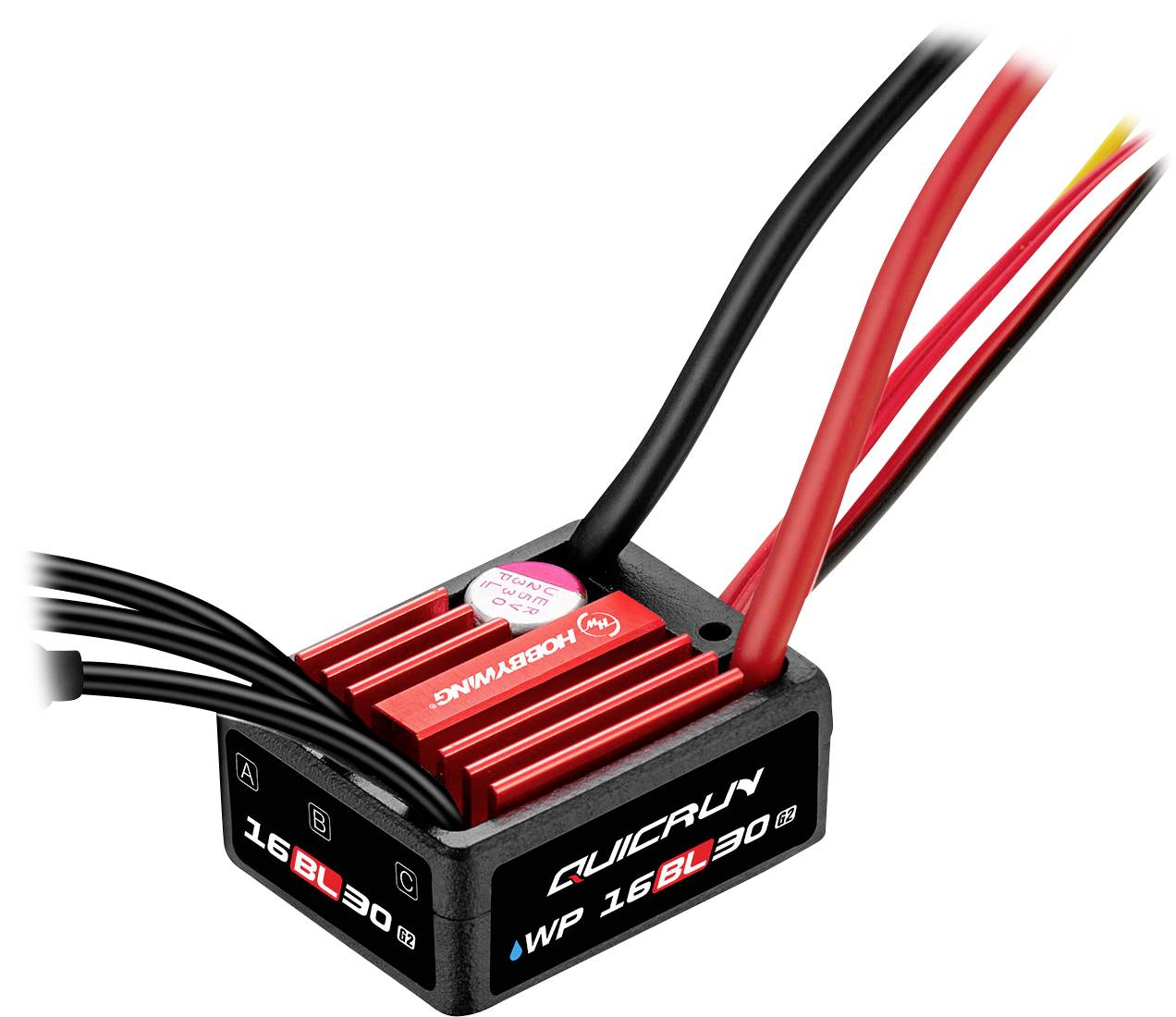

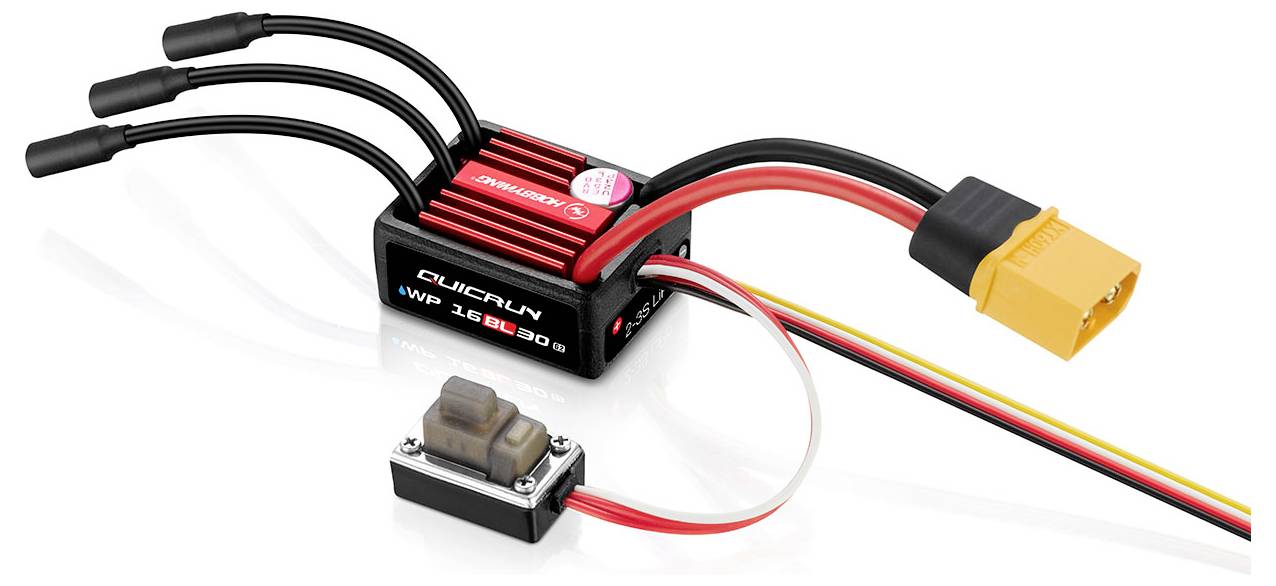

QuickRun WP16BL30 G2 brushless controller
- With modern T-plug connection
- Water and dust proof for use in any weather and route conditions
- Small size with built-in capacitor module
- Three different driving modes are available
- Good current carrying capacity
- Built-in switch-BEC with high power
- Automatic gas path calibration
- Simple programming via jumper
- Low voltage protection for rechargeable batteries, thermal overheating protection, gas signal loss protection
Technical specifications
- Peak current: 100A;
- Recommended scale: 1:16 & 1:18
- Suitable motors: QuickRun 2030 G2 / 2435 G3
- Dim
(L x W x H) 33.4 x 26.8 x 15.1 mm
- Weight
38.5 g
- Connector system
T plug
Tamiya plug
4 mm socket
- BEC data
2 A
- Load (max.)
100 A
- Permanent current
30 A
- Manufacturer part #
HW30110001
- Height
15.1 mm
- Length
33.4 mm
- Width
26.8 mm
- Model
QUICKRUN WP 16BL30 G2
- No. of LiPo cells
2-3S
- Product type
Model car brushless speed control
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3466234 Hobbywing QuicRun WP16BL30 G2 Brushless Regler Model car brushless speed control Load (Amp max.): 100 A
Description
The Hobbywing QuickRun series includes brushed and brushless drive systems. In the brushless systems there are also sensor-free as well as sensor-based drives, so this series offers a suitable solution for every requirement. The series is also very economical and is aimed primarily at beginners and advanced pilots. It also convinces by the outstanding well-known quality of the Hobbywing products as well as the uncomplicated start-up.
