Absima V2 All in one Model car brushed speed control
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.52
3
4% = € 0.91
€ 22.61
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 23.52 / piece)
€ 23.52
plus VAT.
14-day return policy included
Highlights & Details

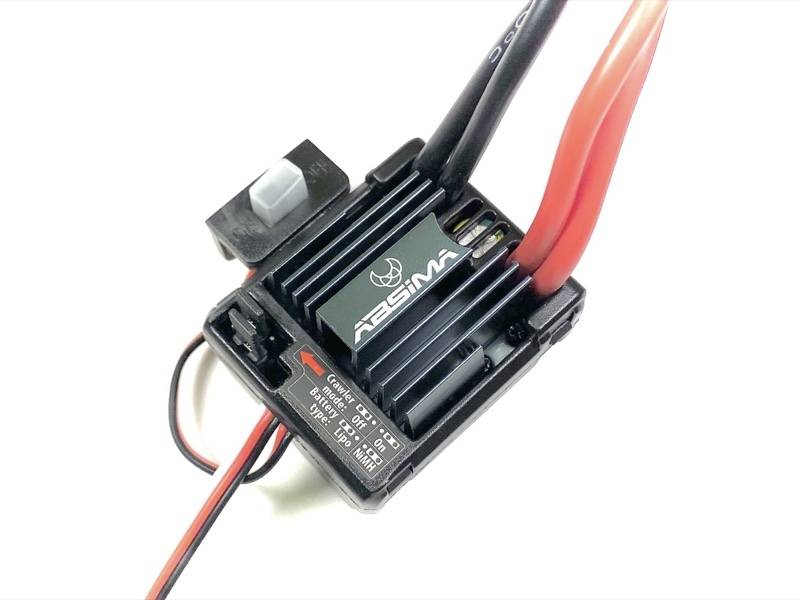

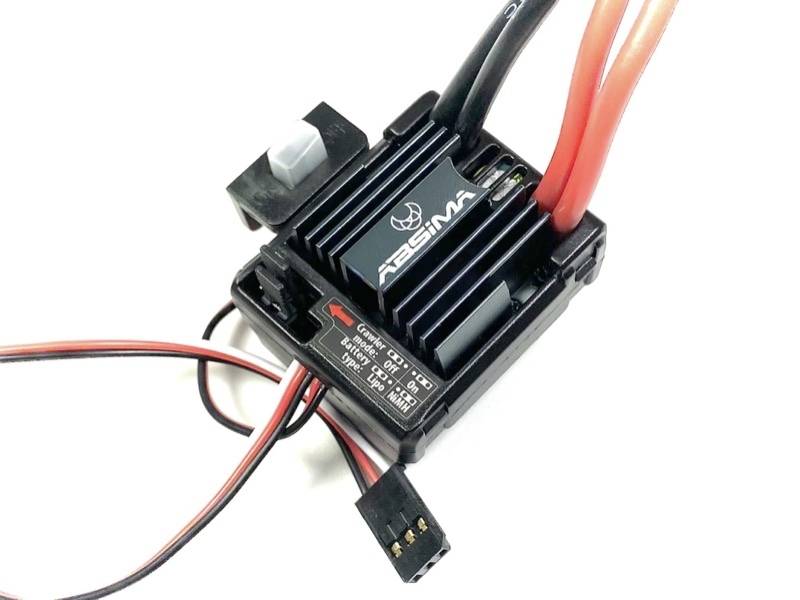

1:10 Brushed V2 "All in one" Common & Crawler Regulator 80A brushed / waterproof
- ESC suitable for all vehicle types (Crawler, off-road, on-road, boat)
- Programmable via jumper and separately available programming card (Art. 2110061)
- 2-3S LiPo capable; continuous load: 80A
Technical specifications
- Continuous/short-term load: 80A/320A
- Resistance: 0.0014ohms; Motor type: Brushed standard motors
- Battery:2-3S LiPo / 5-9 cells NiMH
- Motor Limit 2S LiPo/5-6 cells NiMH: 11T or 25,000U/Min
- Motor Limit 3S LiPo/7-9 cells NiMH: ≥ 18T or 17.000U/Min

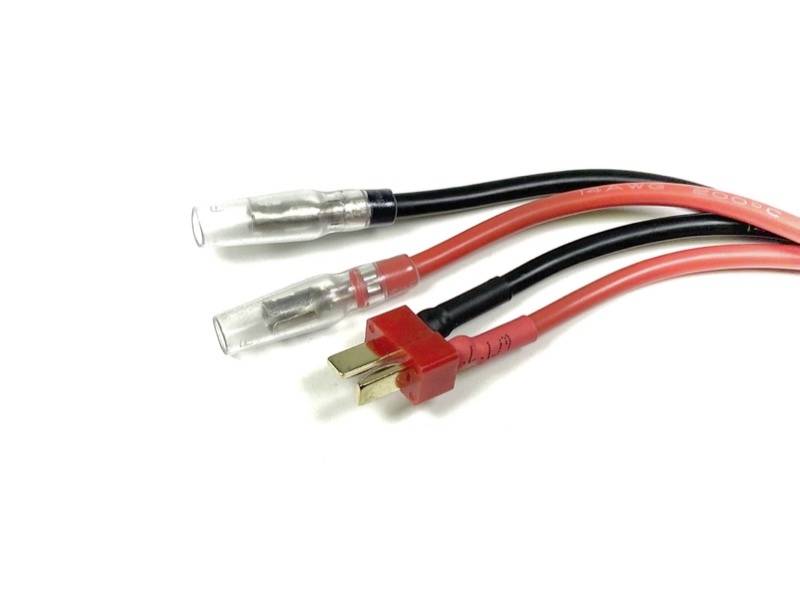

- Cable lengths: BEC: 180mm / motor: 200mm / power: 200mm
- BEC 5 A/7 V
- Product type
Model car brushed speed control
- Dim
(L x W x H) 41.5 x 35 x 29.5 mm
- Weight
63.4 g
- BEC data
7.4 V
- Manufacturer part #
2100004V2
- Width
35 mm
- Height
29.5 mm
- Length
41.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3089105 Absima V2 All in one Model car brushed speed control
Description
MORE Power, MORE FEATURES, MORE FUN! That is the maxim of our new, programmable "ALL-IN-one" BRUSHED drive controller, which imparts its power to both the 1:10 RC Crawler and every Race Car. The basic settings for the vehicle and battery type are made via the "Jumper" on the speed controller. In addition, a programming card is available, which can be used for even more settings.
This text is machine translated.
This text is machine translated.
Features
- Water and dust proof - suitable for all weather conditions (clean and dry the ESC after each use to avoid corrosion)
- Developed especially for BRUSHED RC cars and crawlers for excellent acceleration and sensitive driving experience
- Low internal resistance and excellent heat dissipation
- Several protection functions such as low voltage cut-off for LiPo and NiMH rechargeable batteries, ESC overheating protection and protection from signal loss
- Easy to program with jumper and programming card in pocket format (separately available - art. 2110061)
Scope of delivery
- 1:10 Brushed V2 speed controller

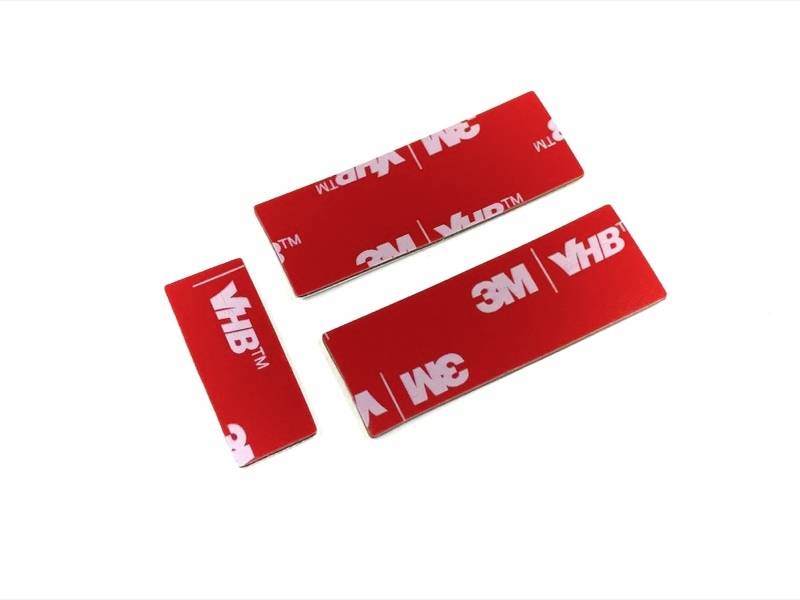

- Adhesive strips
- User manual
Hints
The programmable features via the programming card are: Initial start force, low V cut-off (low voltage protection), crawler setup - initial drag brake (motor brake), Standard setup - Max brake force (brake force), Max reverse force (reverse force), Start mode (punch)
