Hobbywing QuicRun WP10BL60 G2 Model car brushless speed control Load (Amp max.): 360 A Motor limit (turns): 3660
EAN:
Part number:
Item no:
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
Highlights & Details

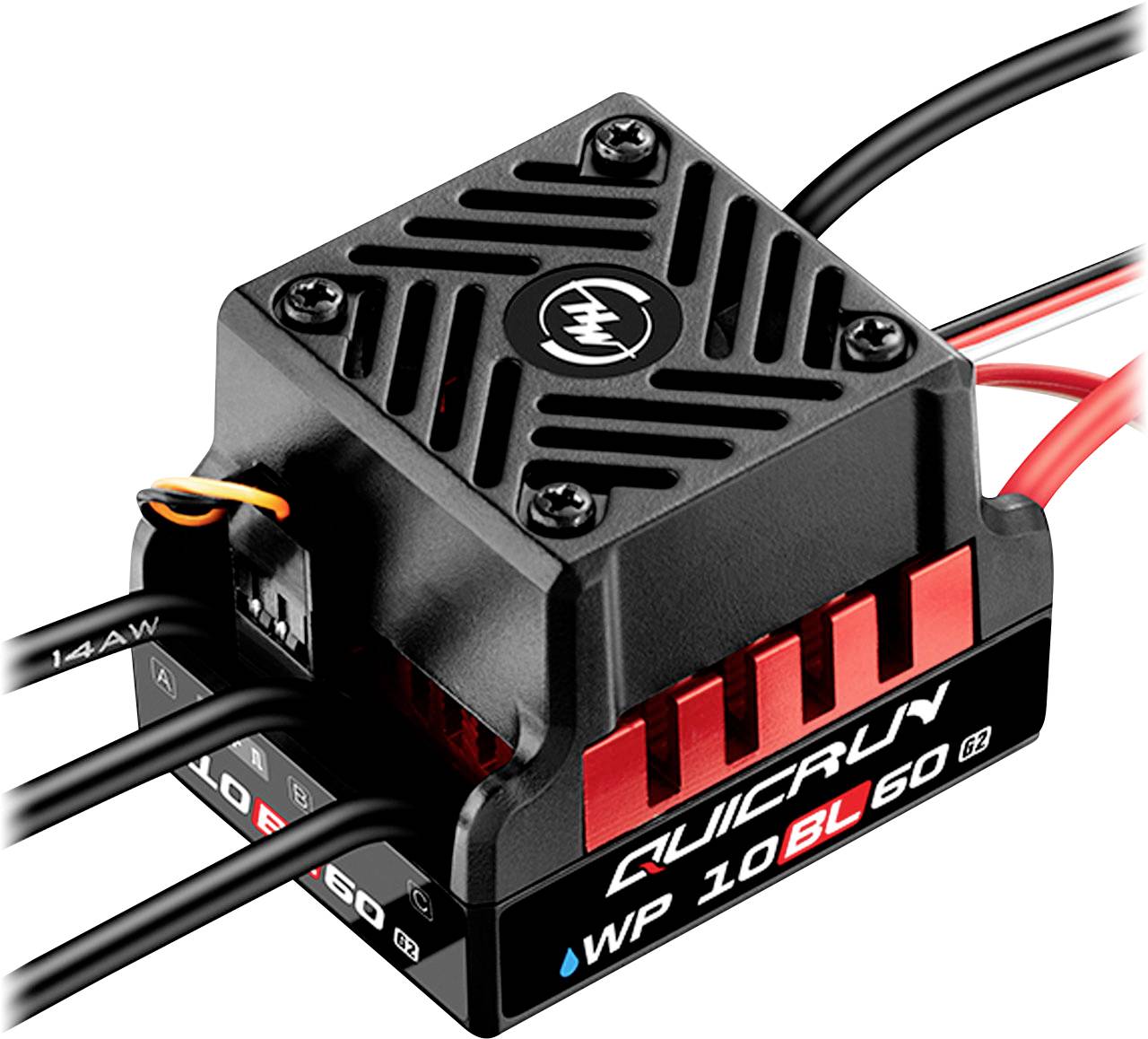

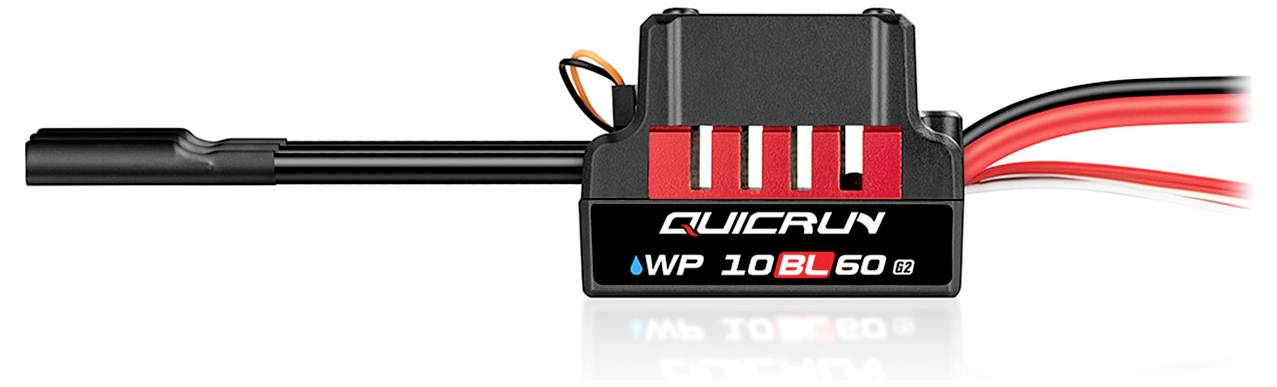

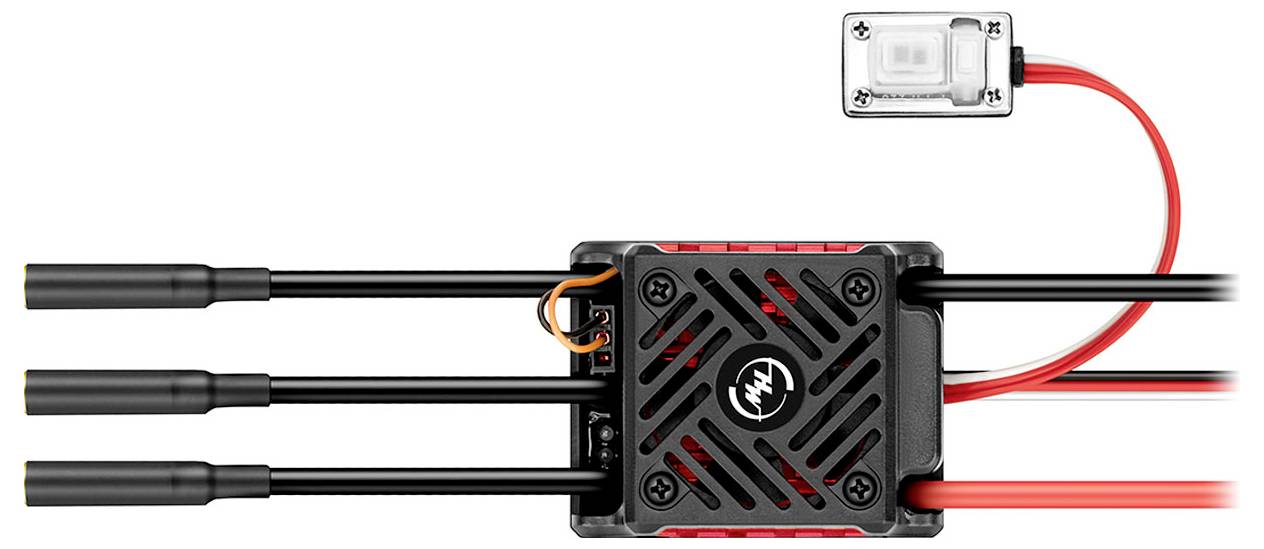

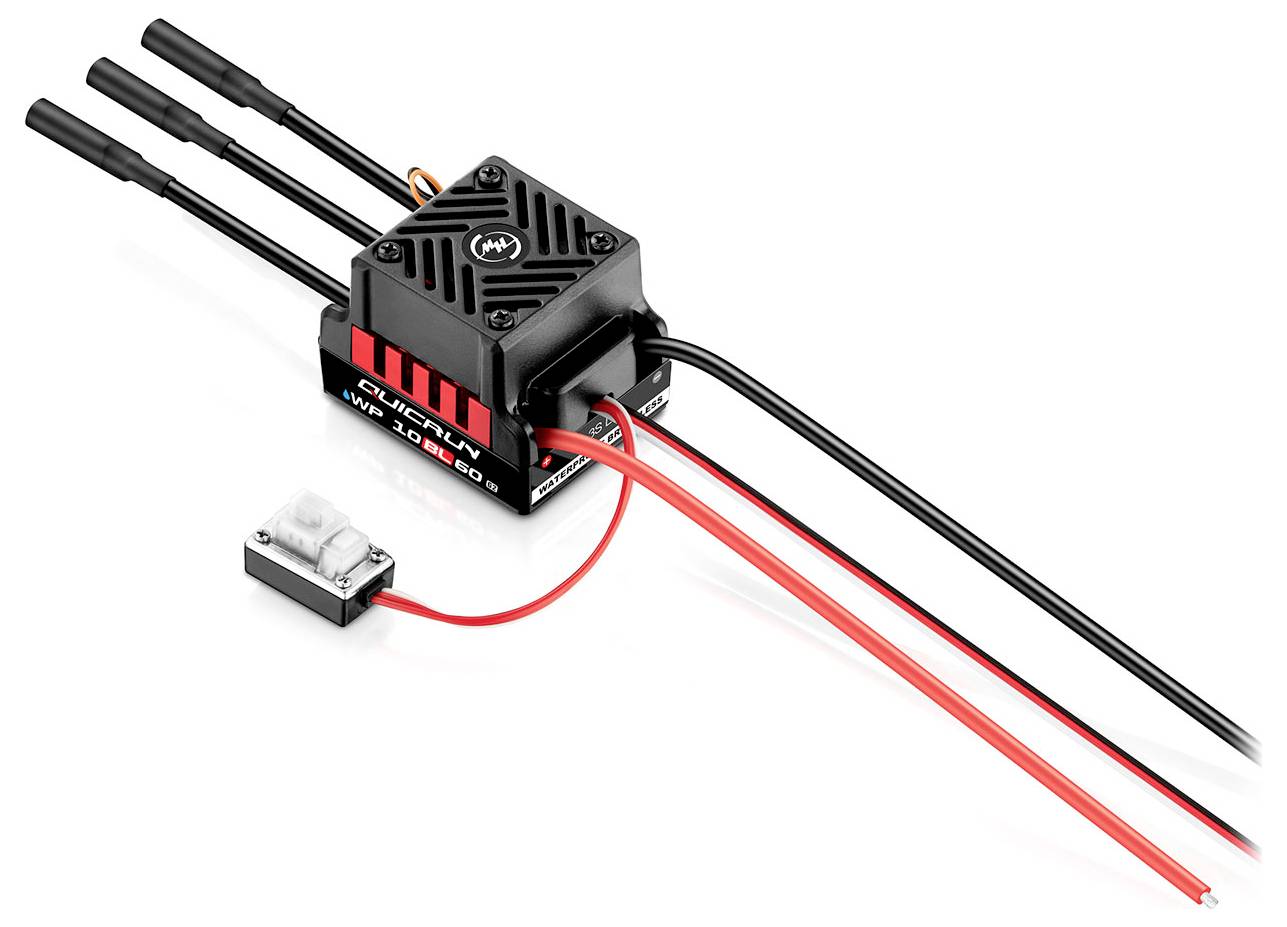

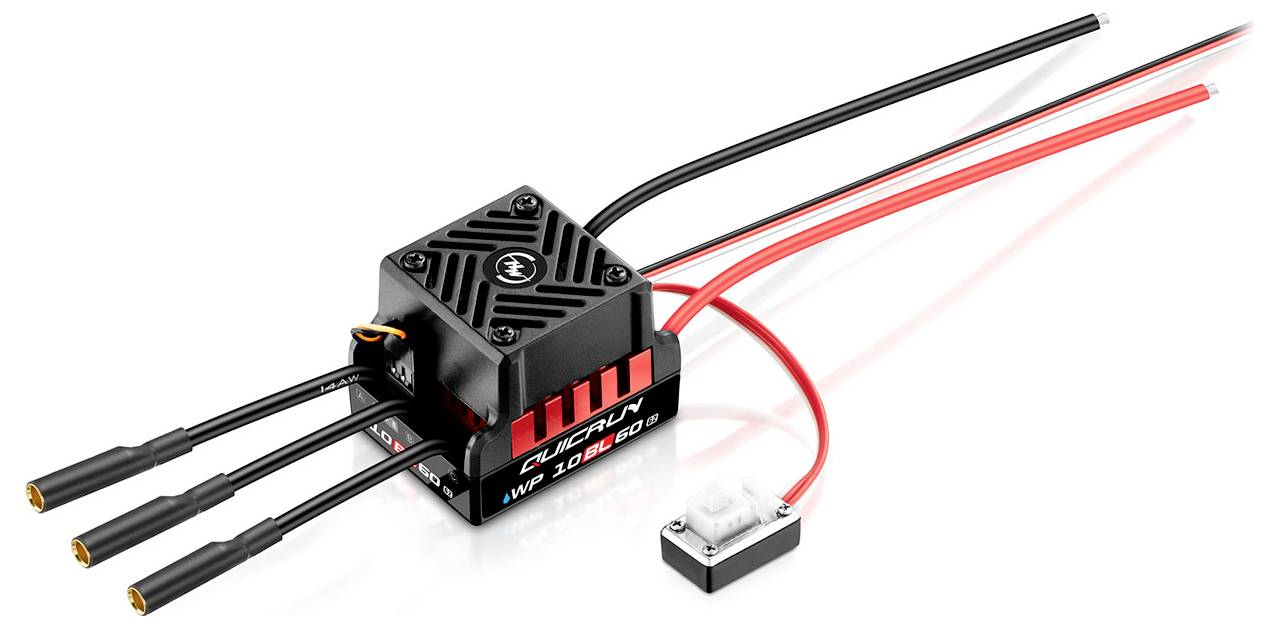

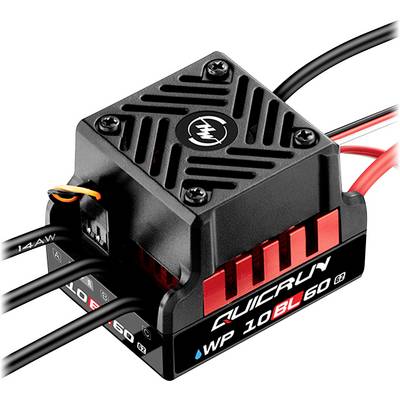

Hobbywing QuickRun WP10BL60 G2 brushless regulator 60A 2-3s for 1:10
- Equipped with modern overheating protection
- Top performance at a low price
- More compact than the previous version and suitable for a variety of chassis
- Ideal for many application areas and competitions
- Programmable via LCD programming box Pro, LED programming box and via the SET button
- Water and dust proof according to IP67 standard
- Various protective functions: Overheating protection, undervoltage switch-off
Technical specifications
- Input voltage 2-3S LiPo
- Motor limit 2S: <= 6000kV, 3S: <= 3500kV, 3652/3660 engine
- Fan via the BEC
- Programming: SET button, LED programming card, LCD Programmer Pro
- Suitable vehicles: 1/10 on-road, buggy, short course truck
- Dim
(L x W x H) 46 x 36.5 x 34.3 mm
- Weight
87 g
- Connector system
4 mm socket
- BEC data
6V / 3A (switch mode)
- Load (max.)
360 A
- Permanent current
60 A
- Motor limit (turns)
3660
- Manufacturer part #
30107300
- Height
34.3 mm
- Length
46 mm
- Width
36.5 mm
- Product type
Model car brushless speed control
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400148 Hobbywing QuicRun WP10BL60 G2 Model car brushless speed control Load (Amp max.): 360 A Motor limit (turns): 3660
Description
The 2nd. Generation of the Quickrun WP10BL60 regulator represents a classical, solid brushless solution for 1/10 on-road vehicles, buggies and short-course trucks. In comparison to the previous model, small but thoroughly modern changes were made. Ahead of all, the G2-controller is now more resistant to large heat development thanks to intelligent Freewheeling technology and also possesses an overheating protection for the condensers. This protection effectively prevents the integrated capacitors from bursting due to high temperatures, and WAS can lead to total failure with conventional regulators without protection. The air slots in the design of the controller also provide efficient cooling, while each phase further supports the cooling effect via a copper heat protection strip. So that one as driver can remain cool in every still dicey situation.
The QuickRun series from Hobbywing offers a cost-effective alternative for all drivers, who simply want to achieve more with their setup - whether with brushless motors or not. It is aimed primarily at beginners and advanced pilots and impresses through the outstanding quality of the Hobbywing products as well as through the uncomplicated start-up.
This text is machine translated.
The QuickRun series from Hobbywing offers a cost-effective alternative for all drivers, who simply want to achieve more with their setup - whether with brushless motors or not. It is aimed primarily at beginners and advanced pilots and impresses through the outstanding quality of the Hobbywing products as well as through the uncomplicated start-up.
This text is machine translated.
