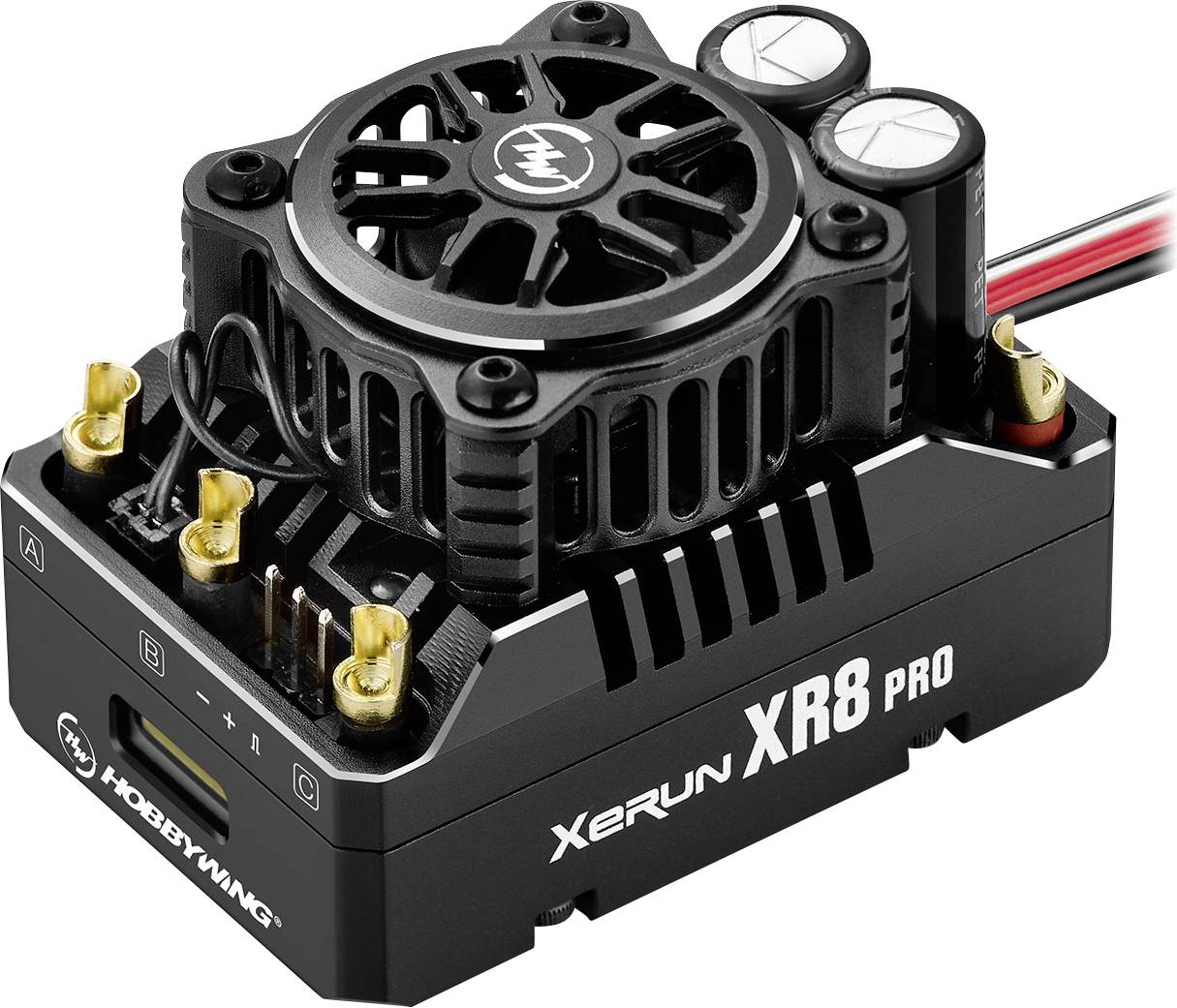

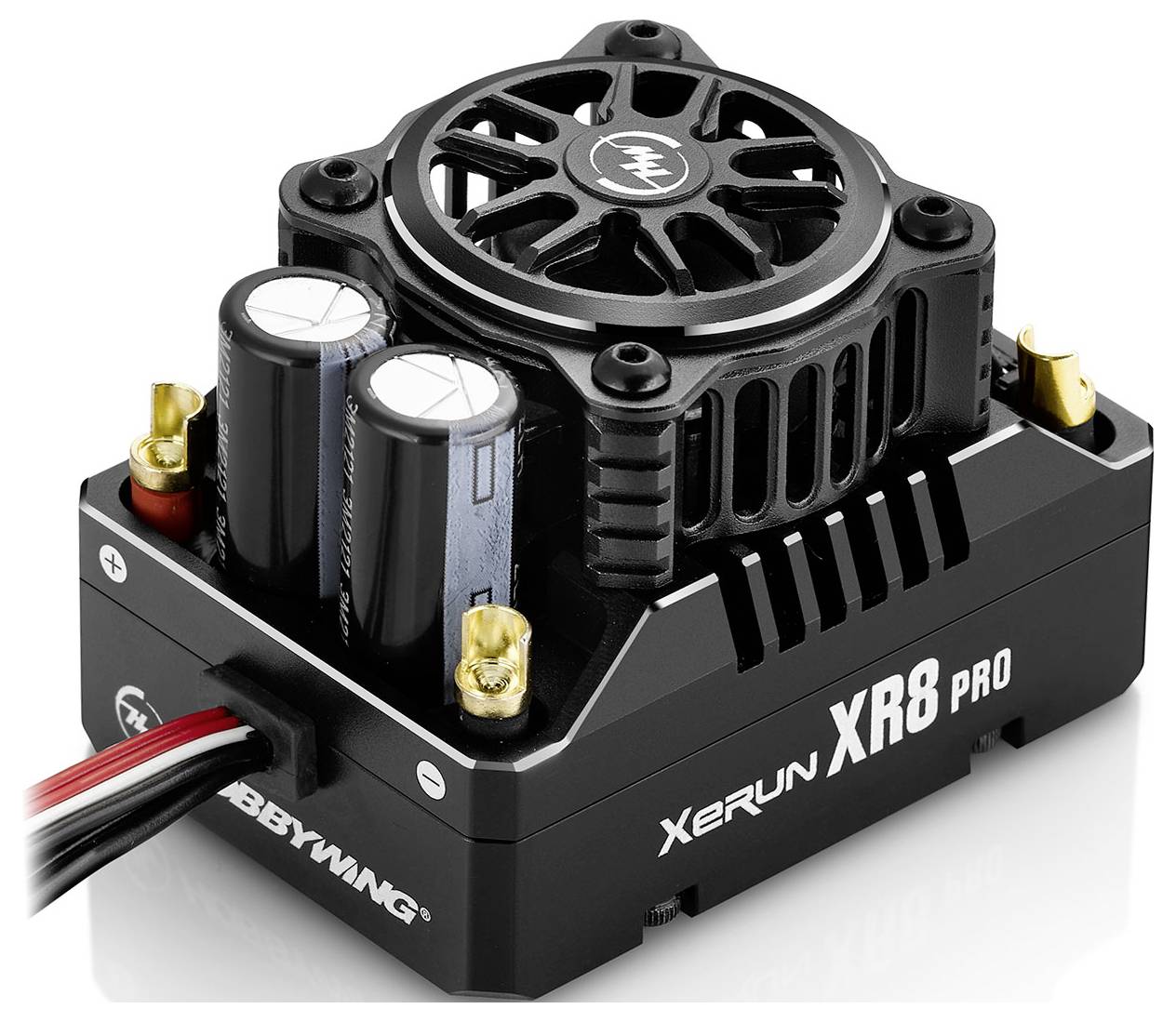

Hobbywing Xerun XR8 Pro G3 Model car brushless speed control Load (Amp max.): 1080 A
EAN:
Part number:
Item no:
Number
Total (€ 142.85 / piece)
€ 142.85
plus VAT.
Technical specifications
- Input voltage 2S-4S LiPo
- Programming: LCD programming box G2, OTA programming module, programming interface
- 1/8 off-road, on-road, racing, 1/10 short course, monster truck
- Dim
(L x W x H) 55 x 37 x 39 mm
- Weight
103 g
- BEC data
6V/7.4V with 6A (Switch-Mode)
- Load (max.)
1080 A
- Permanent current
200 A
- Manufacturer part #
30113400
- Height
39 mm
- Length
55 mm
- Width
37 mm
- Product type
Model car brushless speed control
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400159 Hobbywing Xerun XR8 Pro G3 Model car brushless speed control Load (Amp max.): 1080 A
Description
The XR8 Pro G3 controller sets new standards. 15% smaller, more powerful and with even lower temperature generation is the third generation of this series as compared to the previous generation. And designed for use with 2-4S LiPos batteries are the optimized cable management as well as the elegant appearance examples for high-quality processing. So if you place emphasis on a strong controller, which consumes very little space, you have found your new favorites with the XR8 Pro G3.
In terms of functionality, an extended BEC of 6 or 7.4V is scored. That's because even more servos can be addressed than with usual controllers. The increased capacity of the capacitors is also a real improvement. And if you place a great deal of emphasis on performance measurement, you will of course also get your money's worth fully. If the controller is linked to the Hobbywing application, the collected data can not only be evaluated, but also viewed live.
This text is machine translated.
In terms of functionality, an extended BEC of 6 or 7.4V is scored. That's because even more servos can be addressed than with usual controllers. The increased capacity of the capacitors is also a real improvement. And if you place a great deal of emphasis on performance measurement, you will of course also get your money's worth fully. If the controller is linked to the Hobbywing application, the collected data can not only be evaluated, but also viewed live.
This text is machine translated.
Features
- Over 30 different setting parameters
- 3 preset settings profiles for 1/8 Racing (e.g. Zero Timing/Blinky Mode, 1/8 Off-Road Racing, 1/8 On-Road Racing)
- Including Dual-brake mode for switching between the normal brake mode and the disc brake mode
- On average 15°C cooler working cable under full load than the XR8 Pro G2
- Super BEC with max. 12A and 6V or 7.4V for using different servos
- Internal protection against incorrect connection of the rechargeable battery
- Thermal protection of the capacitors to prevent explosions
- Simple programming without cables is possible with the OTA programming module, the LCD programming box or a Smartphone
- Evaluate the data with the associated APP offline and in real time
