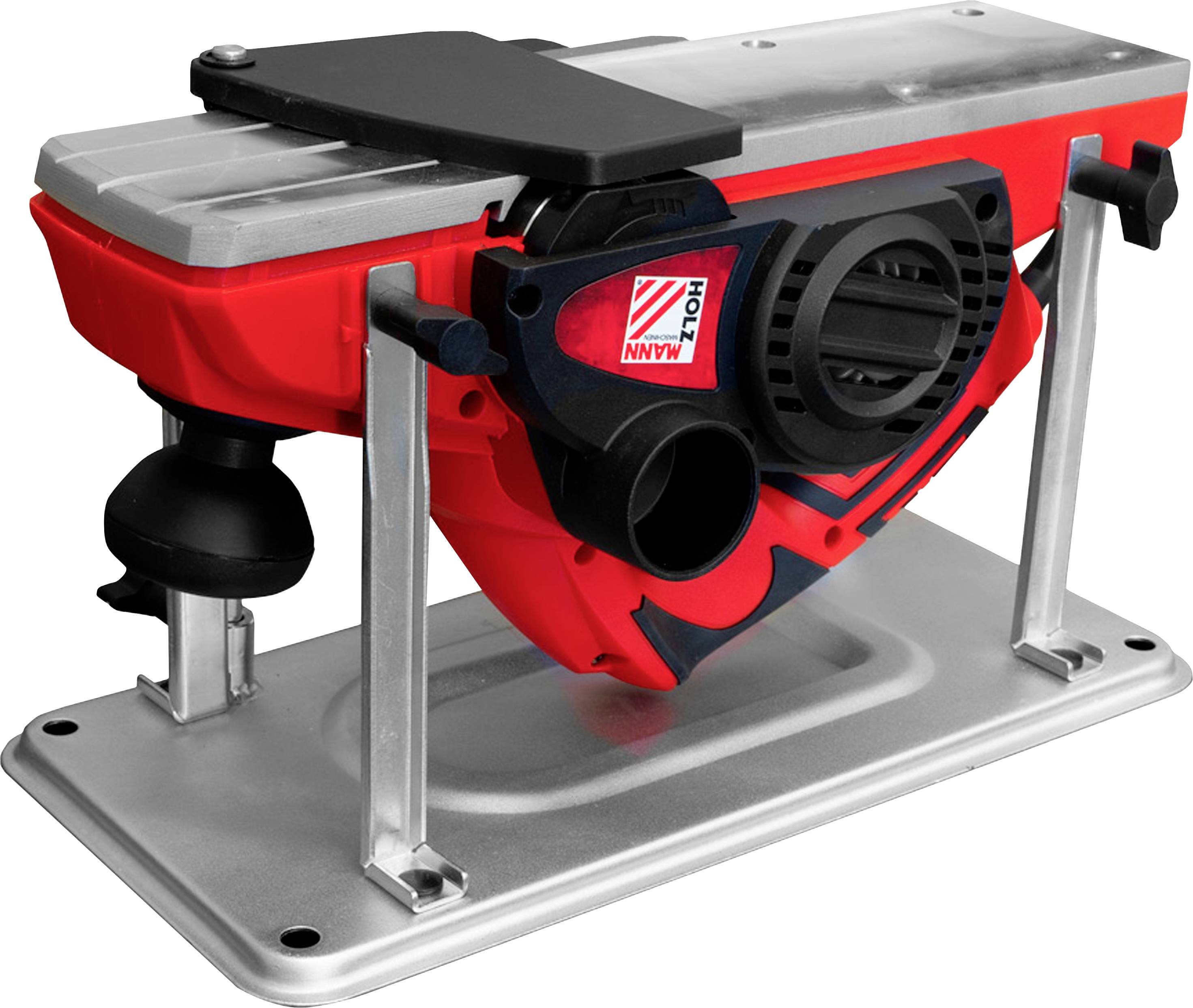

Holzmann Maschinen EHH110_230V Power planer Plane width: 11 cm 1200 W 230 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 77.30 / piece)
€ 77.30
plus VAT.
Highlights & Details
Holzmann 1200W Electric planer Hand planer Hand planer Power planer 110mm EHH110 230V
- Electrical hand plane with 110 mm plane width
- V-groove for easy attachment
- Feeder table 104 x 100 mm; output table 214 x 100 mm
- max. Fold depth 14 mm
- High plane shaft rotation speed allows perfect finish
- Plane depth adjustment via hand wheel 0-3mm
- Extensive accessories
Technical specifications
- Protection class: 2
- Max. Dressing Chip removal in mm: 3
- Power rating S1 in W:1200
- Voltage 230V/50Hz
- Plane shaft speed in min-1: 16000
- Number of plane blades 2
- Sound power level in dB(A): 96
- Sound pressure level in dB(A): 85
- Vibration handle in m/s: 5.71
1200 W
- Voltage
230 V
- Plane width
11 cm
- Electrical connector
35 mm
- Operating voltage
230 V
- Weight
4.4 kg
- Idle speed
16000 U/min
- UKCA
yes
- Product type
Power planer
Documents & Downloads
Datasheet
Datasheet 2839855 Holzmann Maschinen EHH110_230V Power planer Plane width: 11 cm 1200 W 230 V
User & Safety Instructions
User & Safety Instructions 2839855 Holzmann Maschinen EHH110_230V Power planer Plane width: 11 cm 1200 W 230 V
Description
The electric planer EHH110_230V is a powerful hand planer for applications up to a plane depth of 3 mm. With 1200 watt and 16 000 revolutions per minute it efficiently moves wooden surfaces to the same height and enables the demanding home worker a precise work.
This text is machine translated.
This text is machine translated.
Features
- V-groove for easy attachmentFeeder table 104 x 100 mmTray 214 x 100 mmMax. Fold depth 14 mmHigh shaft rotation speed allows perfect finishPlane depth adjustment via hand wheel 0-3 mm
Scope of delivery
- Parallel guideFold depth stop2x plane blades (110x5.7x1.2 mm)Dust bagExtraction reduction ø 35-32Frame and shaft cover
