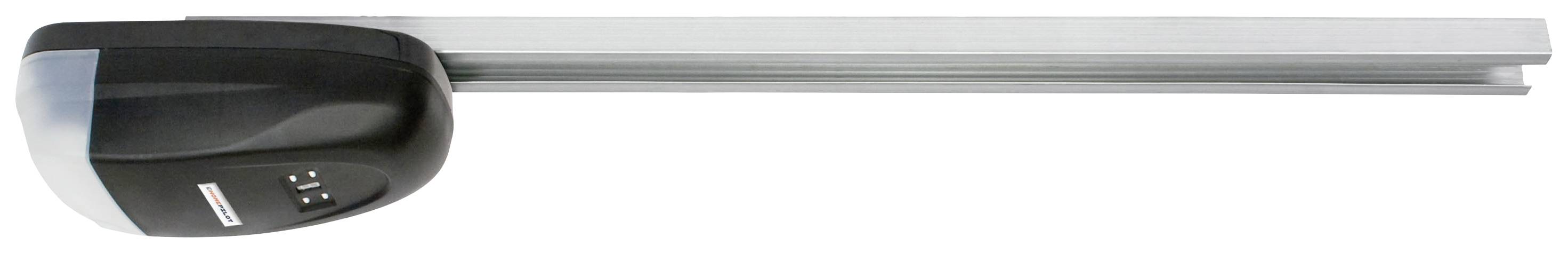

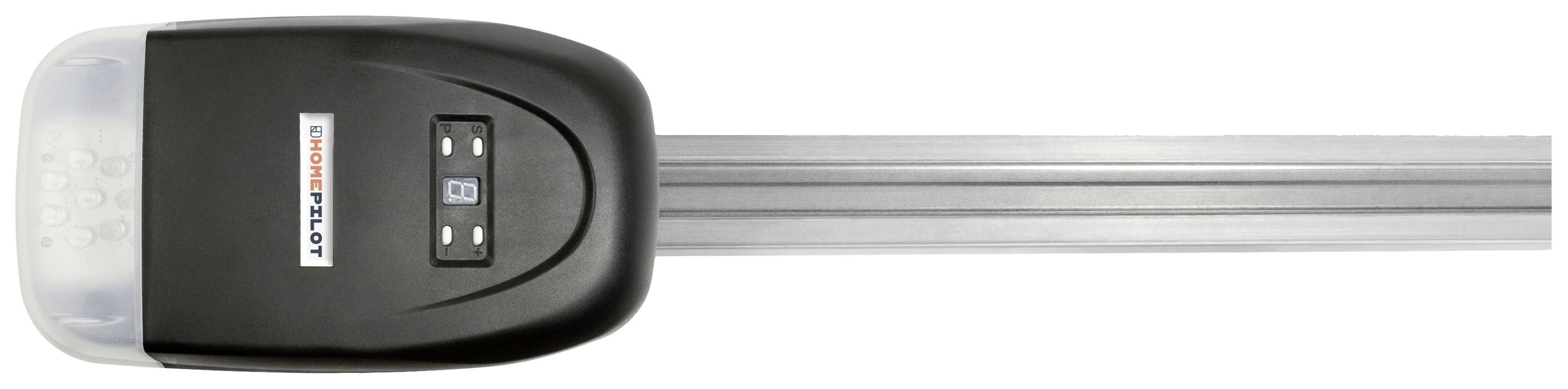

HOMEPILOT classic 16701001 Garage door opener
EAN:
Part number:
Item no:
Number
Total (€ 205.87 / piece)
€ 205.87
plus VAT.
Highlights & Details
HOMEPILOT garage door motor classic
- Suitable for almost all swing and sectional doors up to 10.5 m² (max. Door height 2.1 m)Simple installation and start-up through self-learning end positionsObstacle detection with reverse function ensures safety
Technical specifications
- Power supply voltage 230 V AC/50 HzMotor type 24 V (DC) direct currentTraction: Max. 700 NTorchlight speed 11 cm/s.Protection class: IITransmission frequency 433 MHz Rolling CodeOperation: At -20 °C to +40 °C.Max. Gate size: 10.5 m²Minimum camber height 6 cmTotal length 3140 mm.Length of guide rail: 3020 mmMax. Lifting height 2275 mmMax. Door height 2125 mm
- Traction (max.) (details)
700 N
- Product type
Garage door opener
n.rel.
- Operating voltage
230 V
- Hub
Not required
- Frequency
433 MHz
- Features
incl. 2 remote controls
- Length
3140 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2827238 HOMEPILOT classic 16701001 Garage door opener
Warranty Terms
Warranty Terms 2827238 HOMEPILOT classic 16701001 Garage door opener
Description
The garage door motor classic is our garage door motor for convenient and automated control of swing and sectional doors.The garage door motor offers you numerous convenient functions such as, for example Soft-start/soft-stop, internal LED lighting and obstacle detection. The automatic obstacle detection makes sure that the gate stops when driving onto an obstacle and moves in the opposite direction. Thanks to an external unlock included in the delivery, you can manually open your garage door from the inside even during a power failure.Simplify your life with this electric garage door motor and open the garage door from now on at the touch of a button. With the keychain hand-held transmitters included in the delivery, you and your partner can make a button on the key and open your garage door as soon as they are bent into your street. The pre-assembled mains plug can simply be plugged into an existing mains socket so that no further power cables need to be laid. In addition, the motor has an option to connect an external switch.In addition to the two key ring hand-held transmitters contained in the delivery, the hand-held keychain transmitter is also available separately. You can also attach a code lock (item no. 16991003) to the exterior wall of your garage to conveniently open the gate by entering a code.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x drive
- 2 x keyring hand-held transmitter
- 1 x external release
- Extensive mounting accessories: 1 x door tie, bent
- 2 x middle suspension
- 3 x fixing bracket
- 1 x inclination angle
- 1 x gate angle
- 1 x Multi-tooth connector
- 8 x hexagonal sheet metal screw (6 x 15 mm)
- 1 x screws (6 x 80 mm) with hex nut
- 1 x bolts (8 x 20 mm)
- 1 x safety splint (2 x 20 mm)
- 4 x screws (8 x 20 mm) with hex nut and washer
- 6 x dowels (10 mm)
- 6 x Hexagon screw (8 x 60 mm)
- 1 x impact pin
- 2 x mounting hole band
- 3 x Rails + 2 x Connectors.
