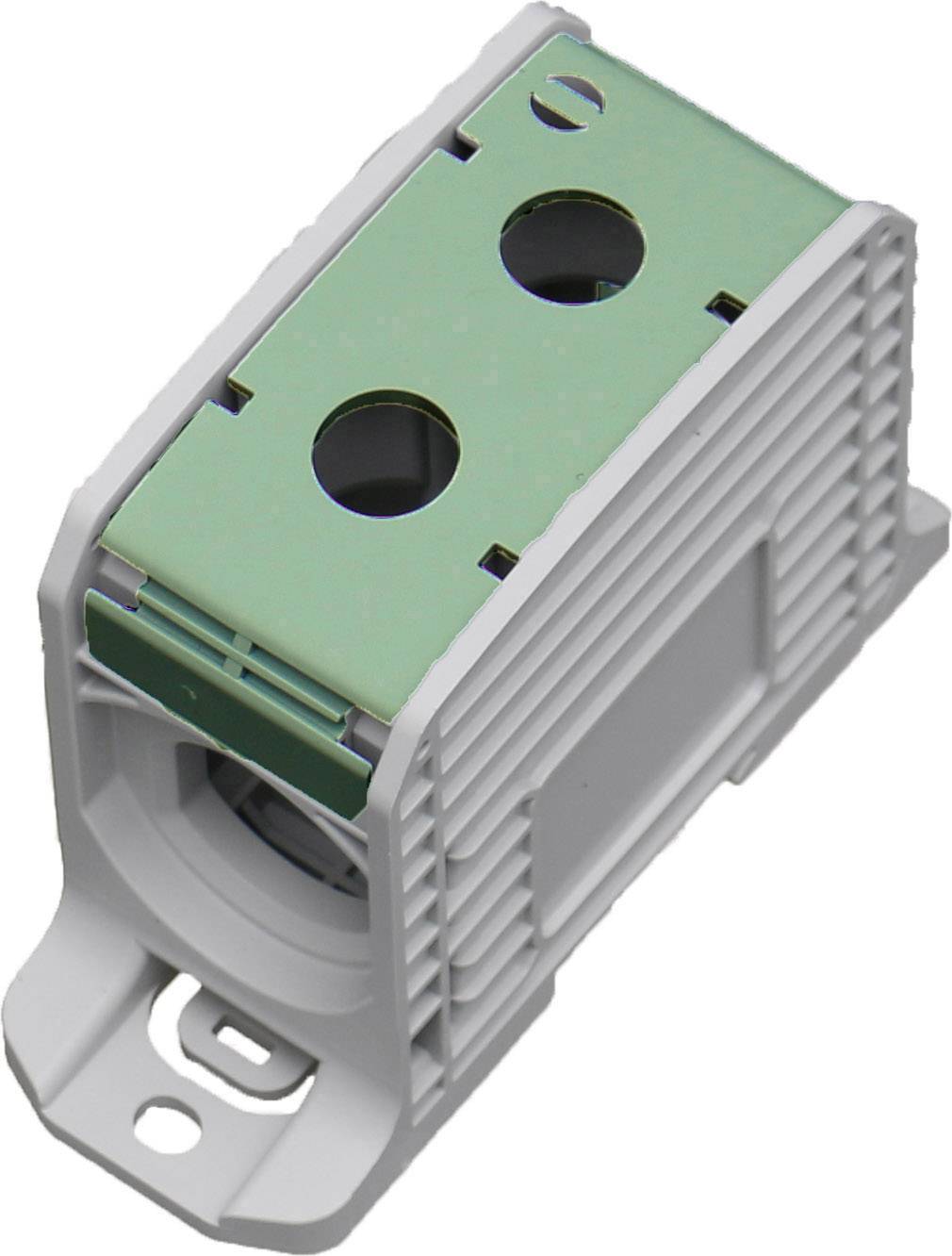

HoraeTec 087910-2-3 Terminal PA Grey-white (RAL 7035), Yellow, Green 1-pin 420 A, 340 A 600 V Conductor type = PE
EAN:
Part number:
Item no:
Product type
Terminal
Number of pins
1
Nominal current - rounded value
NaN A
Nominal voltage
600 V
Type
ALU-series terminal 300mm² 1-pin
Datasheet (PDF)
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
Highlights & Details
ALU-series terminal 300mm² 1-pin
- For aluminum and copper conductor
- On all sides finger-safe design
- Modular design, can be placed next to each other
Technical specifications
- Nominal voltage
600 V
- Type
ALU-series terminal 300mm² 1-pin
- Product type
Terminal
- Factory colour
Grey-white (RAL 7035)
Yellow
Green
- Number of pins
1
- Dim
(L x W x H) 105 x 37.5 x 83.5 mm
- Nominal current
420 A
340 A
- Nominal current - rounded value
NaN A
- Type
For aluminum and copper conductor (Al/Cu)
- Conductor type
PE
- Material
PA
- Width
37.5 mm
- Height
83.5 mm
- Length
105 mm
Documents & Downloads
Datasheet
Datasheet 1606563 HoraeTec 087910-2-3 Terminal PA Grey-white (RAL 7035), Yellow, Green 1-pin 420 A, 340 A 600 V Conductor type = PE
User & Safety Instructions
User & Safety Instructions 1606563 HoraeTec 087910-2-3 Terminal PA Grey-white (RAL 7035), Yellow, Green 1-pin 420 A, 340 A 600 V Conductor type = PE
Description
Including measurement/control cable connection 1 x 10 mm² - 1.5 mm² (8 - 16 AWG) 1 x 6 mm² - 1.5 mm² (10 - 16 AWG).
Access/outlet 2 x 300 mm² - 150 mm² (600 - 300 kcmil) 2 x 240 mm² - 120 mm² according to EN 60947-7-1 and UL 1059 with clip-on fastening for horizontal mounting on DIN TS35 rail or mounting on mounting plate (dust protection caps separately). 1 EXPENSE 300 PE (case gray, cover yellow green).
This text is machine translated.
Access/outlet 2 x 300 mm² - 150 mm² (600 - 300 kcmil) 2 x 240 mm² - 120 mm² according to EN 60947-7-1 and UL 1059 with clip-on fastening for horizontal mounting on DIN TS35 rail or mounting on mounting plate (dust protection caps separately). 1 EXPENSE 300 PE (case gray, cover yellow green).
