HT Instruments Multitest HT700+ RCD Set Equipment tester
EAN:
Part number:
Item no:
Number
Total (€ 3,035.00 / piece)
€ 3,035.00
incl. VAT
14-day return policy included
Highlights & Details
DGUV V3 device tester for electrical equipment including PRCD's in the set
- Testing within the framework of DGUV V3, BetrSichV according to:
- DIN VDE 0701-0702:2008 Testing of electrical devices/work equipment
- DIN VDE 0701 (EN 50678) AS WELL AS VDE 0702 (EN50699)
- DIN VDE 0751-1:2015 (EN 62353): Testing of medical electrical devices, such as care beds, etc.
Technical specifications
- Display: 7" capacitive color touch-screen with keyboard function
- Protective conductor resistance (RPE): 0.05 Ω - 10 Ω (> 600 mA + 10 A test current)
- Insulation resistance (RISO): 0.1 MΩ - 100 MΩ (100 V - 1000 V test voltage)
- Protective conductor current (IPE): 0.03 mA - 25 mA (difference, direct, replacement)
- Contact current (IBER.); 0.03 mA - 25 mA (difference, direct, replacement)
- Line test: RPE, RISO, short circuit and continuity test for L & N.
- Function test: (Voltage/current) 1 V - 360 V/0.1 A - 16 A.
- Function test: (Active power/apparent power) 20 W - 2300 W.
- Interfaces: W-LAN, Bluetooth®, 4 x USB, Mini
- Product type
Equipment tester
Manufacturer's standards (no certificate)
- Interfaces
Wi-Fi (802.11b/g)
USB
Bluetooth®
Mini USB Host
- Dim
(L x W x H) 405 x 330 x 165 mm
- Weight
5 kg
- Reading range (VDE)
Insulation resistance
Earth leakage resistance
Active power
Apparent power
Continuity
Voltage
- DIN standard
DIN VDE 0701 (EN 50678)
DIN VDE 0702 (EN 50699)
- Display type
Digital (LCD)
- Width
330 mm
- Height
165 mm
- Length
405 mm
- Test procedure
automated
manual
- Voltage supply
Battery
- Memory
Yes
- Type
Multitest HT700+ RCD Set
- Features
RCD/FI testing
built-in colour touchscreen
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2476408 HT Instruments Multitest HT700+ RCD Set Equipment tester
Information
Information 2476408 HT Instruments Multitest HT700+ RCD Set Equipment tester
Description
State-of-the-art DGUV regulation 3 test case for testing electrical equipment
Specifications:
• Complete one device tester for all VDE device tests
• Testing PRCD's (2-/3-pin) type S, S+, K.
• Testing RCD type AC, A, F, B, B+
• Testing of medical devices VDE0751 type B, BF and CF
• Device tester can be operated in IT networks
• Standard, extended and customer-specific visual inspections
• Database management of customers & resources with ID no.
• Creation and assignment of individual test sequences and intervals
• Automatic and manual test sequence can be set
• Direct test/customer input via touch-screen keyboard
• Testing detection possible via barcode or transponder
• Unlimited data storage via SO-card
• Measurement result with clear GOOD/BAD display
• Help function and schematic connection diagrams
• Complete test sample/customer database can be stored on SUCH a card and thus directly available at the test site
• Low operating costs, free updates via WLAN, LAN, USB
• Interfaces: WLAN, RJ45 (LAN), USB, SO-card slot and Bluetooth
• Internal rechargeable battery, inventory and use of the user interface is possible without interruption when changing the test station
This text is machine translated.

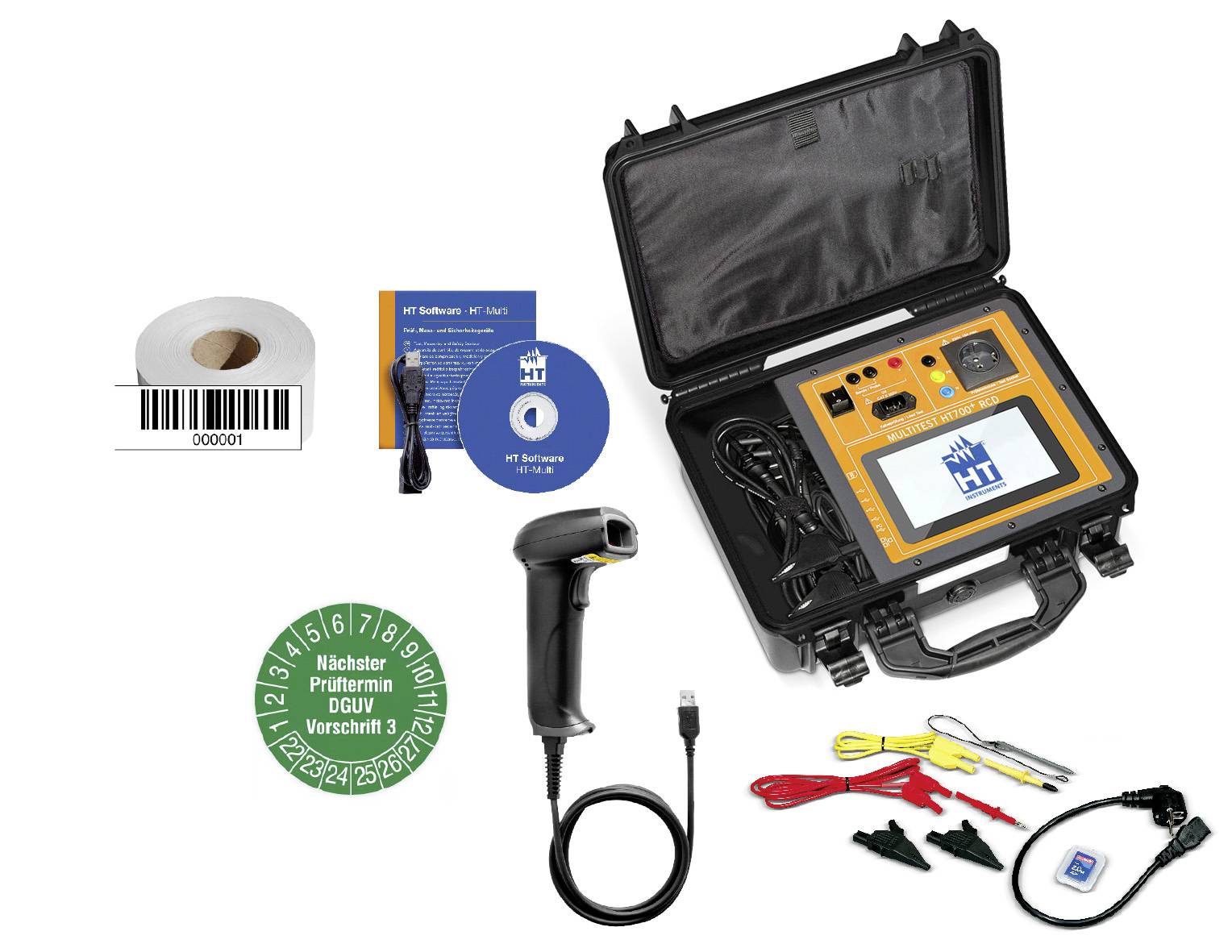

Scope of delivery
- Tester in robust protective case (IP67)
- 2-pin test lead (probe)
- Test lead/alligator clip set
- Calibration protocol ISO 9000
- 2 GB SO card
- USB cable
- User manual
- Cold unit lead
- PC protocol software
- Barcode-Scanner
- 1000 barcode labels
- 320 test labels
