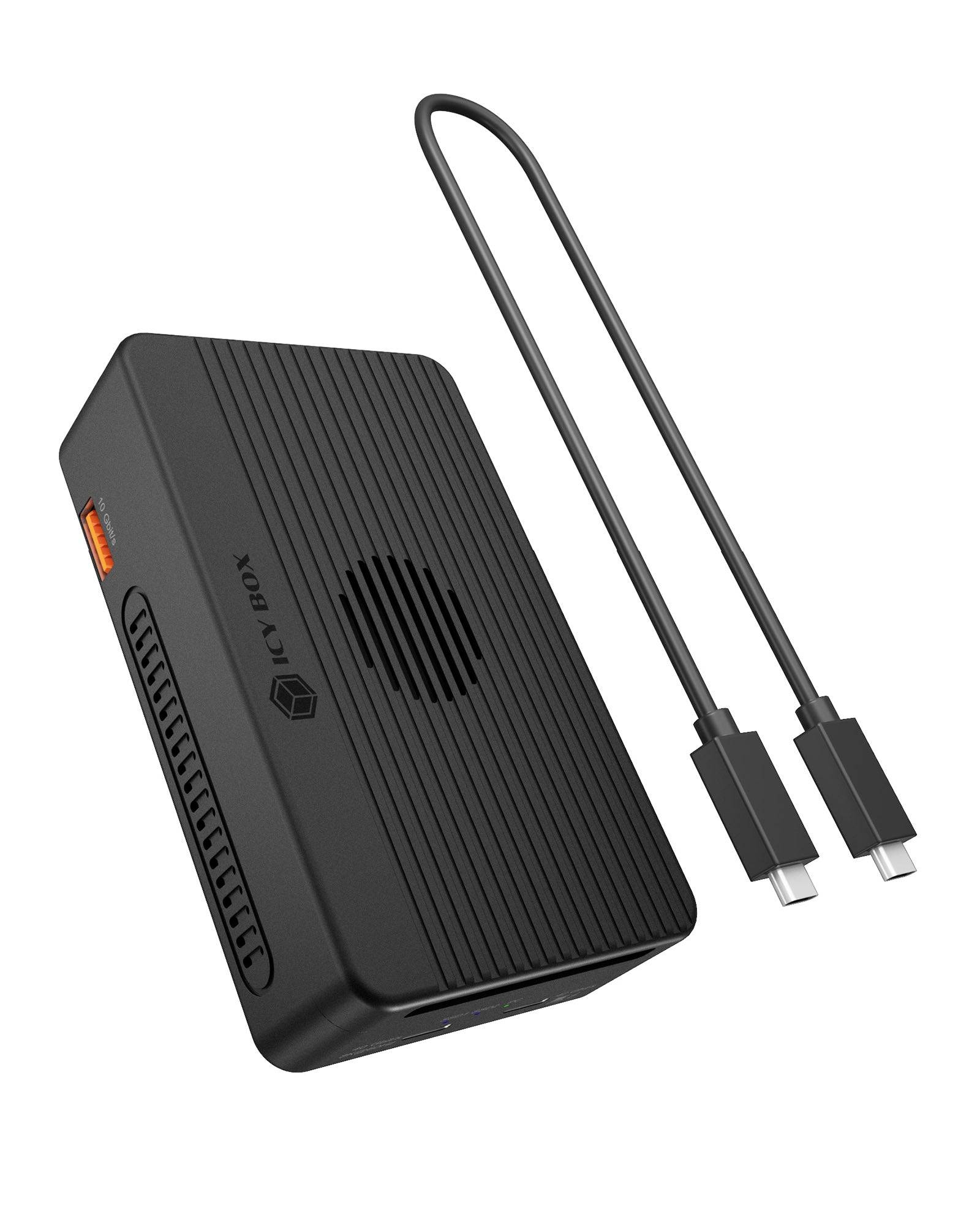

ICY BOX IB-RD2818DK-40G M.2 SSD enclosure USB C®, Thunderbolt 3 M.2 NVMe PCIe 4.0 x4 61203
EAN:
Part number:
Item no:
Number
Total (€ 159.66 / piece)
€ 159.66
plus VAT.
Only 5 Piece(s) available
Highlights & Details
ICY BOX heart RAID 2818 RAID & docking station for 2x M.2 NVMe SSD
- Cable connected
- Host interface: USB4
- USB Power Delivery
- Plug & Play
Technical specifications
- Host interface: USB4
- Data transfer rate 40 Gbps
- HD type 8K Ultra HD
- Product type
M.2 SSD enclosure
- HDD connection
M.2 NVMe PCIe 4.0 x4
- Interfaces
USB C®
Thunderbolt 3
- Power supply (LOV)
via PSU
- Features
RAID enabled
active cooling
- Factory colour
Black
- Width
110 mm
- Height
28 mm
- Depth
54 mm
- Dim
(W x H x D) 110 x 28 x 54 mm
- Weight
242 g
- Screen size diagonal (inches)
1 inch
- No. of HDMI ports
1 x
- No of. USB type A 3.1 /3.2 2nd gen
1 x
- No. of USB 3.0 ports
1 x
- Keyboard layout
German, QWERTZ
- Charging method (Power Delivery)
with USB Power Delivery
- Material (details)
Aluminium
- Max. output current
5 A
- Output voltage
20 V
- Transfer type
Corded
- UKCA
yes
- Ethernet LAN
no
- Master (outer) case gross weight
7.16 kg
- Quantity per pack
150 Stück(e)
- Master (outer) case length
445 mm
- Products per master (outer) case
10 Stück(e)
- Microphone in
no
- NVMe
yes
- USB Type-C DisplayPort Alternate Mode
yes
- Built-in fan
yes
- Card reader integrated
no
- USB Power Delivery up to
100 W
- Manual
yes
- USB4 ports quantity
1
- Master (outer) case height
195 mm
- Master (outer) case width
235 mm
- Maximum digital resolution
7680 x 4320 p
- Maximum storage capacity
32 TB
- Package weight
680 g
- Plug and Play
yes
- Number of storage drives supported
2
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3825289 ICY BOX IB-RD2818DK-40G M.2 SSD enclosure USB C®, Thunderbolt 3 M.2 NVMe PCIe 4.0 x4 61203
Description
40 Gbps performance with Thunderbolt™ 3 and USB4®
Heart RAID 2818 delivers, WAS professionals expect high-end hardware. With Thunderbolt™ 3 and USB4®, it can reach up to 40 Gbps to make video editing or creating large backups easier. Use Diamond Case 1980 for your professional setup and unleash its full potential!

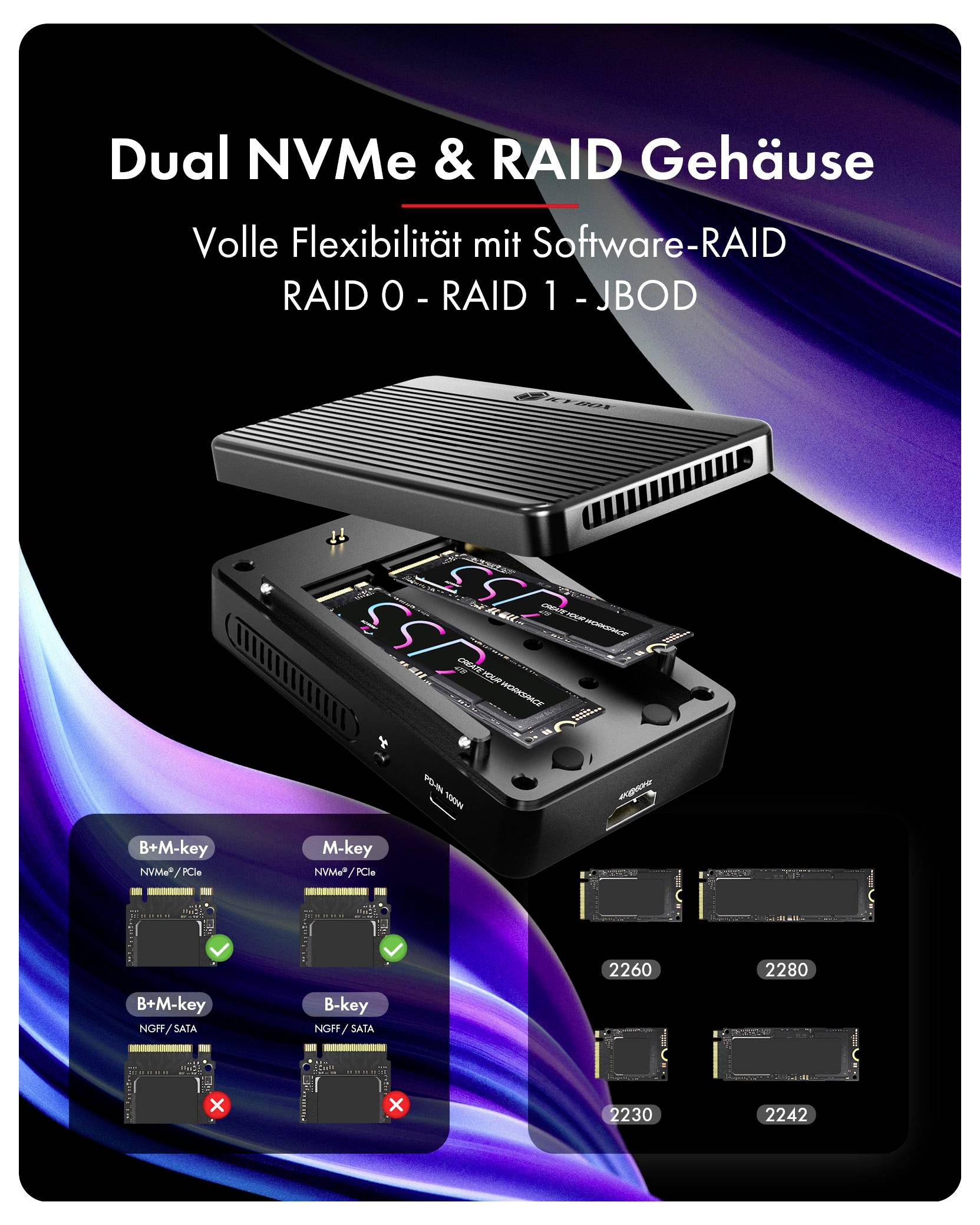

Dual M.2 NVMe with software RAID
This single enclosure supports 2 M.2 NVMe M-Key SSDs up to 2280. With multiple RAID levels, you can decide between high speed or maximum data security, just according to your particular situation.
8K? 8K!
In addition to storage, Heart RAID 2818 is also a docking station. As such, it supports video output up to 7680 x 4320 at 60 Hz via the USB Type-C® connection and up to 4096 x 2160 at 60 Hz via HDMI®. This allows you to equip your workstation with high-resolution displays.
60 W Power delivery
The host connection offers up to 60 W Power delivery. This allows you to charge your notebook, for example.
Stay connected
A USB 3.2 Gen 2 Type-A connection with up to 10 Gbps transfer rate allows other devices to be used. Instead of multiple hubs you can use Diamond RAID 2818 directly to make other devices superfluous.

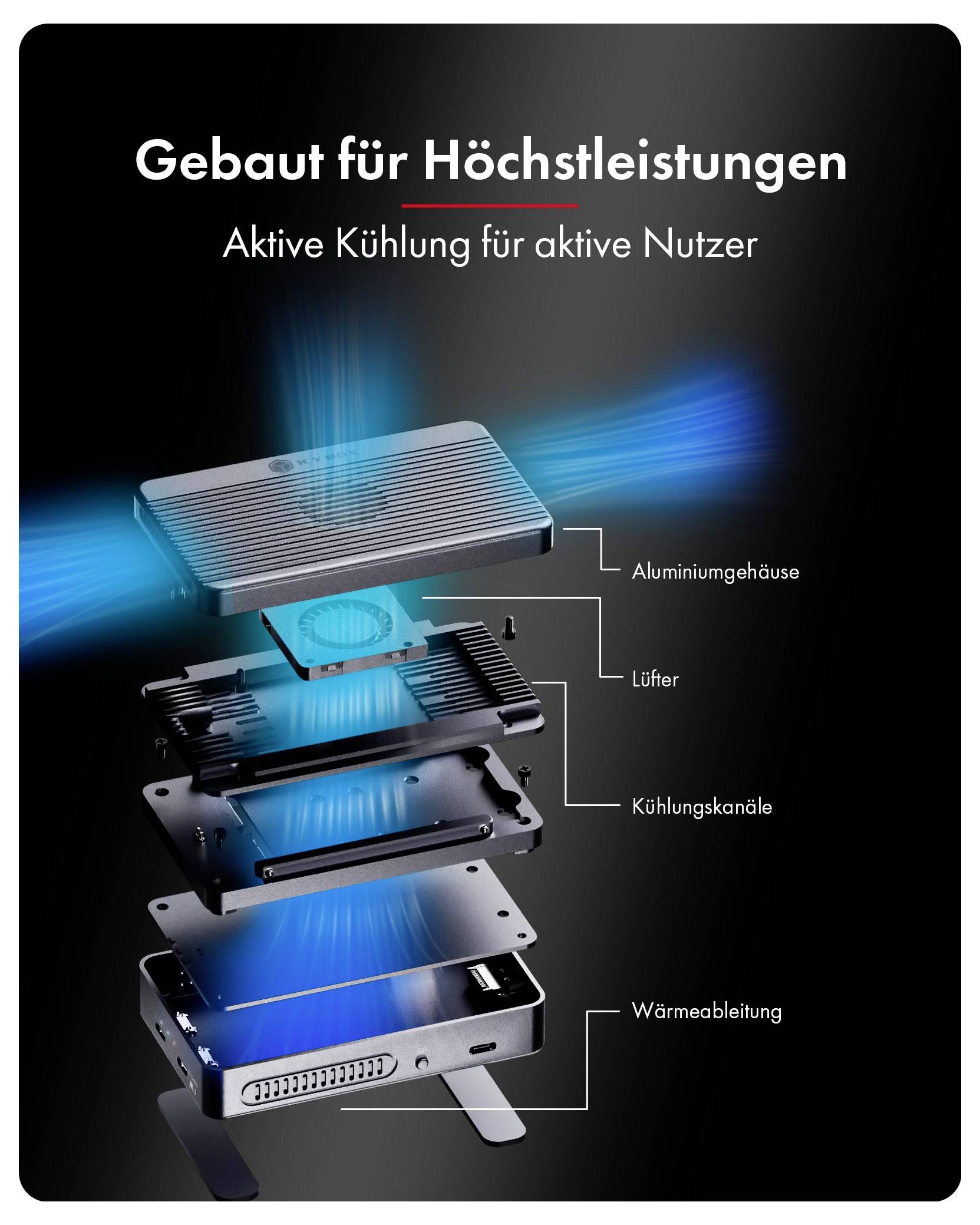

Remain cool
With so much Power it can quickly get hot! The integrated fan can be connected to provide the necessary cooling even during intensive sessions. LED lights show you at a glance whether Diamond RAID 2818 is ready for operation and to which SSDs it has access.
This text is machine translated.

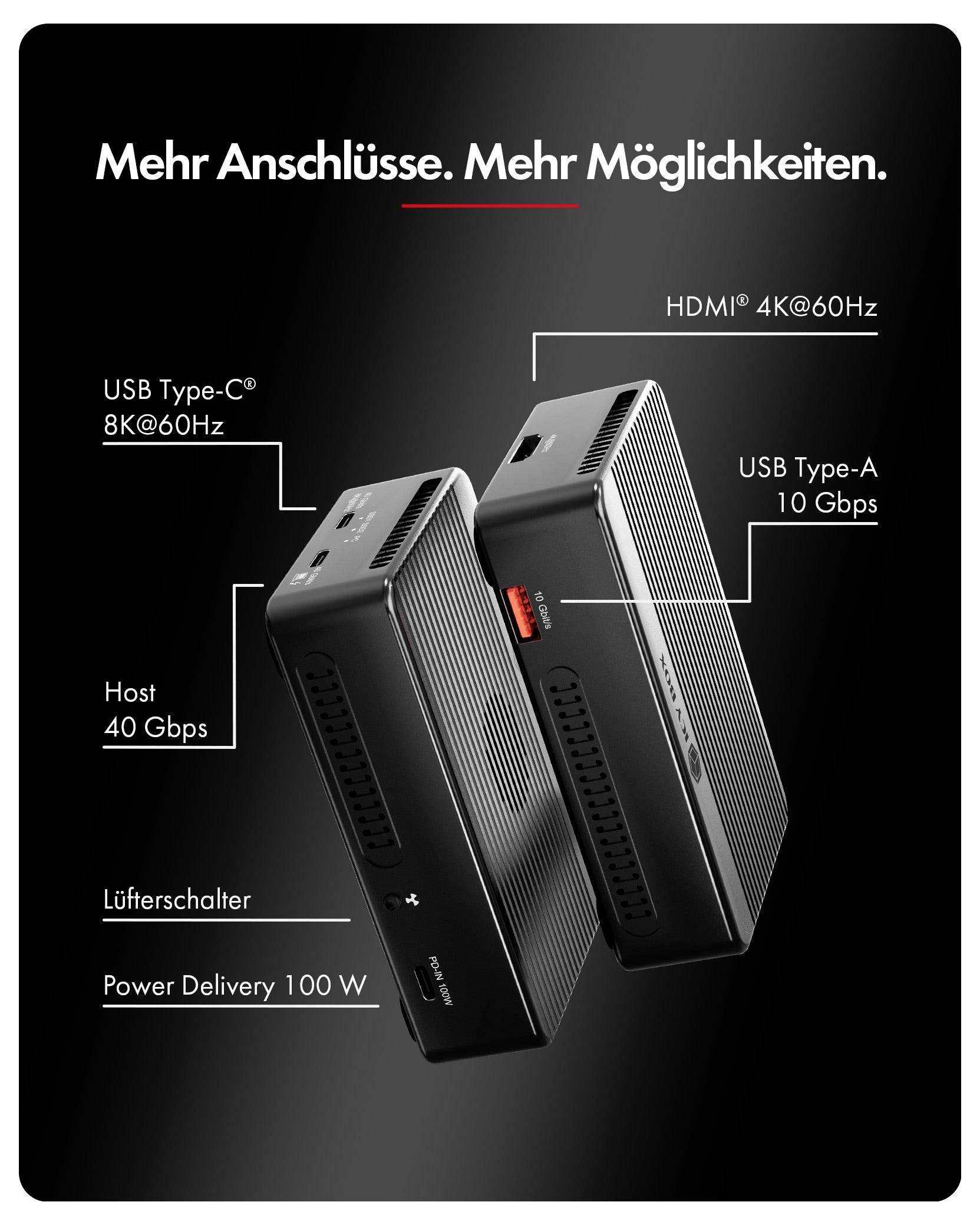

Features
- The USB Type-C® host port supports Thunderbolt™ 3 and USB4® with a transmission rate of up to 40 Gbps and 60 W PD
- Supports 2x M.2 NVMe SSD in formats up to 2280, achieves up to 40 Gbps with software RAID function
- USB Type-C® (Thunderbolt™ 3 and USB4®) with a transmission rate of up to 40 Gbps and video output up to 7680x4320@60 Hz
- USB 3.2 Gen 2 Type-A port with a transfer rate of up to 10 Gbps
- HDMI connection with a resolution of up to 4096 x 2160@60 Hz
- USB Type-C® PD/DC power input supports 5–20 V/PD 100 W.
- Integrated fan with fan switch for maximum heat dissipation
- LED indicators for power supply and access
Scope of delivery
- 1x Heart RAID 2818, 1x USB-C to USB-C cable (50 cm),
- 1x USB-C to USB-C cable for PD, 100 cm, 1x 20 V/5 A
- Type-C® PD charger, 4x thermal conduction pad,
- 4x rubber fixing, 1x manual
System requirements
- Your computer must be compatible with
Thunderbolt™ 3 or USB4
