IMG Stageline PAK-412 Active PA speaker 450 W 1 pc(s)
EAN:
Part number:
Item no:
10 Piece(s)
Sales and shipping:
Number
Total (€ 478.15 / piece)
€
Only 10 Piece(s) available
Highlights & Details
Musician speaker PAK-412
- RMS power:450 W
- Max. power:700 W
- 124 dB
Technical specifications
- Frequency range 40-20000 Hz
- Amplifier power: 450 (350 +100) WRMS
- Inputs: 1 x XLR/6.3-mm combination
- Avg. Sound pressure (1W/1m): 98 dB
- Max. Nominal sound pressure: 124 dB
- Permissible operating temperature: 0-40°C
- Power supply 230 VWechsel/50 Hz/500 VA
- Type
Plastic
- RMS power
450 W
- Max. power
700 W
- Max. sound pressure
124 dB
- Interfaces
Mic input combo jack (XLR, 6.35 mm jack)
Line in
XLR out
- Features
Can be used as a stage monitor
- Content
1 pc(s)
- Dim
(W x H x D) 405 x 670 x 340 mm
- Depth
340 mm
- Height
670 mm
- Width
405 mm
- Frequency range
40-20000 Hz
- Weight
17.3 kg
- Product type
Active PA speaker
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1416829 IMG Stageline PAK-412 Active PA speaker 450 W 1 pc(s)
Description
PAK-400 series modern technologies, universal compatibility and individual settings on different requirements to the sound are characteristic of the PAK-400 series.
The active electronics is a combination of class-D in the low range and class - AB in the high-frequency range.
With the practical designed presets is the correct sound found quickly and with the switchable high-pass filter at 75 Hz is a coupling to subwoofer systems, such as the PSUB-418 AK immediately.
Tender ance 06/2015
Universal Eisatzbarkeit and individual adjustment possibilities on the basis of modern technology has IMG Stage Line of the PAK-400-Series on the visiting card - a concept that comes up:
From the keyboard entertainer via the entertainment music combo up to the DJ can be any suitable models can be found.
This text is machine translated.
The active electronics is a combination of class-D in the low range and class - AB in the high-frequency range.
With the practical designed presets is the correct sound found quickly and with the switchable high-pass filter at 75 Hz is a coupling to subwoofer systems, such as the PSUB-418 AK immediately.
Tender ance 06/2015
Universal Eisatzbarkeit and individual adjustment possibilities on the basis of modern technology has IMG Stage Line of the PAK-400-Series on the visiting card - a concept that comes up:
From the keyboard entertainer via the entertainment music combo up to the DJ can be any suitable models can be found.
This text is machine translated.

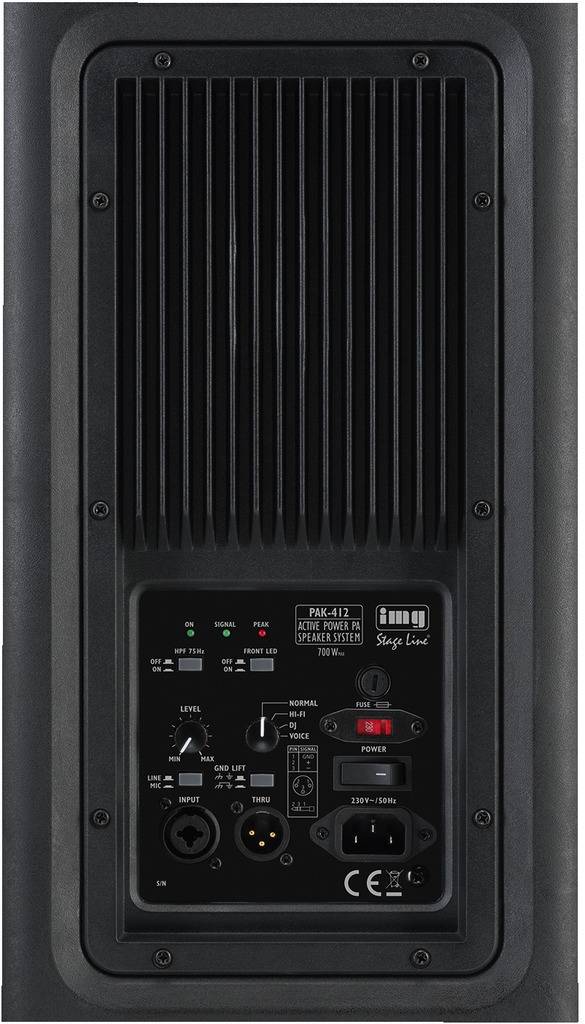

Features
- Active Power-PA-Speaker Box with 2-channel amplifier
- 700WMAX, 450WRMS
- Compact 12/2 full range system with sturdy plastic housing
- Modern amplifier system (Bass Class D, High Tone Class A/B)
- 124 dB sound pressure at rated power
- 4 switchable presets: Normal, hi-fi, DJ and voice, 75-Hz-Hochpass switchable
- Switchable MIC/LINE input
- LED display for Power, Signal and peak/clipping
- M10 thread inserts (2 x above, 2 x at bottom and 1 x rear)
- Setting up slope for use as floor monitor
- Stand sleeve and carrying handles
