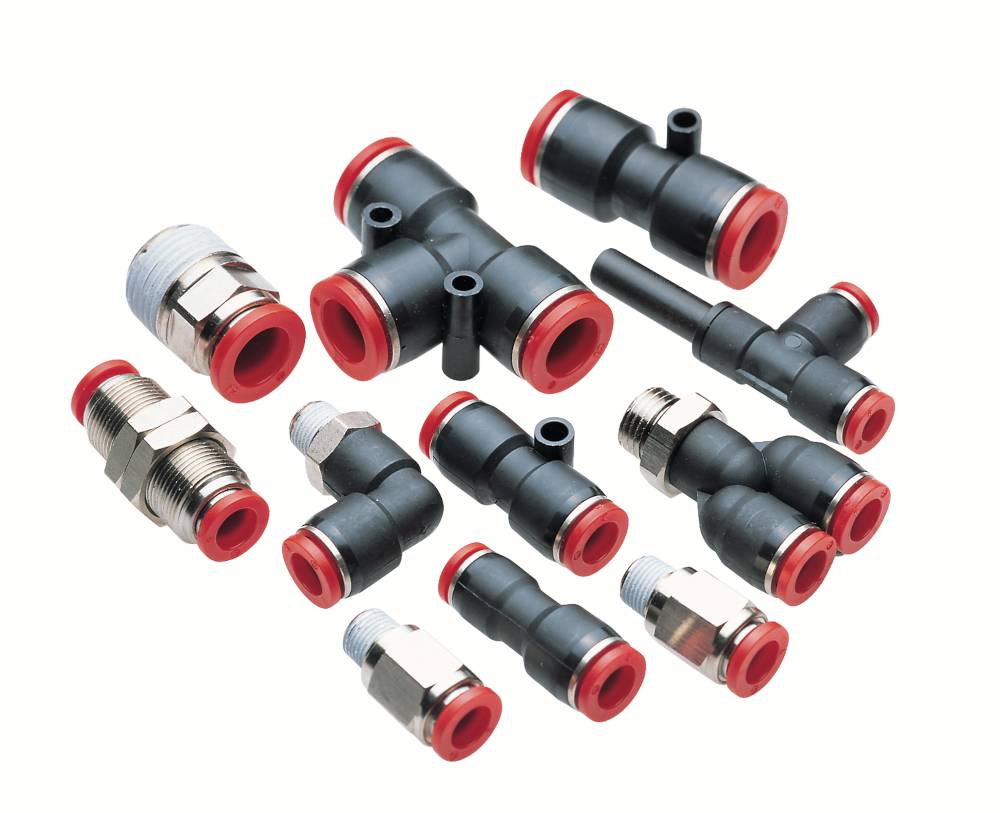

Image similar
Image similar
IMI NORGREN Elbow connector (pivoted) C01470628 -0.9 up to 10 bar External thread M6
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 3.70
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 3.66 / piece)
€ 36.60
plus VAT.
Technical specifications
- Product type
Elbow connector (pivoted)
- External thread
M6
- Operating temperature
0 °C (min)
- Min. operating temperature
0 °C
- Manufacturer part #
C01470628
- Dim
(Ø x H) 4 mm x 15 mm
- Max. operating pressure
10 bar
- Operating pressure (min.)
-0.9 bar
- Pressure range
-0.9 up to 10 bar
- Width
28 mm
- (Ø)
4 mm
- Pipe Ø
6 mm
- Height
15 mm
- Length
38 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3301222 IMI NORGREN Elbow connector (pivoted) C01470628 -0.9 up to 10 bar External thread M6
User & Safety Instructions
User & Safety Instructions 3301222 IMI NORGREN Elbow connector (pivoted) C01470628 -0.9 up to 10 bar External thread M6
Description
Angle screwing rotatable
