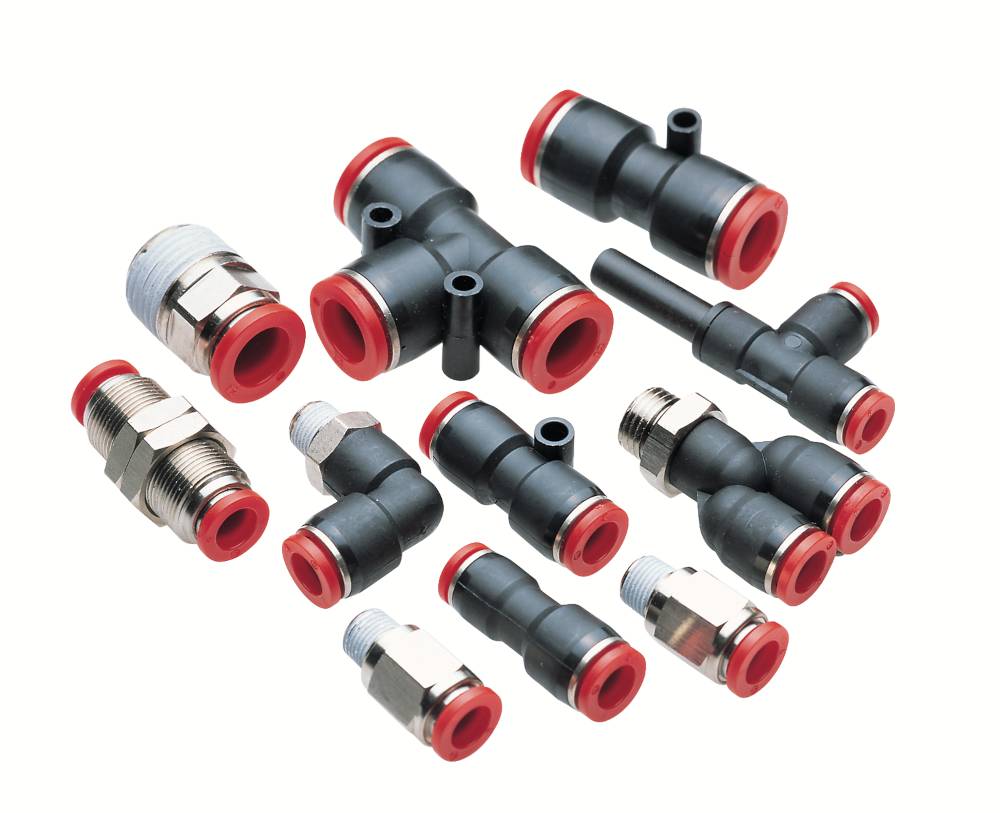

Image similar
IMI NORGREN Elbow connector (pivoted) C01480418 -0.9 up to 10 bar
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 4.99 / piece)
€ 4.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Elbow connector (pivoted)
- Operating temperature
0 °C (min)
- Min. operating temperature
0 °C
- Manufacturer part #
C01480418
- Dim
(Ø x H) 3 mm x 16 mm
- Max. operating pressure
10 bar
- Operating pressure (min.)
-0.9 bar
- Pressure range
-0.9 up to 10 bar
- Width
28.3 mm
- (Ø)
3 mm
- Pipe Ø
4 mm
- Height
16 mm
- Length
27.8 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3301239 IMI NORGREN Elbow connector (pivoted) C01480418 -0.9 up to 10 bar
User & Safety Instructions
User & Safety Instructions 3301239 IMI NORGREN Elbow connector (pivoted) C01480418 -0.9 up to 10 bar
Description
Angular screw-on screw connection rotating
This text is machine translated.
This text is machine translated.
