IMI NORGREN Elbow connector (pivoted) C01541248 -0.9 up to 10 bar

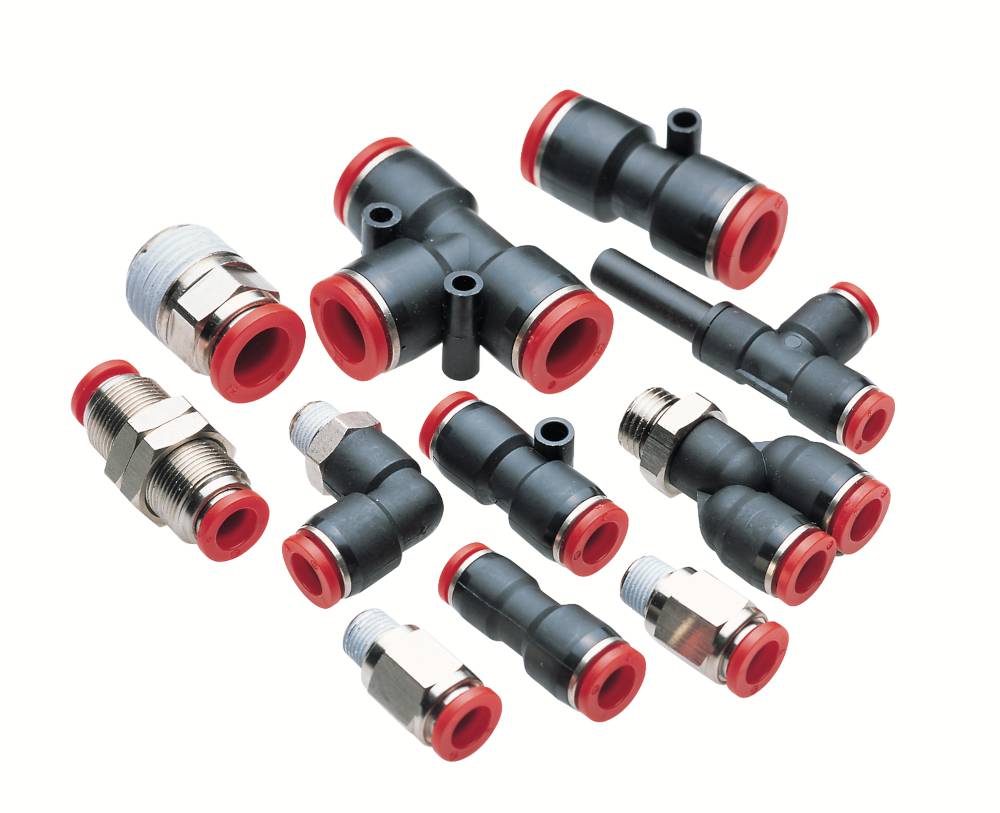

Diverse pneumatic components with connectors in black and red against a white background.
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
27 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 5
Multiple: 5
Total (€ 12.99 / piece)
€ 12.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Elbow connector (pivoted)

Operating temperature

0 °C (min)

Min. operating temperature

0 °C

Manufacturer part #

C01541248

Dim

(Ø x H) 10 mm x 25.4 mm

Max. operating pressure

10 bar

Operating pressure (min.)

-0.9 bar

Pressure range

-0.9 up to 10 bar

Width

70 mm

(Ø)

10 mm

Pipe Ø

12 mm

Height

25.4 mm

Length

41.3 mm

Max. ambient temperature

+60 °C

Min. ambient temperature

-20 °C

Documents & Downloads

Datasheet

Datasheet 3301281 IMI NORGREN Elbow connector (pivoted) C01541248 -0.9 up to 10 bar

User & Safety Instructions

User & Safety Instructions 3301281 IMI NORGREN Elbow connector (pivoted) C01541248 -0.9 up to 10 bar

Description

Angular fitting, rotatable, long
