IMI NORGREN Elbow connector (pivoted) C02470406 -0.9 up to 10 bar

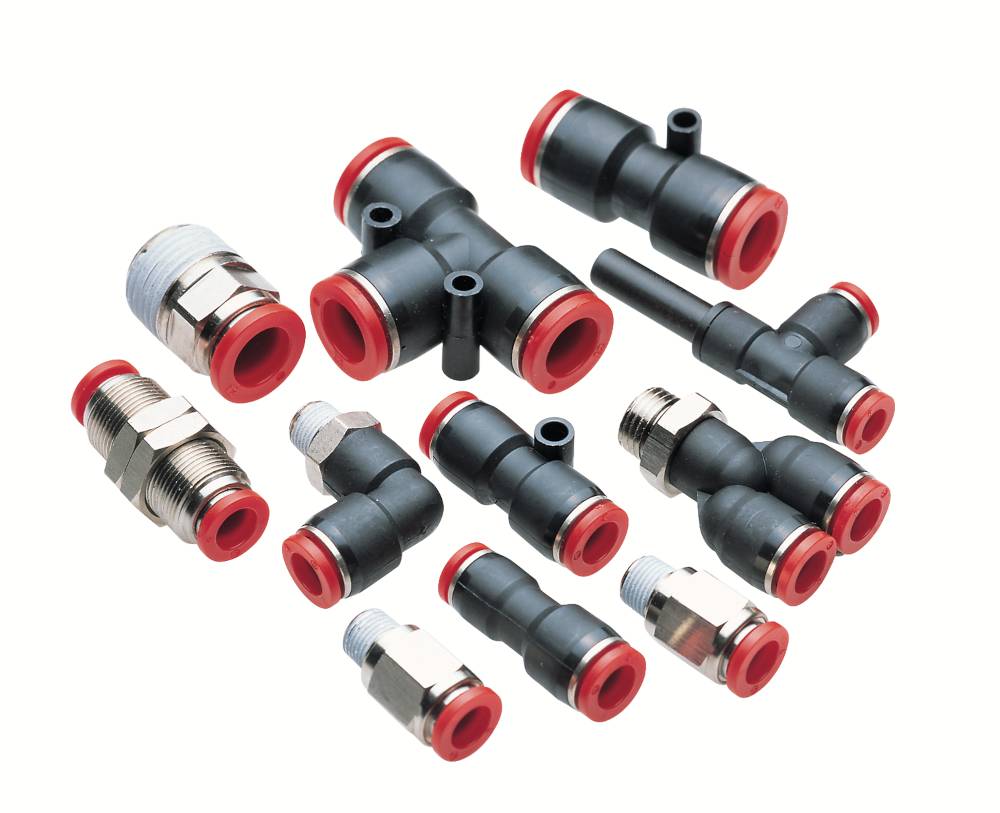

Several black plastic T-pieces and pipe connectors with red rings, arranged on a white background. They are intended for pneumatic systems.
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 4 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 4.99 / piece)
€ 4.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Elbow connector (pivoted)

Operating temperature

0 °C (min)

Min. operating temperature

0 °C

Manufacturer part #

C02470406

Dim

(Ø x H) 3 mm x 11.6 mm

Max. operating pressure

10 bar

Operating pressure (min.)

-0.9 bar

Pressure range

-0.9 up to 10 bar

Width

25.9 mm

(Ø)

3 mm

Pipe Ø

4 mm

Height

11.6 mm

Length

24.2 mm

Enclosure material

PBT

Max. ambient temperature

+60 °C

Min. ambient temperature

-20 °C

Documents & Downloads

Datasheet

Datasheet 3301449 IMI NORGREN Elbow connector (pivoted) C02470406 -0.9 up to 10 bar

User & Safety Instructions

User & Safety Instructions 3301449 IMI NORGREN Elbow connector (pivoted) C02470406 -0.9 up to 10 bar

Description

Angle screwing rotatable
