IMI NORGREN Quick connector C01251648 -0.9 up to 10 bar External thread R1/8

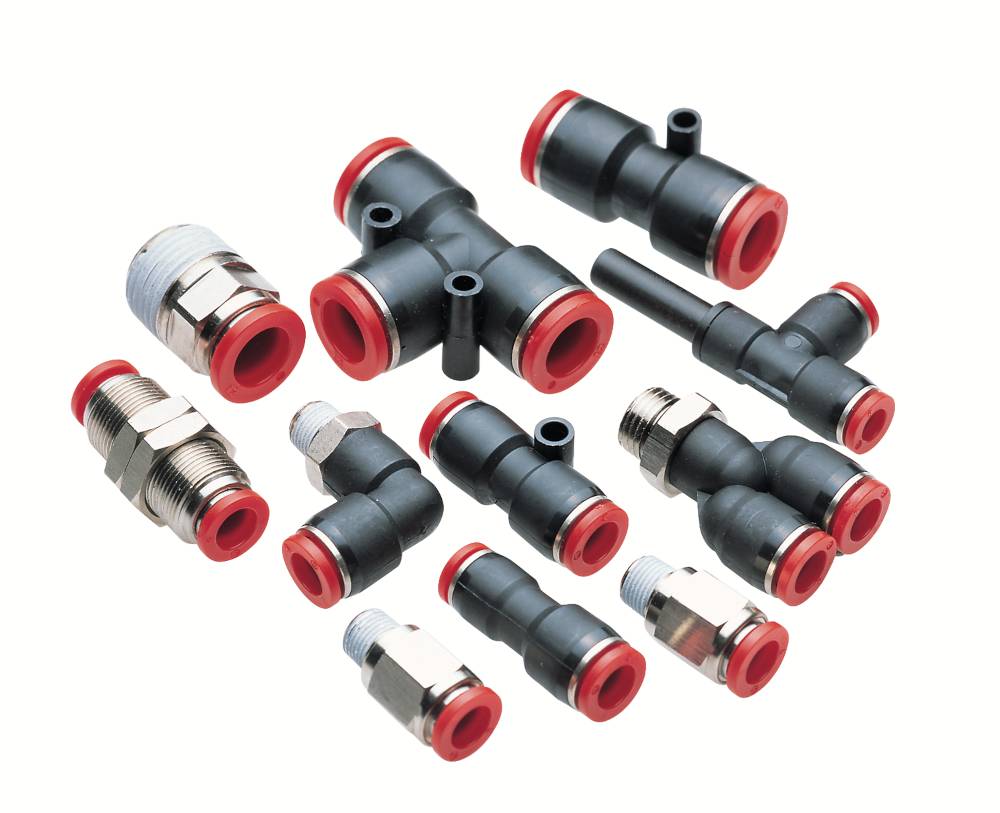

Several black and silver pneumatic fittings with red edges, in various shapes and sizes, on a white surface.
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 3 Nov
1047 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 5
Multiple: 5
Total (€ 8.44 / piece)
€ 8.44
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Quick connector

External thread

R1/8

Operating temperature

0 °C (min)

Min. operating temperature

0 °C

Manufacturer part #

C01251648

Dim

(Ø x L) 10 mm x 40.5 mm

Max. operating pressure

10 bar

Operating pressure (min.)

-0.9 bar

Pressure range

-0.9 up to 10 bar

(Ø)

10 mm

Pipe Ø

16 mm

Length

40.5 mm

Max. ambient temperature

+60 °C

Min. ambient temperature

-20 °C

Documents & Downloads

Datasheet

Datasheet 3301199 IMI NORGREN Quick connector C01251648 -0.9 up to 10 bar External thread R1/8

User & Safety Instructions

User & Safety Instructions 3301199 IMI NORGREN Quick connector C01251648 -0.9 up to 10 bar External thread R1/8

Description

Straight screw connection (outer and inner hexagon)
