IMI NORGREN Shott pipe connector C02321248 -0.9 up to 10 bar

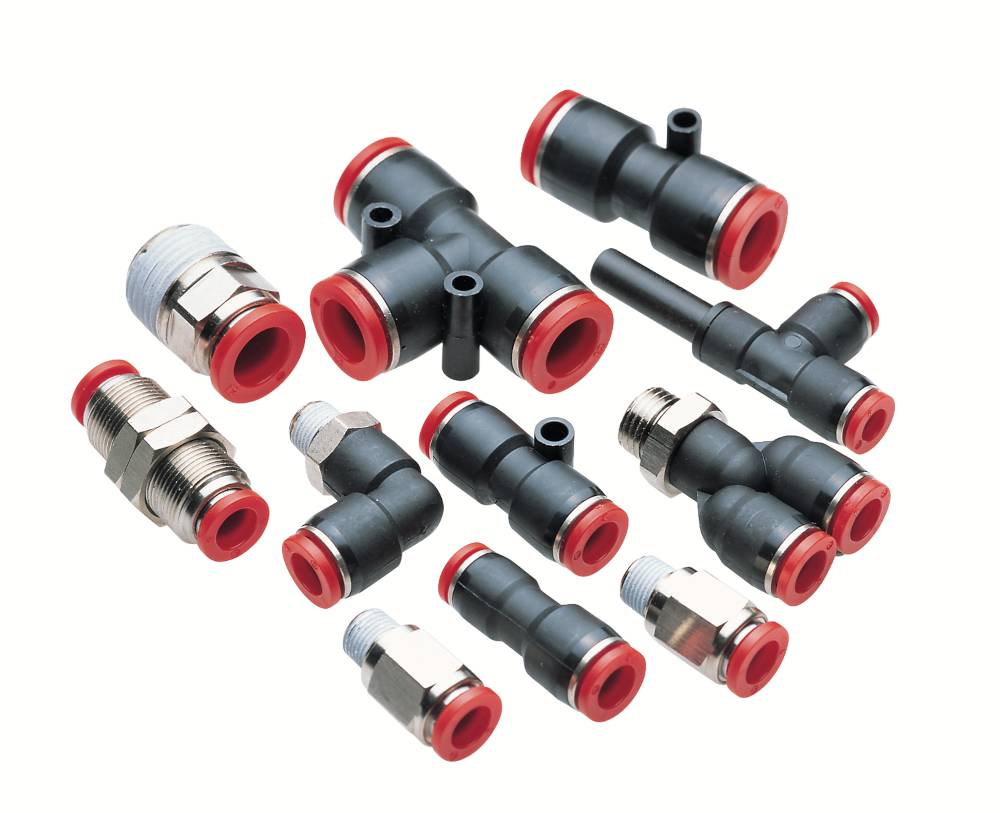

Various pneumatic push-fit connectors in black with red rings. They include T-pieces, elbow fittings, and straight connectors.
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon, 15 Feb 2027
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 5
Multiple: 5
Total (€ 12.27 / piece)
€ 12.27
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Shott pipe connector

Operating temperature

0 °C (min)

Min. operating temperature

0 °C

Manufacturer part #

C02321248

Dim

(Ø x L) 10 mm x 40 mm

Max. operating pressure

10 bar

Operating pressure (min.)

-0.9 bar

Pressure range

-0.9 up to 10 bar

(Ø)

10 mm

Pipe Ø

12 mm

Length

40 mm

Max. ambient temperature

+60 °C

Min. ambient temperature

-20 °C

Documents & Downloads

Datasheet

Datasheet 3301448 IMI NORGREN Shott pipe connector C02321248 -0.9 up to 10 bar

User & Safety Instructions

User & Safety Instructions 3301448 IMI NORGREN Shott pipe connector C02321248 -0.9 up to 10 bar

Description

Straight screw-on Schott screwing (internal thread)
