IMI NORGREN T fastener (pivoted) C01880648 -0.9 up to 10 bar

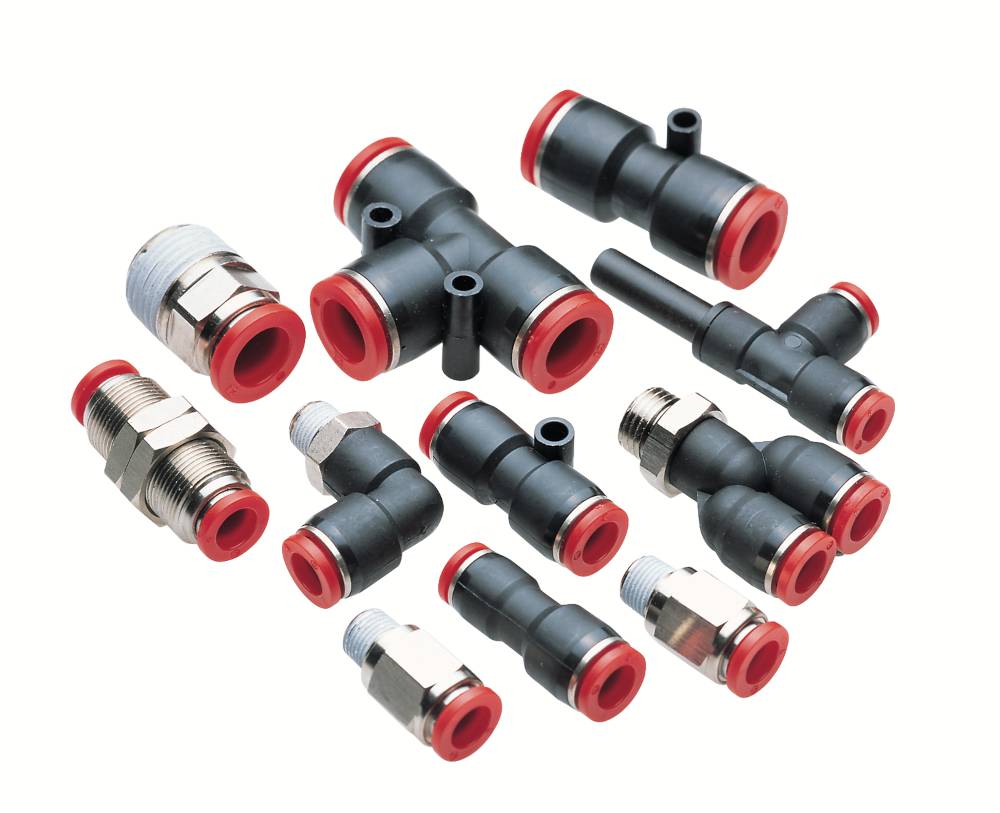

Various black plastic pneumatic connectors with red seals and some metallic connections, set against a white background.
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
43 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 5
Multiple: 5
Total (€ 7.03 / piece)
€ 7.03
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

T fastener (pivoted)

Operating temperature

0 °C (min)

Min. operating temperature

0 °C

Manufacturer part #

C01880648

Dim

(Ø x H) 4 mm x 24 mm

Max. operating pressure

10 bar

Operating pressure (min.)

-0.9 bar

Pressure range

-0.9 up to 10 bar

Width

22.5 mm

(Ø)

4 mm

Pipe Ø

6 mm

Height

24 mm

Length

51 mm

Max. ambient temperature

+60 °C

Min. ambient temperature

-20 °C

Documents & Downloads

Datasheet

Datasheet 3301346 IMI NORGREN T fastener (pivoted) C01880648 -0.9 up to 10 bar

User & Safety Instructions

User & Safety Instructions 3301346 IMI NORGREN T fastener (pivoted) C01880648 -0.9 up to 10 bar

Description

Y-fastener can be rotated
