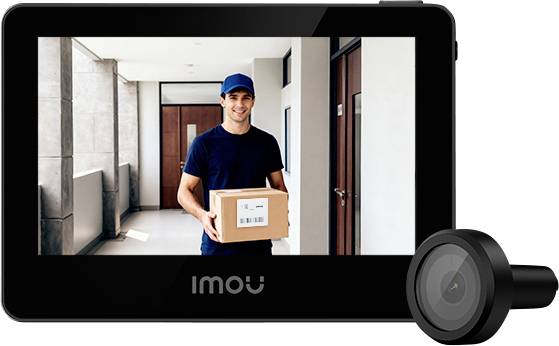

IMOU VD1 VD1-5M0S-imou Door spy hole 10.9 cm 4.3 inch

The Imou VD1 Door View Camera is a smart, battery-operated door spy hole that combines classic door viewing with modern video surveillance. From the outside the door remains almost unchanged: The device looks like a normal door spy hole, but it integrates a 5 MP camera for clear live images, intelligent notifications and a convenient display directly on the door. This makes the VD1 suitable in particular for apartments, private houses and rented properties, in which security and a decent appearance are equally important.

Equipped with a 1/3" progressive CMOS sensor, the camera delivers a maximum resolution of 2880 x 1620 pixels. The 2.3 mm lens with 149° diagonal view angle captures the input range wide and in detail, so that visitors, packages and movements in front of the door remain well visible. The video compression H.265/H.264 takes care of an efficient storage of recordings.

On the inside there is a 4.3-inch color display. It allows visual inspection without having to open the phone first. The integrated buttons let you operate the device quickly: Double-click creates a snapshot, and long press of a button starts a recording. Directly at the door remains easy and perfectly suited for everyday use.

The AOV mode (always-on video) has been designed for energy-saving door monitoring. The VD1 can regularly capture snapshots and record in full detail at relevant events. In combination with intelligent person recognition, not all movements are treated equally, but above all human activities are prioritized. This gives users more targeted notifications and reduces unnecessary storage load.

AOV Functions Overview:
· Continuous event coverage: Time-controlled snapshots keep an eye on the entrance area.
· Event recording on person recognition: Relevant movements are recorded with up to 15 fps.
· Intelligent notification: Person recognition filters out non-human movements and alerts you to important activities.

The configurable privacy zones protect sensitive areas in the field of view. Up to four zones can be masked, so that neighboring doors or private areas are not recorded or recognized. This is particularly useful in apartment blocks and entrances close to each other.

For network and access the VD1 Dual-Band supports Wi-Fi 6 with 2.4 GHz and 5 GHz. This makes the setup more flexible and the live view via the Imou Life APP more stable. The camera can also be used with the Imou PC software; remote access, live images, notifications and recording management are available via the APP.

Local storage is done via a microSD card with up to 512 GB. In addition, depending on the service, recordings can be stored via the Imou Cloud and played back at any time. The VD1 thus supports simple local recording as well as APP-based use for the daily routine.

The camera is powered by a 4800 mAh rechargeable battery, which is charged via USB Type-C and DC 5 V / 2 A. The installation is designed for classic door spy hole openings and fits bore holes from 14 to 26 mm as well as door thicknesses from 35 to 102 mm. Interchangeable color rings help to visually adapt the exterior to different doors.

With compact dimensions of 115 x 77 x 18 mm for the display and approx. Ø 33 x 44 mm for the lens, the VD1 fits inconspicuously into the input range. Its weight of around 317 g, support for the Imou Life APP and its easy installation make it a practical solution for modern, discreet door surveillance.
