Buy Technaxx TX-366 TX-366 Digital LCD door spy hole 10.92 cm 4.3 inch

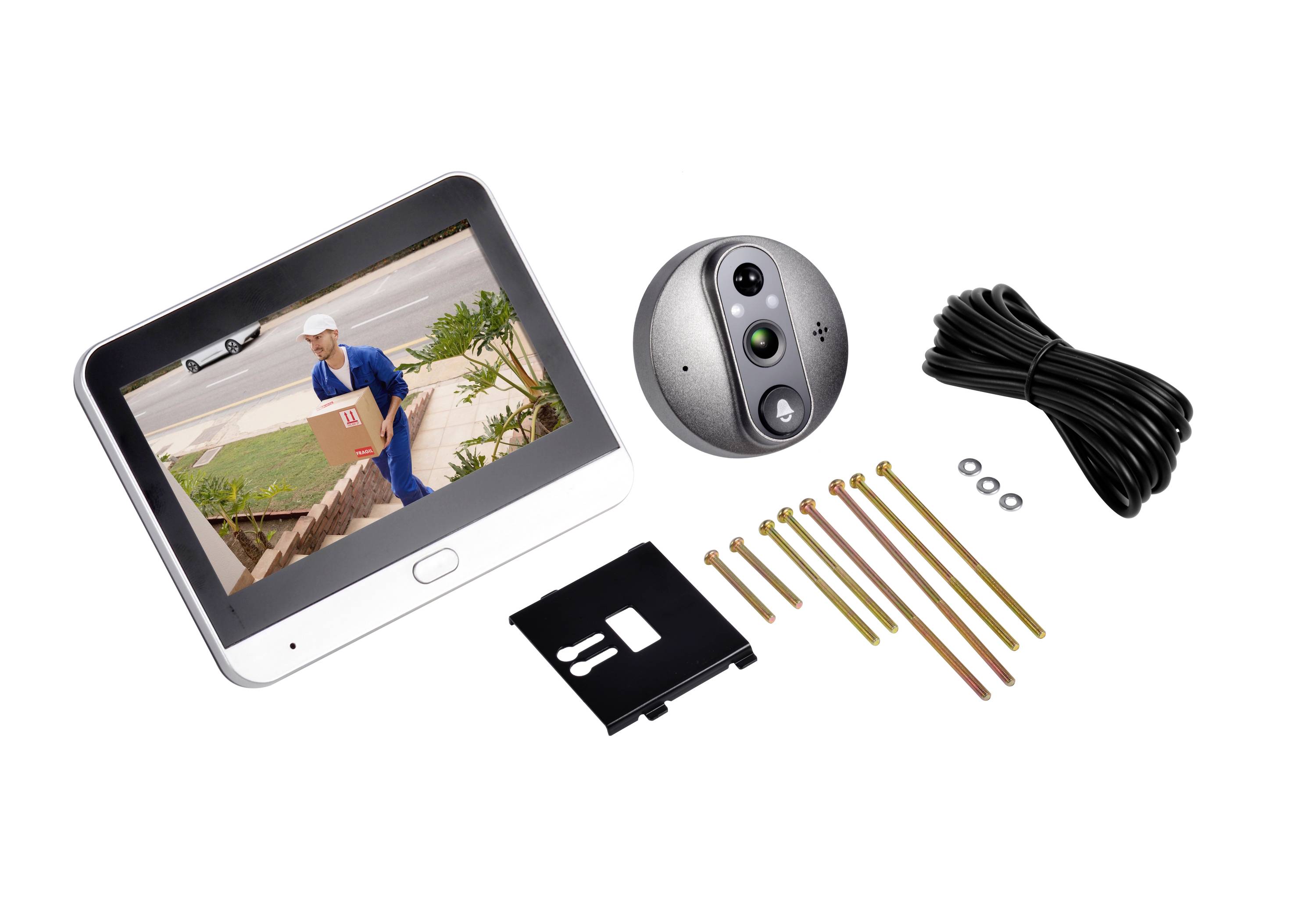

Video doorbell kit with indoor monitor, doorbell camera, memory card, screws, and wiring cable on a white background.

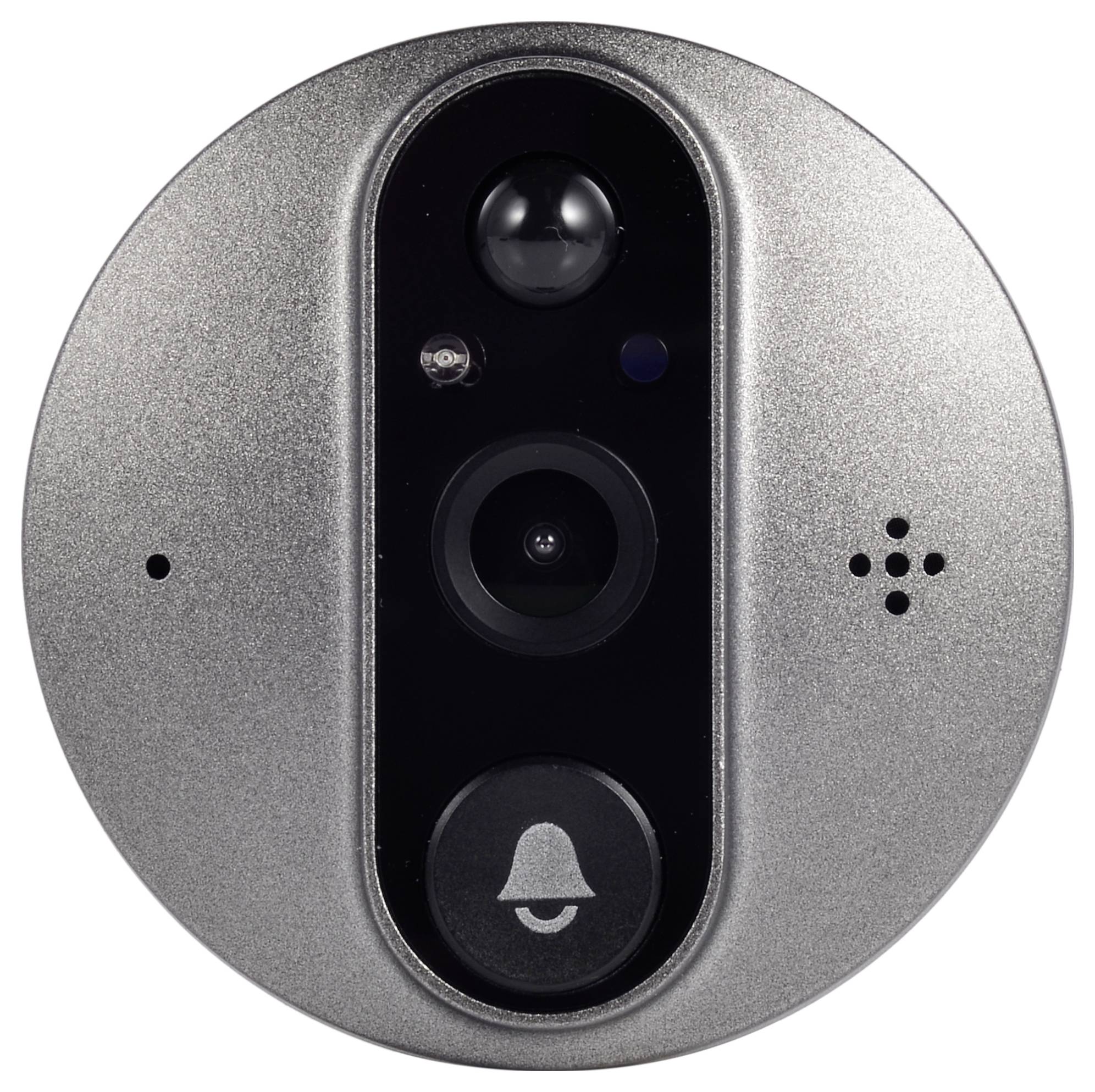

Round smart video doorbell camera with lens, motion sensor, speaker holes, and bell button on silver casing.

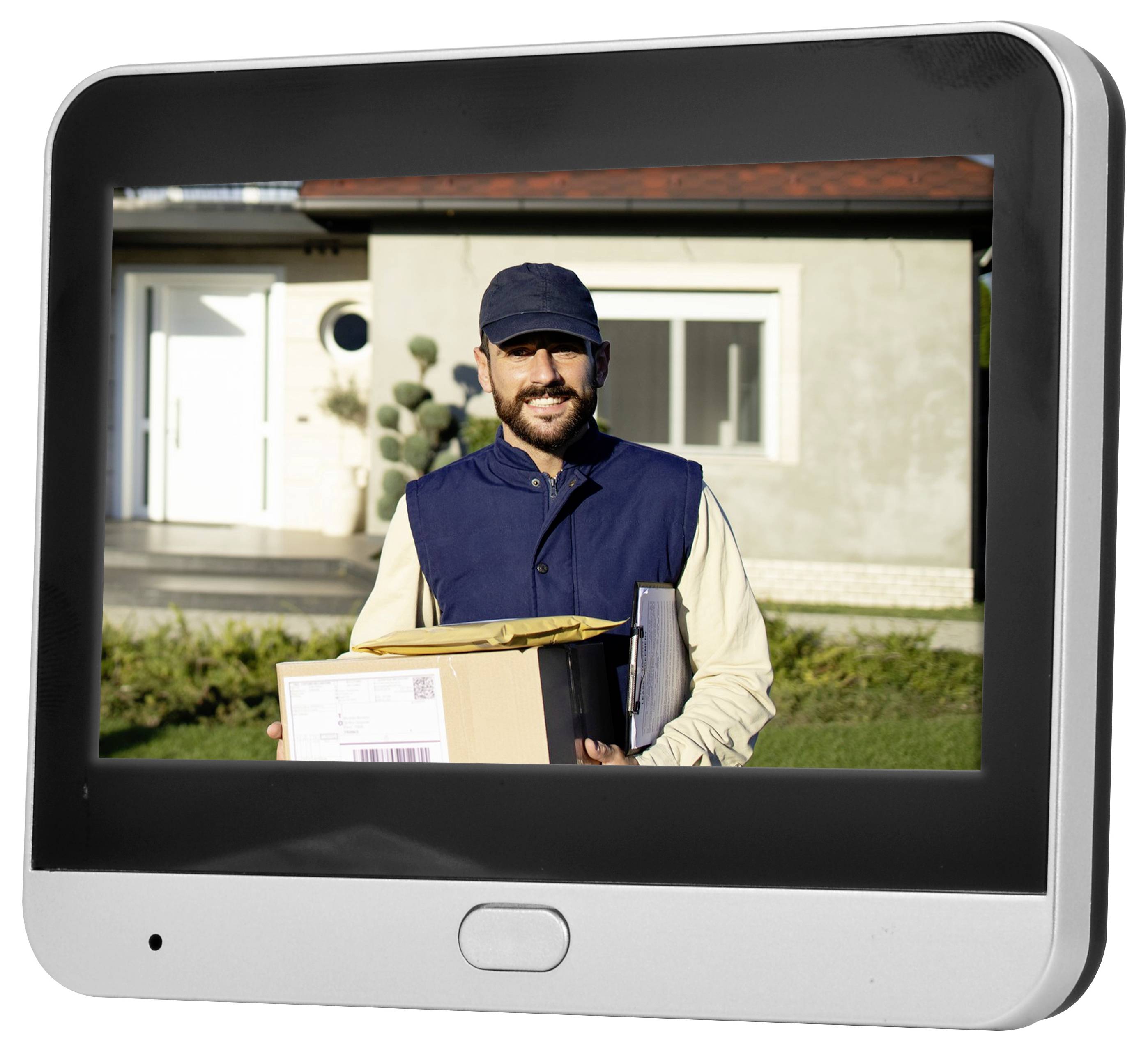

Video doorbell screen shows a delivery worker holding a package at a house entrance.

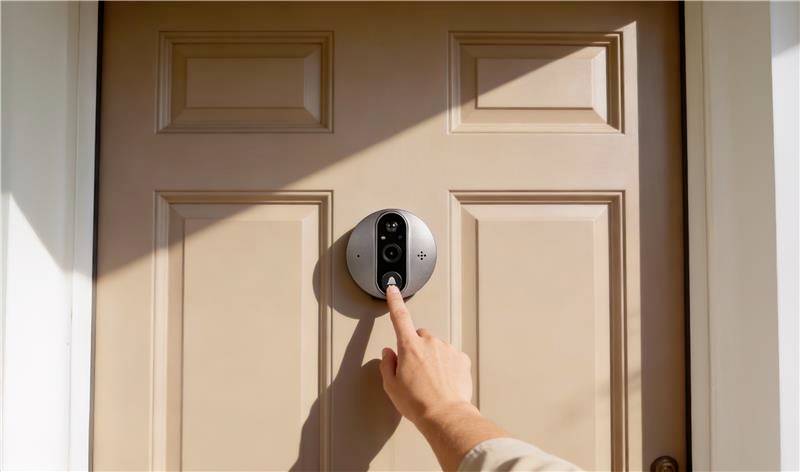

Person pressing a video doorbell on a front door<br>

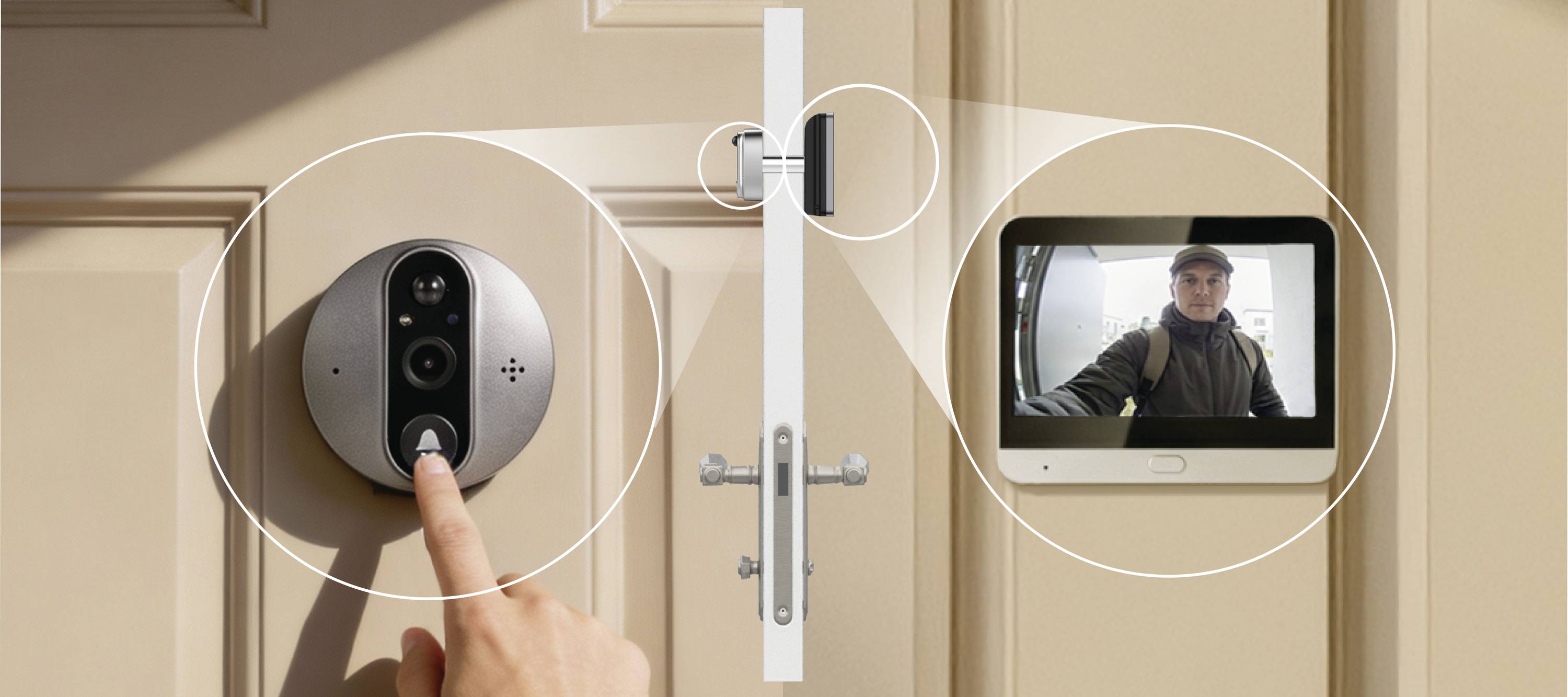

Smart door lock and video doorbell on a front door, with a person using a finger to unlock it and a live visitor video shown on the screen.

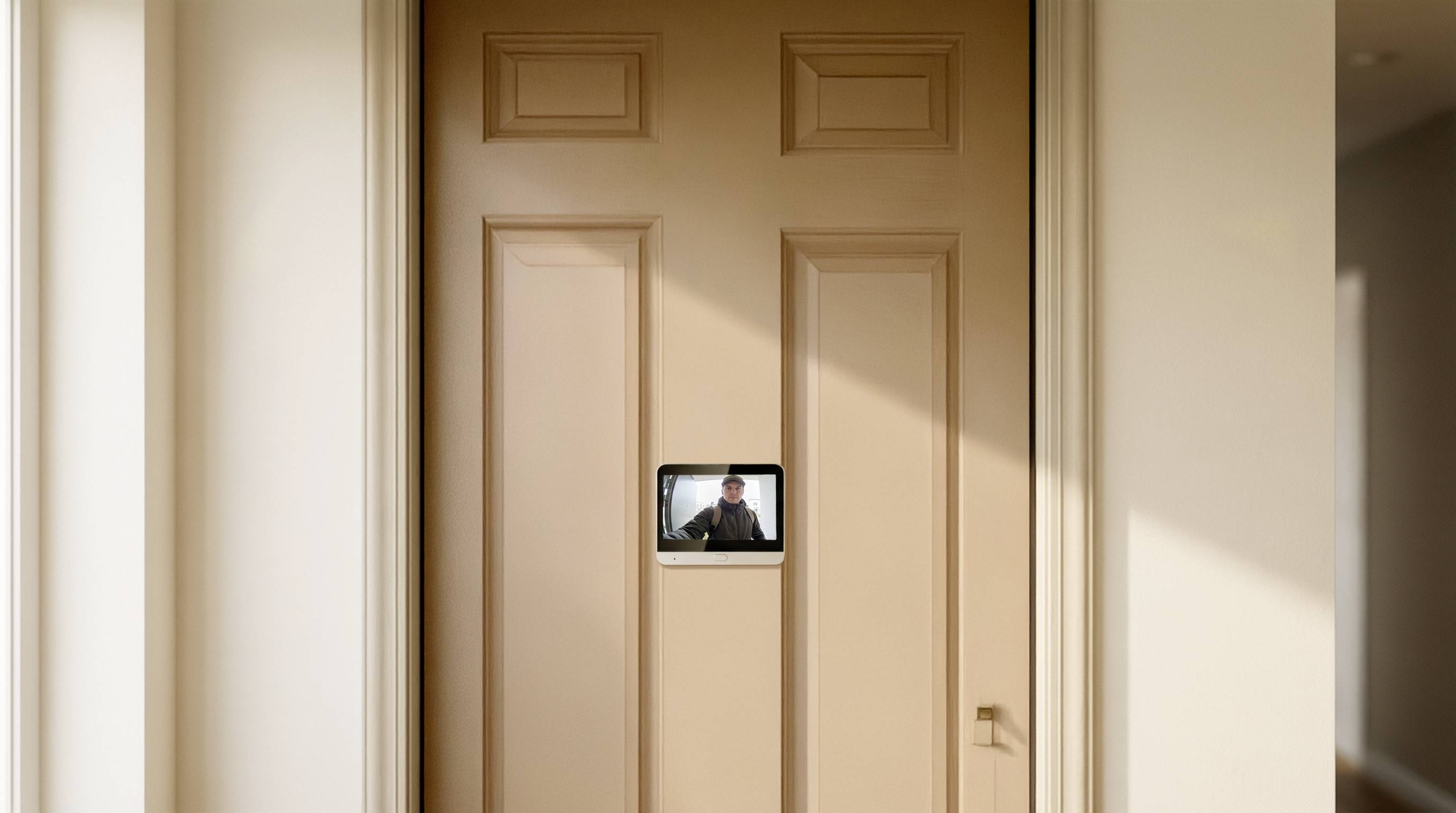

Closed beige interior door with a small window or display in the center showing a person on a screen.

1/6

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 96.63 / piece)

€ 96.63

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Technaxx TX-366 WLAN door spy

Set comprising monitor and adaptive camera bell
PIR detection of movements
Night vision (IR-LED) up to 3M
Long battery life, 5000 mAh rechargeable battery
600 rings, approx. 2 months
Automatic recording of an image and video recording
Quick access via APP

Technical specifications

Weight / dimensions of display: 207 g / (H) 11.2 x (L) 8.9 x (L) 2.5 cm
Weight/dimensions Camera: 15 g/(L) 5.3 x (Ø) 6.5 cm
3 MP 1/3" color CMOS sensor
Lens: F=2.5 mm, fixed focus
Viewing angle: Field of view 142° / 121° (H)
Day and night: Automatic IR-blocking filter
Minimum lighting: 0.01 lux (with infrared LED on)
IR distance: 1-3 m / 1 piece 940 nm IR LED
Video resolution: 2304x1296 pixels
Video frame rate 20 fps
Display size: 4.3" (10.92 cm); 480 x 272 pixels
Video compression: H.265
Microphone & Speakers: Built-in
Network 2.4 GHz 802.11b/g/n
WLAN- SECURITY WEP/WPA/WPA2
WLAN range: Max. 15 m (open area)
Maximum radiated output power: 100 mW
Movement recognition distance:1-3 m (open space)
PIR-Motion detection: Yes ( If PIR is activated, only 1200 shot when battery is full!!!
Supports MicroSD cards (HC/XC) up to 32 GB (FAT32) (Class 10)
In-built, rechargeable Li-ion battery (3.7 V, 5000 mAh); 600x bells; with 10 releases per day the battery lasts for up to 2 months.
Power consumption: Operating mode: 380 mA (IR on); Standby mode: 200µA
INPUT POWER DC 5 V / 1 A, USB-C
Length of USB-C cable 3 m.
Data cable length 145 mm
Door thickness: Minimum 40 mm; maximum 115 mm
Weatherproof: No.
Operating condition: -20 to 55°C; relative humidity below 85% (no condensation)
User accounts: Total of 4 users (administrator and regular user)
Material: ABS plastic, aluminum alloy

Screen size diagonal (cm): 10.92 cm

Screen size diagonal (inches): 4.3 inch

Weight: 207 g

UKCA: yes

Product type: Digital LCD door spy hole

Documents & Downloads

Datasheet

Datasheet 3742949 Technaxx TX-366 TX-366 Digital LCD door spy hole 10.92 cm 4.3 inch

User & Safety Instructions

User & Safety Instructions 3742949 Technaxx TX-366 TX-366 Digital LCD door spy hole 10.92 cm 4.3 inch

Description

The WLAN Door spy TX 366 offers a modern and convenient option to keep an eye on the front door at all times. Thanks to the high-resolution 3 MP camera, the system provides clear and detailed pictures, which can be retrieved comfortably via live stream or as recording via the APP. The integrated 4.3 inch display also enables a direct view on the place without Smartphone.

With the support of 1 and 2-way audio, visitors can not only be seen but also directly addressed no matter whether you are at home or traveling. The connection is done via WLAN and enables a reliable remote display on iOS and Android devices via the free APP.

The integrated motion detection registers activities in the range of up to 3 meters and reliably informs you of events in front of your door. Thanks to infrared technology a clear view is ensured even in darkness The broad field of vision of 142 degrees ensures that a large area is covered.

The powerful 5000 mAh battery enables a long operating time of up to two months with normal use and can be charged comfortably via USB C. In addition, recordings can be stored locally on a MicroSD card.

Easy installation and flexible adjustment to different door thicknesses make the WLAN door spy hole a practical solution for more safety and convenience in everyday life.

This text is machine translated.
