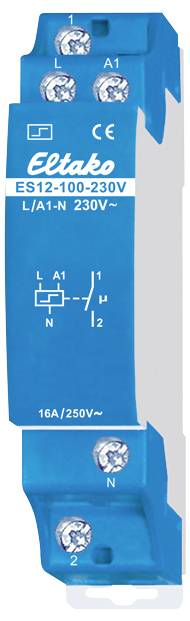

Impulse changeover switch DIN rail Eltako ES12-100-230V 1 maker 230 V AC 16 A 2000 W 1 pc(s)
Product type
Impulse changeover switch
Operating voltage
230 V AC
Contact type
1 maker
Switching voltage (max.)
250 V AC
Switching current (max.)
16 A
EAN:
Part number:
Item no:
Number
Total (€ 35.99 / piece)
€ 35.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Impulse changeover switch
- Type
ES12-100-230V
- Operating voltage
230 V AC
- Min. operating voltage
12 V DC/AC
- Max. operating voltage
230 V DC/AC
- Operating voltage
12 - 230 V DC/AC
- Permanent current (max.)
16 A
- Contact type
1 maker
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Max. switching capacity
2000 W
- Features
Low noise
- Mounting type
DIN rail
- Width
18 mm
- Depth
58 mm
- Dim
(W x D) 18 mm x 58 mm
- Content
1 pc(s)
DIN rail
Electronic switch
58 mm
1
12-230 V
230-230 V
AC/DC
AC
50-50 Hz
50-50 Hz
FALSE
4 A
2000 W
1000 VA
1000 VA
500 VA
16 A
0
1
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3398174 Impulse changeover switch DIN rail Eltako ES12-100-230V 1 maker 230 V AC 16 A 2000 W 1 pc(s)
Description
1 closer 16 A/250 V AC, 230 V-LED lamps up to 200 W, incandescent lamps 2000 W. Standby loss only 0.3 W. Rail mounting device for mounting on DIN-EN 60715 TH35 rail. 1 division unit = 18 mm wide, 58 mm deep. Control voltage 230 V AC at control input A1. Very low switching noise. The terminal assignment is compatible with the electromechanical surge switch S12-100-.
This text is machine translated.
This text is machine translated.
