Buy Impulse changeover switch Flush mount Finder 27.05.8.230.0000 2 makers 230 V AC 10 A 2300 VA 1 pc(s)

Relay with transparent cover; inscription '230 V, 10 A'. Four terminals on the right, labelling provides information about voltage and current.

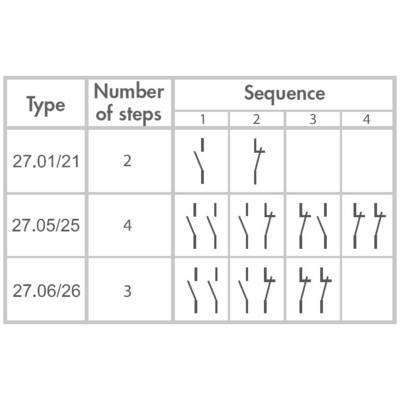

'Table shows type, number of steps and sequence: Type 27.01/21 has 2 steps; Type 27.05/25 has 4 steps; Type 27.06/26 has 3 steps.'

Circuit diagram with two parallel electrical circuits. Left: Number 27.01 and 27.21, connections from 2 to A1/1 and A2. Right: Number 27.05, 27.06, 27.25, 27.26, connections from 2 to A1/1/3, 4, A2.

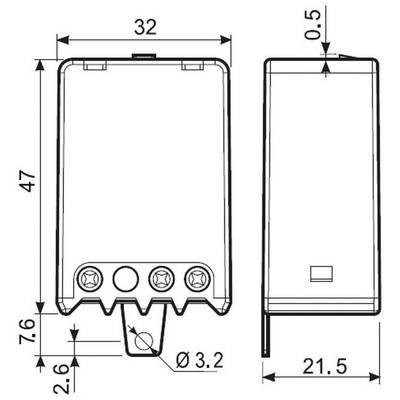

Technical drawing of a rectangular enclosure with dimensions: 47mm height, 32mm width, three mounting points at the bottom.

1/4

Product type

Impulse changeover switch

Operating voltage

230 V AC

Contact type

2 makers

Switching voltage (max.)

230 V AC

Switching current (max.)

10 A

Datasheet (PDF)

24 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 15.12 / piece)

€

Report legal concerns

Highlights & Details

Impulse changeover switch Flush mount Finder 27.05.8.230.0000 2 makers 230 V AC 10 A 2300 VA 1 pc(s)

Technical specifications

Contact load: light bulbs (230 V) 1000 W, fluorescent lamps compensated (230 V) 360 W, fluorescent lamps not compensated 500 W, halogen lamps 800 W

Product type: Impulse changeover switch

Type: 27.05.8.230.0000

Operating voltage: 230 V AC

Switch-on current: 20 A

Permanent current (max.): 10 A

Contact type: 2 makers

Contact material: AgNi

Switching sequence step 1: OFF-OFF

Switching sequence step 2: OFF-ON

Switching sequence step 3: ON-OFF

Switching sequence step 4: ON-ON

Switching voltage (max.): 230 V AC

Switching current (max.): 10 A

Max. switching capacity: 2300 VA

Mounting type: Flush mount

Connection: Screw terminal

Min. temperature: -40 °C

Max. temperature: +40 °C

Content: 1 pc(s)

RoHS-compliant: Yes

Impulse duration: 1 h

: IP20

Type: 4 Sequences OFF-OFF/OFF-ON/ON-OFF/ON-ON, max. 1 h actuation duration

Switching capacity: (AC1) 2300 VA/(AC15 V) 500 VA

Switching voltage: 230 V AC

Switching current: 10 A

Ambient temperature: -40 to +40 °C

Max. permanent current: (AC1) 10 A/230(V/AC) 450

Operating voltage: 230 V AC

: Other

: Mechanical switch

: 21.5 mm

: AC

: 0

: 2

: 0

Documents & Downloads

Datasheet

Datasheet 503200 Impulse changeover switch Flush mount Finder 27.05.8.230.0000 2 makers 230 V AC 10 A 2300 VA 1 pc(s)

User & Safety Instructions

User & Safety Instructions 503200 Impulse changeover switch Flush mount Finder 27.05.8.230.0000 2 makers 230 V AC 10 A 2300 VA 1 pc(s)

Description

Impulse relays with common connection (screw terminals) for coils and contacts. Various switching sequences depending on type. Coils for AC, relay remains in the last switching position after control voltage is switched off. For installation in wall sockets or screw mounting.
Type 27.0x: For controlling directly via 4 light buttons or up to 24 illuminated buttons via actuation/capacitor module 027.00.
