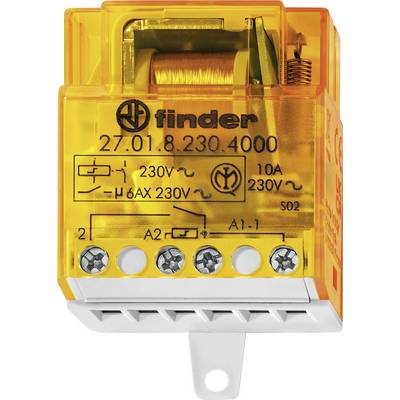

Impulse changeover switch Flush mount Finder 27.01.8.230.4000 1 maker 230 V AC 10 A 2300 VA 1 pc(s)
EAN:
Part number:
Item no:
Product type
Impulse changeover switch
Operating voltage
230 V AC
Contact type
1 maker
Switching voltage (max.)
230 V AC
Switching current (max.)
10 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Product type
Impulse changeover switch
- Type
27.01.8.230.4000
- Operating voltage
230 V AC
- Min. operating voltage
184 V AC
- Max. operating voltage
253 V AC
- Operating voltage
184 - 253 V AC
- Switch-on current
200 A
- Permanent current (max.)
10 A
- Contact type
1 maker
- Contact material
Silver tin oxide
- Switching sequence step 1
OFF-ON
- Switching voltage (max.)
230 V AC
- Switching current (max.)
10 A
- Max. switching capacity
2300 VA
- Mounting type
Flush mount
- Connection
Clamp
- Min. temperature
-40 °C
- Max. temperature
40 °C
- Width
35.2 mm
- Height
50.3 mm
- Depth
22.7 mm
- Dim
(W x H x D) 35.2 x 50.3 x 22.7 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
