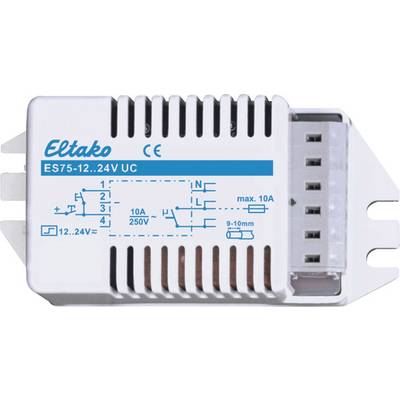

Impulse changeover switch Fixed Eltako ES75-12..24V UC 1 maker 230 V 10 A 500 W 1 pc(s)
EAN:
Part number:
Item no:
Product type
Impulse changeover switch
Operating voltage
230 V
Contact type
1 maker
Switching voltage (max.)
230 V AC
Switching current (max.)
10 A
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Technical specifications
- Product type
Impulse changeover switch
- Type
ES75-12..24V UC
- Operating voltage
230 V
- Contact type
1 maker
- Switching voltage (max.)
230 V AC
- Switching current (max.)
10 A
- Max. switching capacity
500 W
- Mounting type
Fixed
- Content
1 pc(s)
- Factory colour
Multicolour
Other
Other
28 mm
2.22
12-24 V
AC/DC
FALSE
AC
250-250 V
500 W
1000 VA
10 A
0
1
0
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162227 Impulse changeover switch Fixed Eltako ES75-12..24V UC 1 maker 230 V 10 A 500 W 1 pc(s)
Description
Impulse switch for lamps 12..24V UC. 1 NO contact non-potential-free 10A/250V AC. Stand-by loss only 1Watt. For panel mounting. 85mm long, 40mm wide, 28mm deep. With integrated transformer for galvanic isolation between control circuit and circuit, in order to fulfill the requirements for safety extra-low voltage SELV according to EN 60669-2-2. From production week 18/18 the safety requirement 2x MOPP according to EN 60601-1 is also fulfilled. Control with the internal voltage or an external control voltage from 12 to 24V UC, control current 10mA at 24V. Permanent power supply 230V. A fuse with a maximum of 10 A is required. For incandescent and halogen lamp load up to 500W and fluorescent lamps with KVG in DUO-circuit up to 1000VA. Fluorescent lamps with KVG compensated in parallel 300VA. Temperature at the installation point between -20°C and +50°C. Minimum command duration/command pause 20/300ms. Low-current side connections 4-pin pin housing for plug STOCKO MKF13264-6-0-404, 230V-side 6-pin terminal strip with plug-in terminals, maximum conductor cross-section 2.5mm2. A Stocko plug is included with each device.
