Name: Impulse changeover switch Flush mount Finder 26.04.8.012.0000 2 makers 120 V AC 2500 VA Piece 1 pc(s)
Brand: Finder
SKU: 2474754
Availability: BackOrder

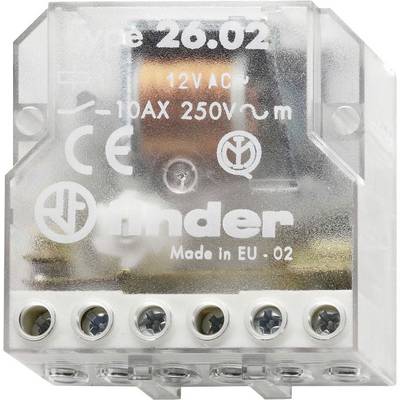

Finder Type 26.02 relay, 12V AC, 10A, 250V. Transparent housing, shows internal mechanism. Manufactured in EU.

Image similar

Packaging type

Piece

Product type

Impulse changeover switch

Operating voltage

120 V AC

Contact type

2 makers

Switching voltage (max.)

250 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 14.99 / piece)

€ 14.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Function: Mechanical switch
Mounting depth: 22 mm
Frequency of control voltage: 50 Hz
Max. Switching current (cos phi = 0.6): 5 A.
Max. Incandescent lamp load 800 W.
Max. Fluorescent lamp load 400 VA
Max. Fluorescent lamp load (Duo-circuit): 400 VA
Max. Fluorescent lamp load (compensated in parallel): 360 VA

Packaging type: Piece

Product type: Impulse changeover switch

Type: 26.04.8.012.0000

Operating voltage: 120 V AC

Permanent current (max.): 10 A

Contact type: 2 makers

Contact material: AgNi

Switching sequence step 1: OFF

Switching sequence step 2: OFF-ON

Switching sequence step 3: ON-OFF

Switching sequence step 4: ON-ON

Switching voltage (max.): 250 V AC

Max. switching capacity: 2500 VA

Mounting type: Flush mount

Depth: 22 mm

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2474754 Impulse changeover switch Flush mount Finder 26.04.8.012.0000 2 makers 120 V AC 2500 VA Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2474754 Impulse changeover switch Flush mount Finder 26.04.8.012.0000 2 makers 120 V AC 2500 VA Piece 1 pc(s)

Description

Surge current switch for mounting in flush-mounted socket or on chassis, 2 NO contacts for 10 A / 250 V AC, max. switching power at 230 V AC: AC1 2500 VA, AC15 500 VA, incandescent and halogen lamps 800 W, compensated fluorescent lamps 360 W, uncompensated fluorescent lamps 400 W, energy-saving lamps 200 W, LED (230 V AC) 200 W, NV halogen lamps or LED with EVG 200 W, NV halogen lamps or LED with KVG 400 W, switching sequence: Off on/on on/off on/on off, contact material AgNi, coil data 12 V AC, 4.5 VA, 17 Ohm, relay protection type IP 20
