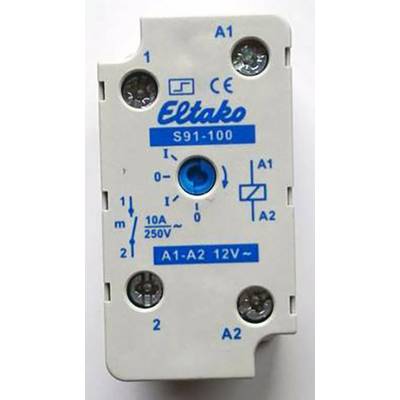

Impulse changeover switch Surface-mount Eltako S91-100-12VAC 1 maker 12 V AC 10 A 2300 W Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Impulse changeover switch
Operating voltage
12 V AC
Contact type
1 maker
Switching current (max.)
10 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
4% = € 0.82
€ 17.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Highlights & Details
Eltako impulse switch S,91-100-12 V
- Installation and wall mounting
- With manual actuation
- With switching position display
Technical specifications
- Packaging type
Piece
- Product type
Impulse changeover switch
- Type
S91-100-12VAC
- Operating voltage
12 V AC
- Time interval setting
100 %
- Permanent current (max.)
10 A
- Contact type
1 maker
- Switching current (max.)
10 A
- Max. switching capacity
2300 W
- Mounting type
Surface-mount
- Width
26 mm
- Height
32 mm
- Depth
50 mm
- Dim
(W x H x D) 26 x 32 x 50 mm
- Content
1 pc(s)
IP20
IP50
- Mounting type
Surface-mount
- Nominal voltage
12 V
- Weight
0.07
Surface mounted (plaster)
Other
32 mm
2.3
12-12 V
AC
50-50 Hz
TRUE
10 A
2300 W
2300 VA
2300 VA
500 VA
10 A
0
1
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1910781 Impulse changeover switch Surface-mount Eltako S91-100-12VAC 1 maker 12 V AC 10 A 2300 W Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1910781 Impulse changeover switch Surface-mount Eltako S91-100-12VAC 1 maker 12 V AC 10 A 2300 W Piece 1 pc(s)
Conformity certificate
Conformity certificate 1910781 Impulse changeover switch Surface-mount Eltako S91-100-12VAC 1 maker 12 V AC 10 A 2300 W Piece 1 pc(s)
Description
This is a switching relay, which is suitable for installation and AP-mounting. In addition, this is a manual operation and a switching position indicator. The switching relay is 26 mm wide and 32 mm deep and 26mm wide. The duty cycle is 100%, the control power requirement 5 W and the contact spacing 2 mm. In addition, it can also be used as an Electronic impulse switch IT 61-UC are used and the universal control voltage UC covers the voltage range 8-253 V AC 50-60 Hz and 10-230 V DC.
This text is machine translated.
This text is machine translated.
Features
- 50 mm long, 26 mm wide, 32 mm deep
- Duty cycle 100%
- Control power requirement 5 W
- Contact distance: 2mm.
- The universal control voltage UC covers the voltage range 8-253 V AC 50-60 Hz and 10-230 V DC.
