Name: Impulse changeover switch Surface-mount Eltako S91-100-8VAC 1 maker 8 V AC 10 A 2300 VA Piece 1 pc(s)
Brand: Eltako
SKU: 1910782
Availability: InStock

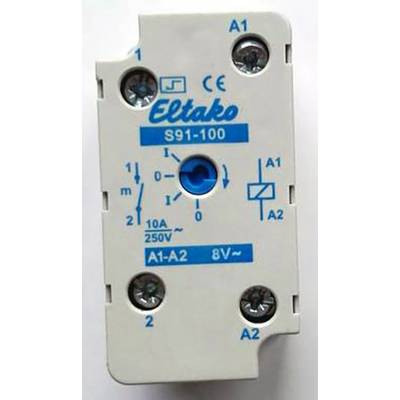

Electronic relay with blue inscription 'Eltako S91-100', showing connection points and switching symbols.

Packaging type

Piece

Product type

Impulse changeover switch

Operating voltage

8 V AC

Contact type

1 maker

Switching current (max.)

10 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

16 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 25.99 / piece)

€ 25.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Eltako impulse switch S,91-100-8V

For flush and surface mounting
With manual actuation
With switching position display

Technical specifications

Packaging type: Piece

Product type: Impulse changeover switch

Type: S91-100-8VAC

Operating voltage: 8 V AC

Time interval setting: 100 %

Permanent current (max.): 10 A

Contact type: 1 maker

Switching current (max.): 10 A

Max. switching capacity: 2300 VA

Features: + test button

Mounting type: Surface-mount

Width: 26 mm

Height: 50 mm

Depth: 32 mm

Dim: (W x H x D) 26 x 50 x 32 mm

Content: 1 pc(s)

: IP20
IP50

Mounting type: Surface-mount

Nominal voltage: 8 V

Weight: 0.07

: Surface mounted (plaster)

: Other

: 32 mm

: 2.3

: 8-8 V

: AC

: 50-50 Hz

: TRUE

: 10 A

: 2300 W

: 2300 VA

: 2300 VA

: 500 VA

: 10 A

: 0

: 1

: 0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1910782 Impulse changeover switch Surface-mount Eltako S91-100-8VAC 1 maker 8 V AC 10 A 2300 VA Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1910782 Impulse changeover switch Surface-mount Eltako S91-100-8VAC 1 maker 8 V AC 10 A 2300 VA Piece 1 pc(s)

Description

This is a switching relay, which is suitable for installation and AP-mounting. In addition, this is a manual operation and a switching position indicator. The switching relay is 26 mm wide, 32mm deep and 50mm long. The duty cycle is 100%, the control power requirement 5 W and the contact spacing 2 mm. The test voltage of contact to contact 2000 V and of control connection to contact 4000 V is. In addition, it can also be used as an electronic switching relay HE 61-UC and universal control voltage UC covers the voltage range 8-253 V AC 50-60 Hz and 10-230 V DC.

This text is machine translated.

Features

50 mm long, 26 mm wide, 32 mm deep
Duty cycle 100%
Control power requirement 5 W
Contact distance: 2mm.
It can also be used Electronic impulse switch IT 61-UC
The universal control voltage UC covers the voltage range 8-253 V AC 50-60 Hz and 10-230 V DC.

Description

Features

50 mm long, 26 mm wide, 32 mm deep
Duty cycle 100%
Control power requirement 5 W
Contact distance: 2mm.
It can also be used Electronic impulse switch IT 61-UC
The universal control voltage UC covers the voltage range 8-253 V AC 50-60 Hz and 10-230 V DC.
