Name: Intellinet 715133 19 inch Server rack cabinet power strip 1 U PG socket with switch Black
Brand: Intellinet
SKU: 2753626
Availability: InStock

Black power strip with eight sockets and red mains switch, horizontally oriented, suitable for 19-inch rack mounting.

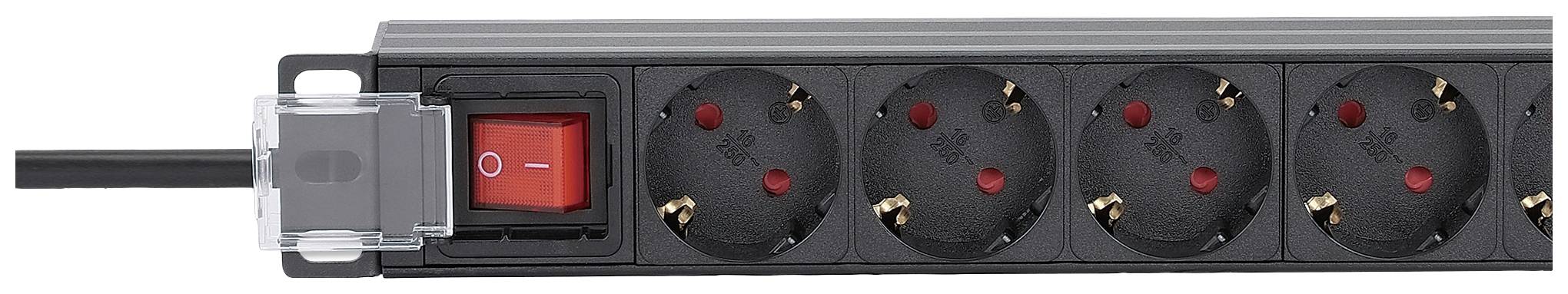

A black multi-socket extension with four sockets and a red on/off switch.

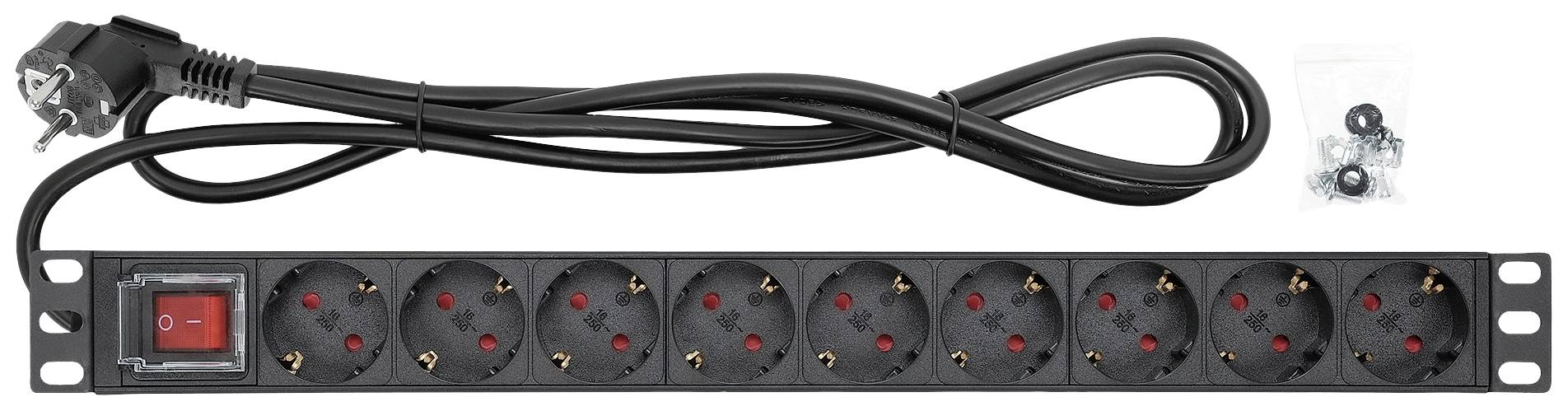

Power strip with ten Schuko sockets and black cable, including on/off switch and mounting hardware.

A black, rectangular device with a cable on the left side and two small mounting holes on the right side.

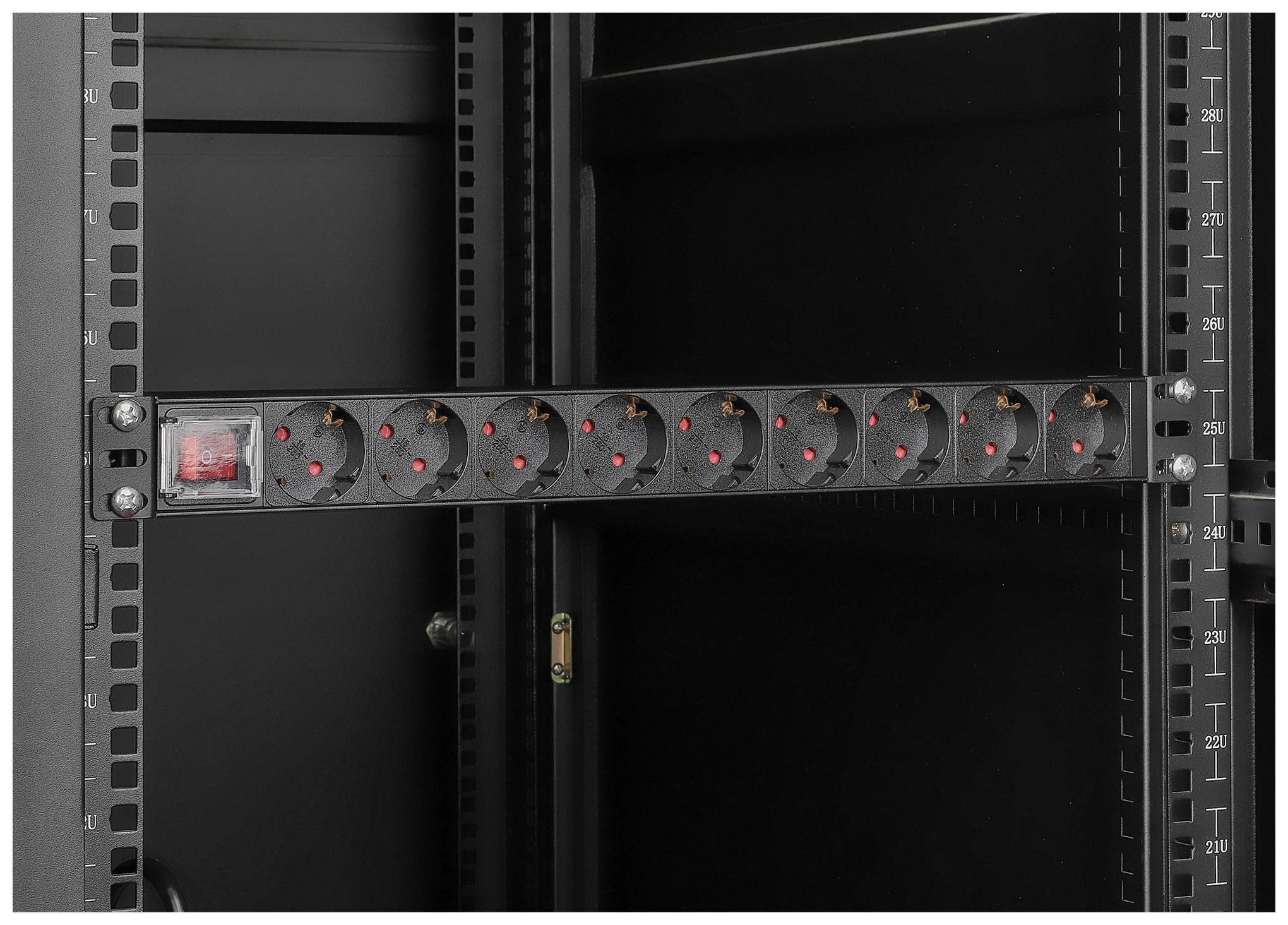

A black eight-socket power strip is horizontally mounted in an open, black server cabinet.

1/5

EAN:

Part number:

Item no:

Fast track dispatch on Wed 28 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 41.99 / piece)

€ 41.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Intellinet 19" 9-way socket strip

Illuminated, two-pole power switch with protective flap to prevent accidental switch-offSockets with increased contact protection by contact coversAngled socket arrangementRugged aluminum construction.Earthing point for protection against external electrical voltage peaks

Technical specifications

Product type: Server rack cabinet power strip

Features: with switch

Suitable for server rack cabinet (inch): 19 inch

Rack unit: 1 U

Socket type: PG socket

Outlets: 9

Voltage (max.): 230 V AC

Dim: (L x W x H) 400 cm x 483 mm x 45 mm

Amperage: 16

: 4000 W

Cable length: 2 m

Material: Aluminium

Content: 1 pc(s)

Factory colour: Black

Width: 483 mm

Height: 45 mm

Depth: 45 mm

Length: 400 cm

Weight: 0.91

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2753626 Intellinet 715133 19 inch Server rack cabinet power strip 1 U PG socket with switch Black

Description

Power strip with 9 sockets for horizontal rack mounting - Connector strip for up to nine network devicesMultiply a single power connector for network, telecommunications, security, AV or other electrical devices with this multiple socket strip from Intellinet NETWORK SOLUTIONS. In the arrangement angled to the right up to eight locking plugs can be comfortably placed side by side. The PDU uses only one height unit in 19-inch/483-mm racks. An illuminated power switch with protective flap allows you to switch the complete strip on or off as required.

This text is machine translated.

Features

Standards and certificatesCERoHSREACHIEC 60297IEC 60884Electrical detailsAC input 220.0 - 250.0 V, 50 - 60 HzMains voltage 230.0 VPlug type: Protective contact EU CEE 7/7 (type E/F), IEC 60884Socket type: EU CEE 7/7 (Type E/F); IEC 60884Maximum power: 4,000.0 WOverload protection: Maximum current 16.0 A.Physical detailsDimensions (L x W x H) 45 x 483 x 45 mm1 HE rack mountingCable length: 2 mCable type: H05VV-F 3G 1.5 mm²Socket angle 35°Net weight: 800 gGross weight 900 gAluminium casing
