JouJye 2.5" HDD caddy
EAN:
Part number:
Item no:
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
Only 4 Piece(s) available
Highlights & Details
YY-N-22SS for 2 x 6.4cm (2.5") 12G HDD/SSD

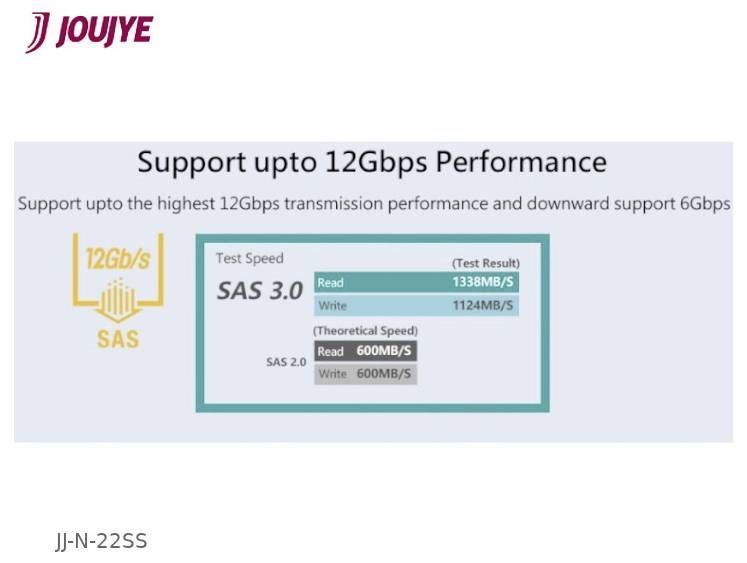

- Backplane for 2 HDD/SSD up to 9.5mm height for installation in a 8.9cm (3.5") installation slot;Compatible with SATA3 and SAS3 for up to 12Gbps
Technical specifications
- Product type
2.5" HDD caddy
- Dim
(W x H x D) 102 x 25 x 146 mm
- No. of 2.5" slots
2
- No. of 3.5" slots
1
- Weight
0.39 kg
- Width
102 mm
- Height
25 mm
- Depth
146 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3591122 JouJye 2.5" HDD caddy
Description

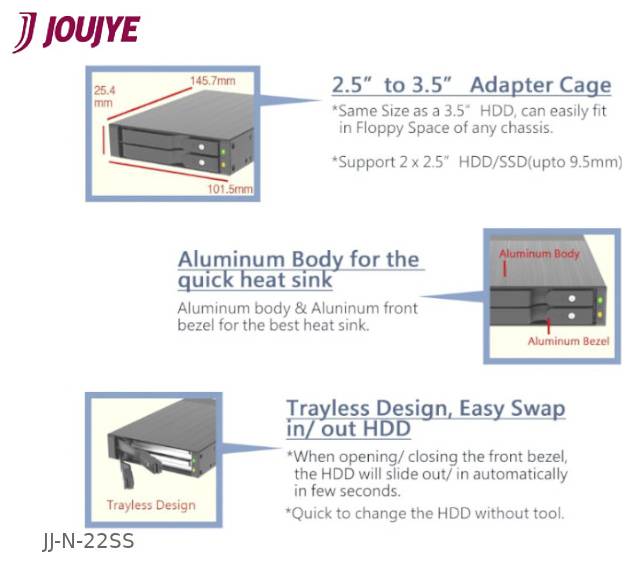

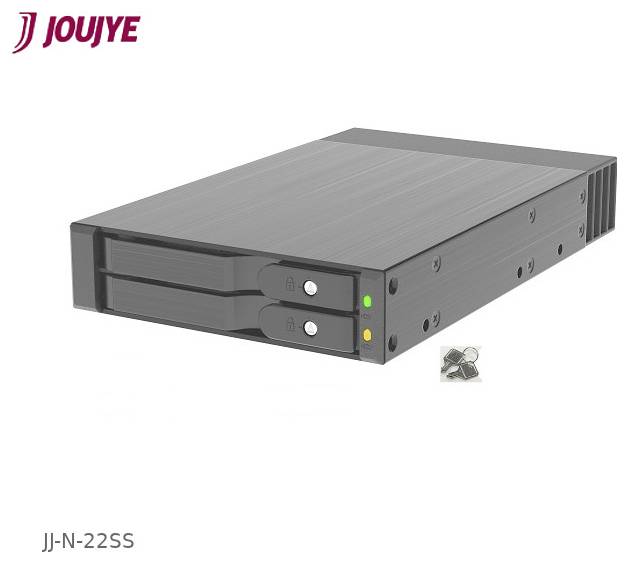

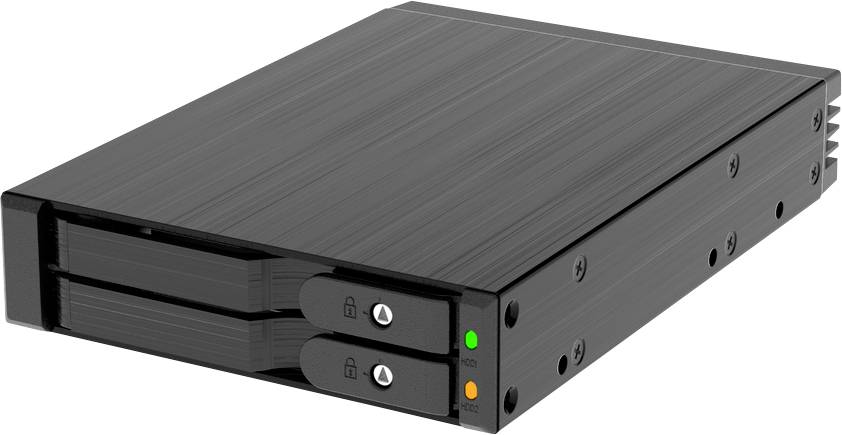

The high-quality aluminum casing offers space for up to two 6.4 cm (2.5") SATA or SAS hard disks with an installation height of up to 9.5 mm.
A locking mechanism at the end of the front closure ensures that the grip locks automatically and securely when pressed down.
Moreover, each drive compartment is secured with a metal lock in order to protect your data reliably.
Thanks to the hot-swappable backplane, the hard disks can be operated, changed or removed during operation - completely without system shutdown, if the higher-level system is also hot-swappable and configured accordingly.
The hard disks are used wirelessly and slide automatically when the front panel is closed and fits exactly in the high-quality Golden Finger connections, so that the installation is reliably done in a jiffy.
The integrated LED-displays inform at all times about the current operating and status of the inserted drives.
The housing can be flexibly installed both vertically and horizontally, depending on the application, in order to suit different installation situations
This text is machine translated.
A locking mechanism at the end of the front closure ensures that the grip locks automatically and securely when pressed down.
Moreover, each drive compartment is secured with a metal lock in order to protect your data reliably.
Thanks to the hot-swappable backplane, the hard disks can be operated, changed or removed during operation - completely without system shutdown, if the higher-level system is also hot-swappable and configured accordingly.
The hard disks are used wirelessly and slide automatically when the front panel is closed and fits exactly in the high-quality Golden Finger connections, so that the installation is reliably done in a jiffy.
The integrated LED-displays inform at all times about the current operating and status of the inserted drives.
The housing can be flexibly installed both vertically and horizontally, depending on the application, in order to suit different installation situations
This text is machine translated.
Features

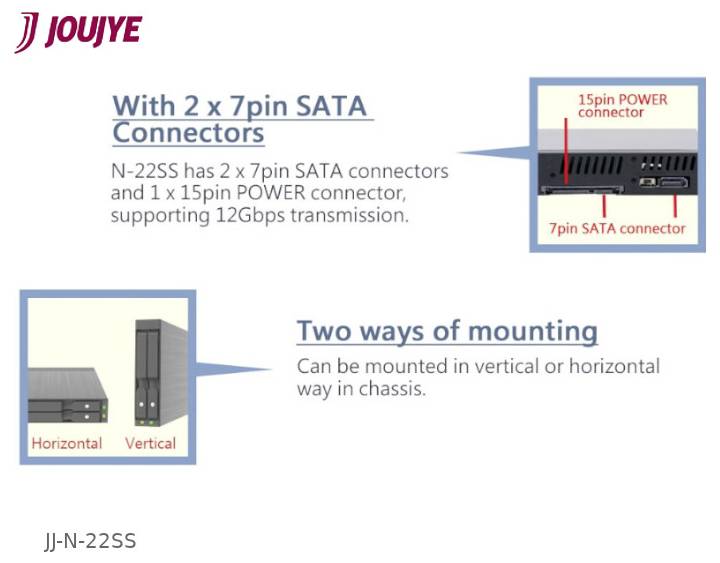

- 2 x 7pin SATA connection
- 1 x 15pin power connection
- 1 x key set (2 pieces)
