JouJye HDD adapter/changeable bracket SAS 12 Gbps, SATA 6 Gbps, SATA I, SATA II, SATA III
EAN:
Part number:
Item no:
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
Only 6 Piece(s) available
Highlights & Details
YY-N-11WM for 1 x 3.5" SSD/HDD
- Removable HDD rack for 1 x 3.5" SATA/SAS SSD/HDD for up to 12 Gbps (SAS3). Suitable for installation in a 5.25" installation slot
Technical specifications
- Compatible with (details)
SATA hard disc 8.9 cm (3.5")
- Product type
HDD adapter/changeable bracket
- Interfaces
SAS 12 Gbps
SATA 6 Gbps
SATA I
SATA II
SATA III
- Size
5.25" (13.3 cm)
- Material
Aluminium
- Dim
(W x H x D) 146 x 42 x 188.5 mm
- Lockable
Yes
- No. of 3.5" slots
1
- Design height
42
- Weight
730 g
- Control LEDs
Yes
- Cooling
40 mm fan
- Width
146 mm
- Height
42 mm
- Depth
188.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3475312 JouJye HDD adapter/changeable bracket SAS 12 Gbps, SATA 6 Gbps, SATA I, SATA II, SATA III
Description

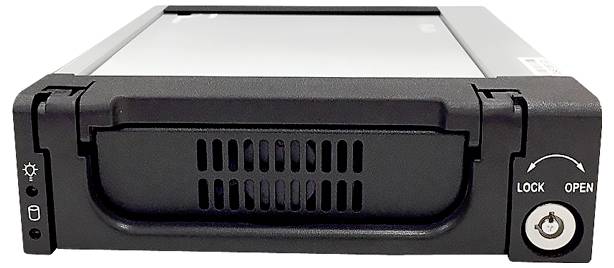

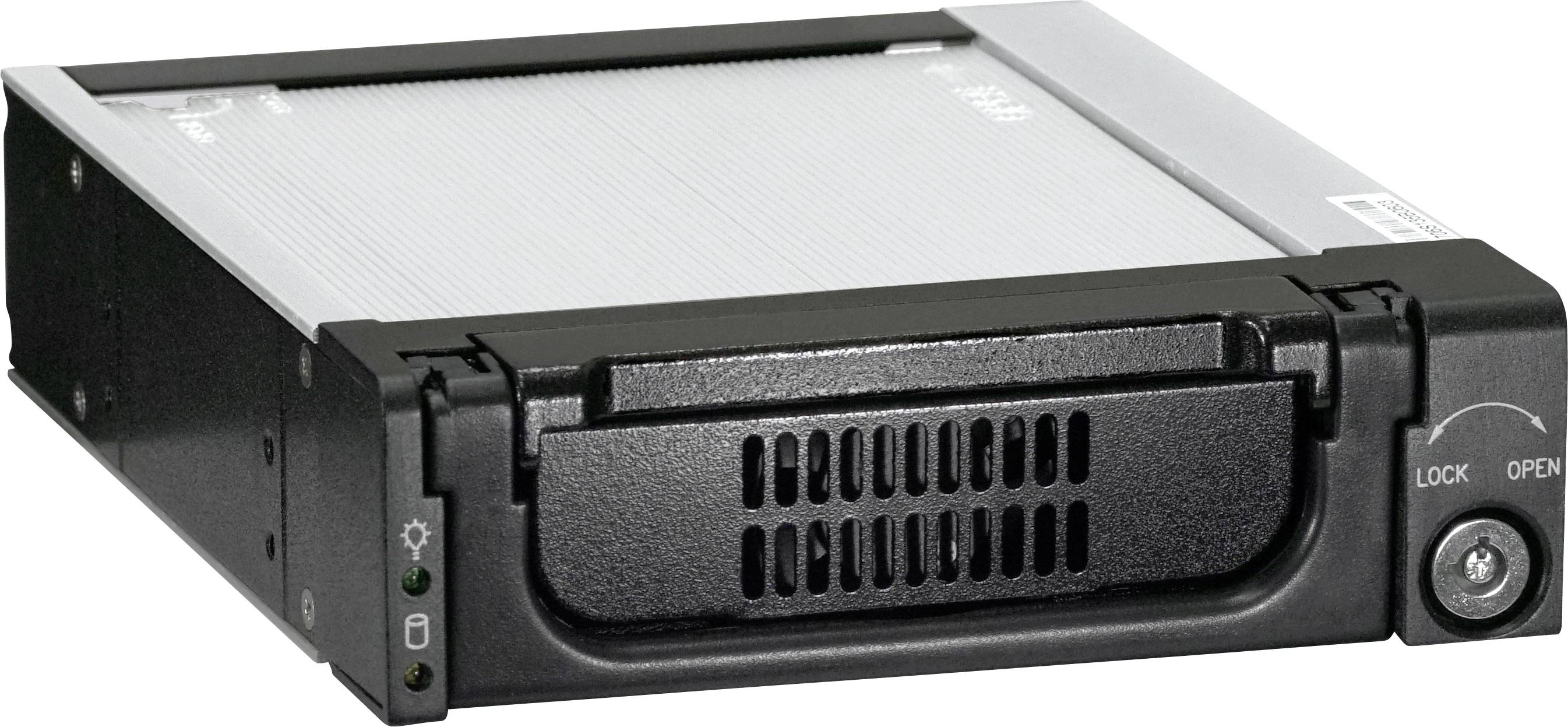

The high-quality aluminum housing supports SATA3 and SAS3 with data transfer rates of up to 12 Gbit/s and is designed for a 8.9 cm (3.5") HDD or SSD.
An integrated 4-cm fan in the door provides efficient cooling and protects the hard drive from overheating.
The model JJ-N-11WM enables the installation of a 3.5" SATA I/II/III or SAS-I/II/III hard-disk in a 13.3 cm (5.25") installation slot.
For additional security, the device has a metal lock that automatically locks the hard drive when you turn it on.
This text is machine translated.
An integrated 4-cm fan in the door provides efficient cooling and protects the hard drive from overheating.
The model JJ-N-11WM enables the installation of a 3.5" SATA I/II/III or SAS-I/II/III hard-disk in a 13.3 cm (5.25") installation slot.
For additional security, the device has a metal lock that automatically locks the hard drive when you turn it on.
This text is machine translated.

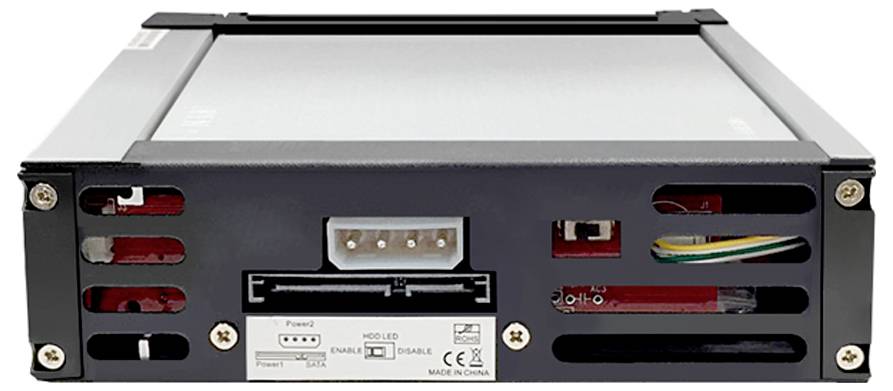

Features
- 1 x 7pin SATA
- 1 x 4pin current
- 1 x 15pin SATA-current connection
