JouJye JJ-N-49NVMS 5.25" to 2.5" HDD caddy
EAN:
Part number:
Item no:
Number
Total (€ 176.46 / piece)
€ 176.46
plus VAT.
Highlights & Details
JouJye JJ-N-49NVMS 13.34 cm (5.25 inch) hard disc installation frame to 6.35 cm (2.5 inch)
- Backplane for 4 pieces 6.35 cm (2.5 inch) NVMe SSD 2 HDD / SSD up to 15 mm high
- For installation in a 13.34 cm (5.25 inch) installation slot
- The device supports PCIe 3.0 / 4.0 for up to 32 / 64 Gbps
Technical specifications
- Compatible with (details)
NVMe SSD & U.2 HDD / SSD (up to 15 mm)
U.2 / U.3 (with Dual mode)
M.2 (with M2U03 Adapter) 2230 / 2242 / 2260 / 2280
PCIe 3.0 / 4.0 x4 32 / 64 Gbps
Supported HDD height from 7 mm to 15 mm
- Product type
5.25" to 2.5" HDD caddy
- Material
Metal
- Dim
(W x H x D) 145.8 x 41.6 x 159 mm
- Lockable
Yes
- No. of 2.5" slots
4
- Weight
620 g
- Control LEDs
Yes
- Cooling
2 x fan (40 x 40 x 20 mm)
- Width
145.8 mm
- Height
41.6 mm
- Depth
159 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3375951 JouJye JJ-N-49NVMS 5.25" to 2.5" HDD caddy
Description

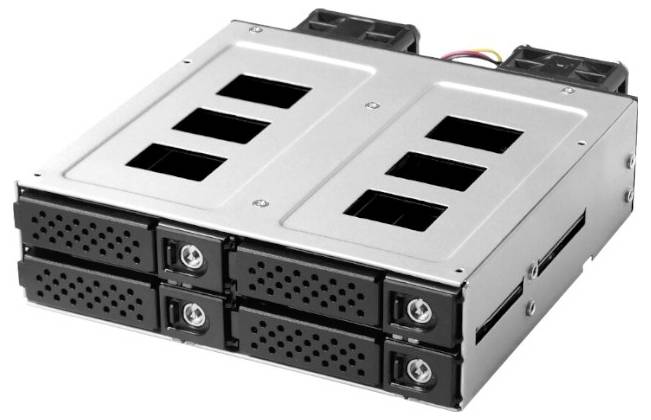

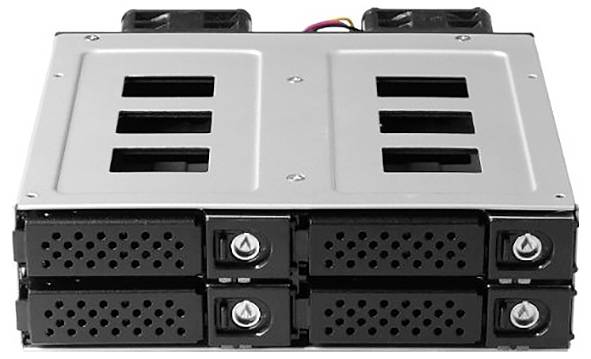

The high-quality aluminum housing can accommodate up to four NVMe U.2, or 6.35 cm (2.5 inch) SSDs with a hard drive installation height of up to 15 mm.
The anti-vibration device in the trays ensures a low-noise operation, because the stainless steel rails are equipped with shock absorbers. Moreover, each individual compartment is secured by a metal lock.
With the LED display you can have a view on the status of the installed hard disks at the same time.
Optimum air circulation is ensured by the generous ventilation holes on the frame and tray.
M.2 NVMe SSD (2230 / 2242 / 2260 / 2280) can also be installed in this device, therefore you need the optional JJ-M2U03 adapter (article no. 2901864).
This text is machine translated.
The anti-vibration device in the trays ensures a low-noise operation, because the stainless steel rails are equipped with shock absorbers. Moreover, each individual compartment is secured by a metal lock.
With the LED display you can have a view on the status of the installed hard disks at the same time.
Optimum air circulation is ensured by the generous ventilation holes on the frame and tray.
M.2 NVMe SSD (2230 / 2242 / 2260 / 2280) can also be installed in this device, therefore you need the optional JJ-M2U03 adapter (article no. 2901864).
This text is machine translated.

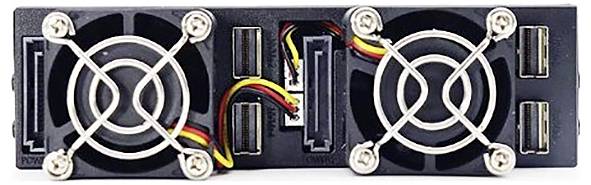

Features
- 4 x SlimSAS (SFF-8654) connection
- 2 x 15pin power connection
- 2 x 4 cm fan
