Illuminated metallic push button with a blue ring and red connection, suitable for industrial applications for control or signalling.

Illuminated metallic push button with a blue ring and red connection, suitable for industrial applications for control or signalling.

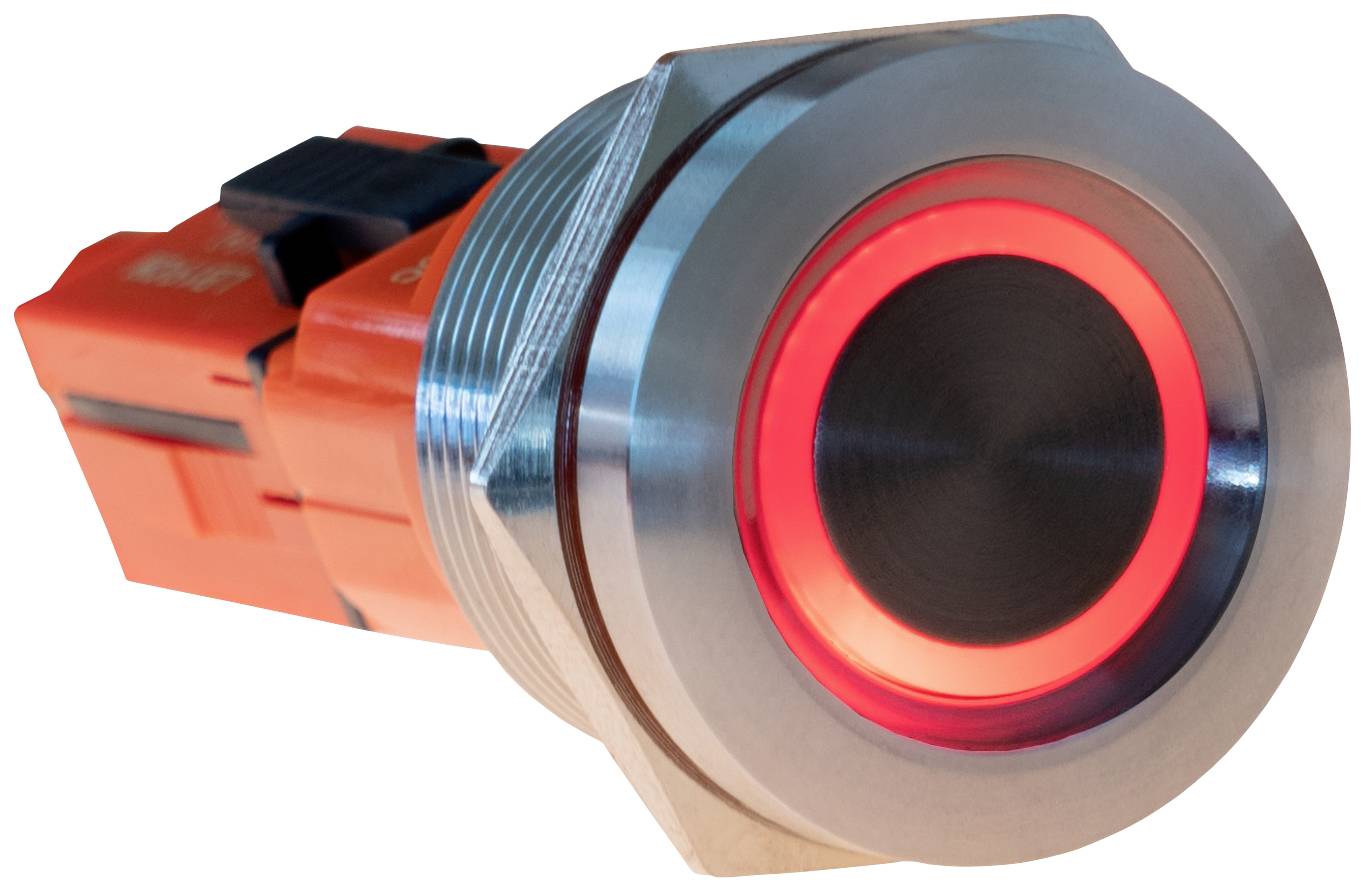

Red illuminated push button in a round metal casing, viewed from behind, showing light indicating a switching function.

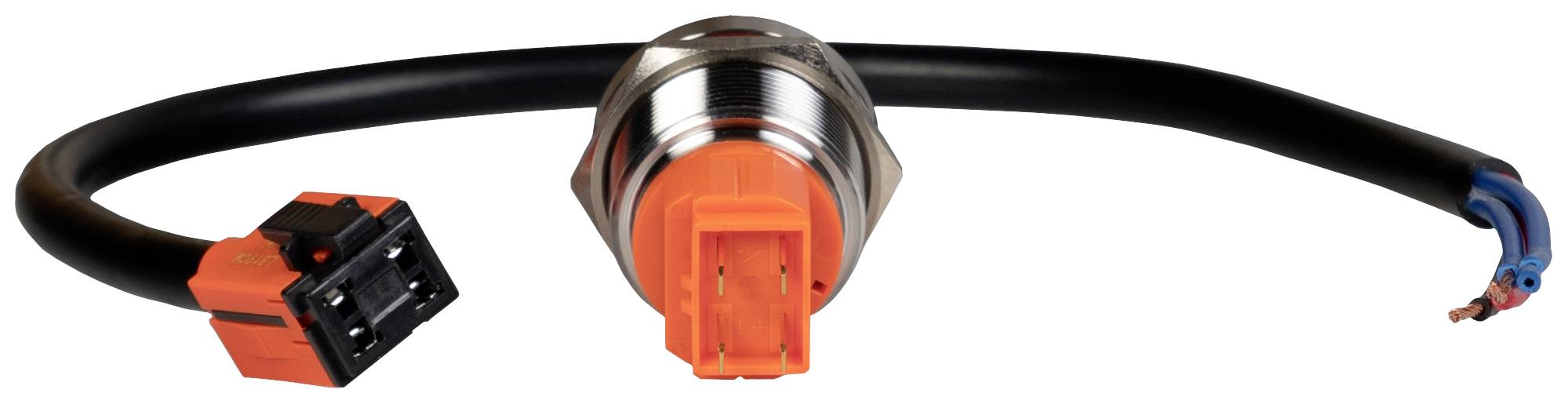

Electrical cable with metal casing in the centre, two connector plugs at each end, suitable for industrial applications.

1/3

Product type

Button

Lighting type

LED

Switch position

1 x On/Off

Connection

Pins

Switching voltage

24 V

Datasheet (PDF)

Joy-it

Fast track dispatch on Thu 15 Oct

50 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 20.06 / piece)

€ 20.06

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Push-button switch 24 V 2 A 1 x On/Off latching red/blue (Ø x L) 25 mm x 22.7 mm IK10/IP68 PA66

PINS H65 gold-coated
BRIGHT LED RED/BLUE
PA66

Technical specifications

Kern and outer material
Dimensions of mounting hole Ø 22 x ≤7.5 mm
Overall dimensions Ø 21.9 x 38 mm
LED life 40 000 hours
Connections: 2x NO
Insulation resistance ≥ 500 MΩ
Discharge voltage 1000 V/10 s.
Contact resistance ≤ 50 mΩ
Torque nut 5 - 14 Nm
Socket material PA66 flame-retardant
Ass. Ambient temperature --25°C to +55°C.

Product type: Button

Switch/button features: illuminable
Recess mount
Front ring (steel)
+ thread
+ LED
round
Grid of holes

Casing/button colour: Silver/stainless steel

Functions: latch

Lighting type: LED

Mounting type: Front ring, screw thread

Colour: Red
Blue

Bulb type: LED (monochrome)

Key type: pressing

Switch position: 1 x On/Off

Material: Stainless steel (non-corrosive)

Contact material: Gold-plated silver alloy

Connection: Pins

Contact resistance: 50 MΩ

Switching voltage: 24 V

Switching current (max.): 2 A

Min. temperature: -25 °C

Max. temperature: 55 °C

Length: 22.7 mm

Width: 38 mm

(Ø): 25 mm

Button diameter: 22 mm

Recess diameter: 22 mm

: IK10
IP68

Content: 1 pc(s)

Insulation resistance: 500 MΩ

Dim: (Ø x L) 25 mm x 22.7 mm

Industrial packaging: Yes

Type: 22T-02

Documents & Downloads

Datasheet

Datasheet 3203187 Joy-it 22T-02 22T-02 Button 24 V 2 A 1 x On/Off latch Red , Blue (Ø x L) 25 mm x 22.7 mm IK10, IP68 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3203187 Joy-it 22T-02 22T-02 Button 24 V 2 A 1 x On/Off latch Red , Blue (Ø x L) 25 mm x 22.7 mm IK10, IP68 1 pc(s)

Description

Our latching touch-steel pushbutton impresses through high-quality materials, protection classes and ergonomics. It is made of stainless steel and meets the protection classes IP68 (dust and water), IK10 (impact) and PA66 (flame). Our steel pushbutton is suitable for many applications because of its protection classes and longevity. The steel pushbutton features a bright LED ring that can be lit in two different colors (red & blue). This is used to identify whether the touch switch recognizes a contact or is operated. The required connection cables, bushing, sealing ring and nut are included in the delivery.

This text is machine translated.

Scope of delivery

Switches
Cable
Socket
Nut
Sealing ring

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation

Description

Our latching touch-steel pushbutton impresses through high-quality materials, protection classes and ergonomics. It is made of stainless steel and meets the protection classes IP68 (dust and water), IK10 (impact) and PA66 (flame). Our steel pushbutton is suitable for many applications because of its protection classes and longevity. The steel pushbutton features a bright LED ring that can be lit in two different colors (red & blue). This is used to identify whether the touch switch recognizes a contact or is operated. The required connection cables, bushing, sealing ring and nut are included in the delivery.

This text is machine translated.

Scope of delivery

Switches
Cable
Socket
Nut
Sealing ring

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
