Highlights & Details

ZY12PDG, USB-PD trigger module, 5-12V, max. 100W, max. 5A

Output voltage 5 V / 9 V / 12 V / 15 V / 20 V (adjustable via button)
Supply voltage (up to 20 V / 100 W)
Output current (max.) 5 A.
Output rating (max.) 100 W

Technical specifications

Output voltage
5 V / 9 V / 12 V / 15 V / 20 V (adjustable via button)
Supply voltage
(Up to 20 V / 100 W) PD-capable USB power supply (not included)
Output current Max. 5 A.
Output power Max. 100 W
Input interface solder pads
Output interface solder pads
Adjustable output voltage, can be used flexibly

Product type: Current transformer

Tool type: Converter

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2475887 Joy-it COM-ZY12PDG Current transformer 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2475887 Joy-it COM-ZY12PDG Current transformer 1 pc(s)

Description

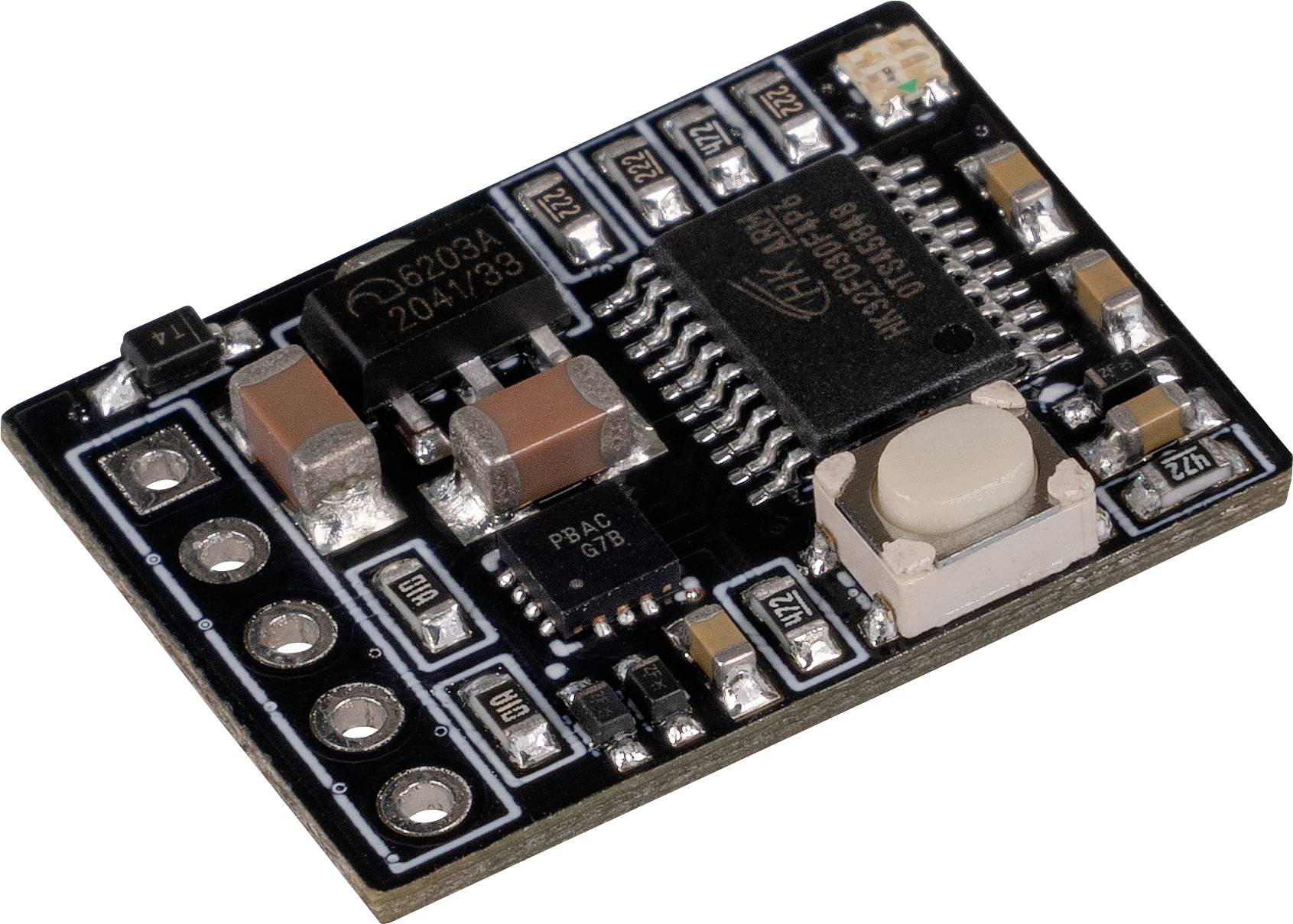

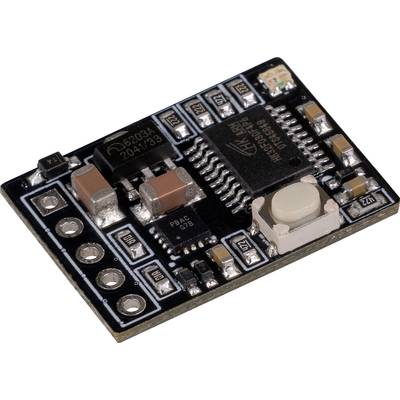

With this small module you can trigger USB PowerDelivery protocols and thus charge your laptop via a PD-capable USB-C power supply. The output voltage can be set in 5 steps (5 V, 9 V, 12 V, 15 V and 20 V) using the button integrated on the module as well as the trigger input. The currently selected voltage can be read from the color of the RGB LED integrated on the module. due to its interfaces and its design, the module can be used in flexi-bel and is easy to integrate.
