Jumo 00452749 Bayonet mating connector
EAN:
Part number:
Item no:
Product type
Bayonet mating connector
Manufacturer part #
00452749
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.79
3
5% = € 0.88
€ 16.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.79 / piece)
€ 17.79
plus VAT.
Technical specifications
- Manufacturer part #
00452749
- Product type
Bayonet mating connector
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2756317 Jumo 00452749 Bayonet mating connector
User & Safety Instructions
User & Safety Instructions 2756317 Jumo 00452749 Bayonet mating connector
Description

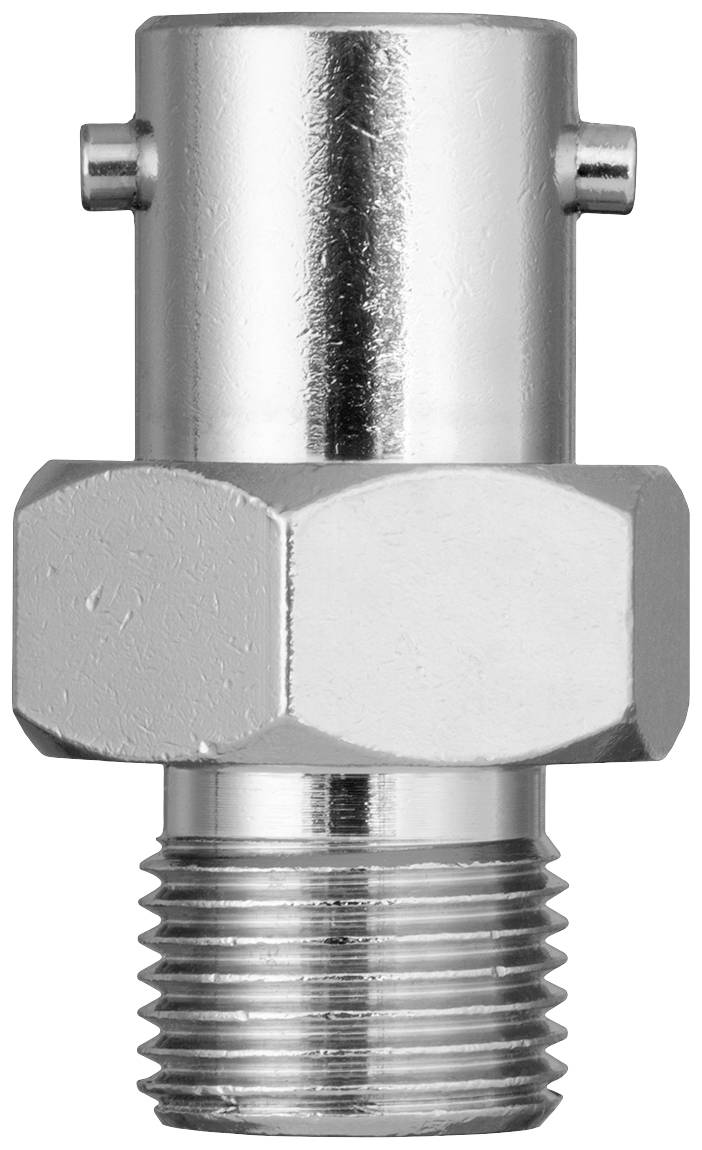

The bayonet counterpart in round design (SW) consists of material no. 2.0401.20, nickel-plated brass. A thread G 1/4 with a screw-in length L1 of 10 mm serves as the process connection. The counterpart is used for a 12 mm bayonet connection for fitting resistance thermometers and thermocouples. The outer diameter is 12 mm and the inner diameter is 8.5 mm. The total length of the counter-piece is 40 mm.
This text is machine translated.
