Jumo 00463423 Bayonet mating connector
EAN:
Part number:
Item no:
Product type
Bayonet mating connector
Manufacturer part #
00463423
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.09
3
5% = € 0.80
€ 15.29
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.09 / piece)
€ 16.09
plus VAT.
Technical specifications
- Manufacturer part #
00463423
- Product type
Bayonet mating connector
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2756334 Jumo 00463423 Bayonet mating connector
User & Safety Instructions
User & Safety Instructions 2756334 Jumo 00463423 Bayonet mating connector
Description

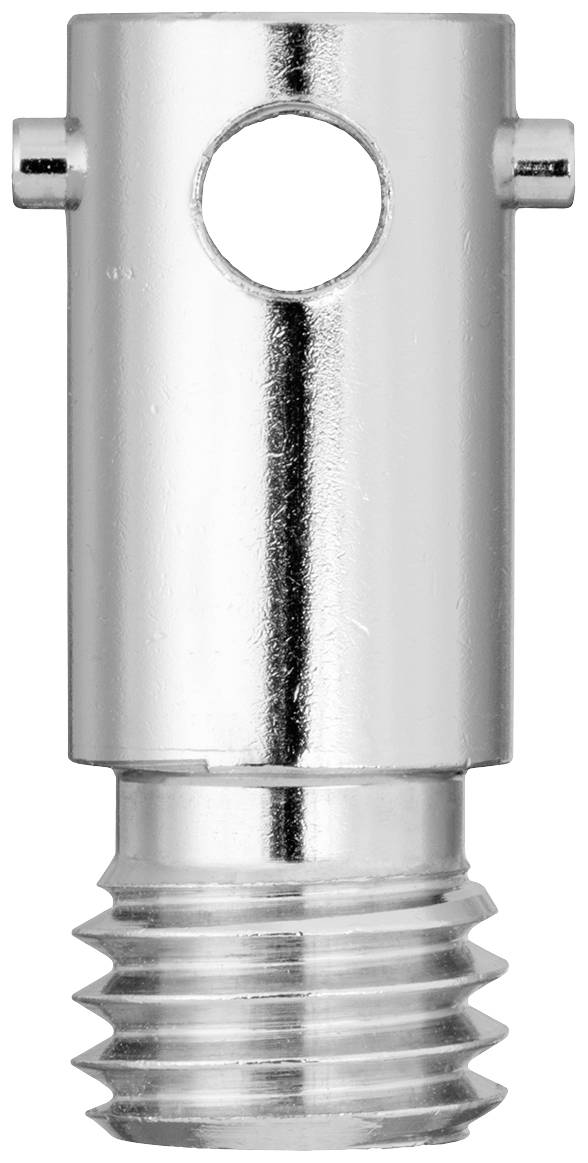

The bayonet-counterpart in round design (RD) consists of material no. 2.0401.20, nickel-plated brass. A thread M 12 with a screw-in length L1 of 10 mm serves as the process connection. The counterpart is used for a 12 mm bayonet connection for fitting resistance thermometers and thermocouples. The outer diameter is 12 mm and the inner diameter is 8.5 mm. The total length of the counter-piece is 30 mm.
