Name: Jumo Thyristor-controlled power regulator 00543444 20 A Switching voltage (max.): 264 V AC 1 pc(s)
Brand: Jumo
SKU: 2756451
Availability: BackOrder

A blue electronic control unit with a digital display showing 'Supply voltage 335.6'. Power, Fuse, Exit, and PGM buttons are visible.

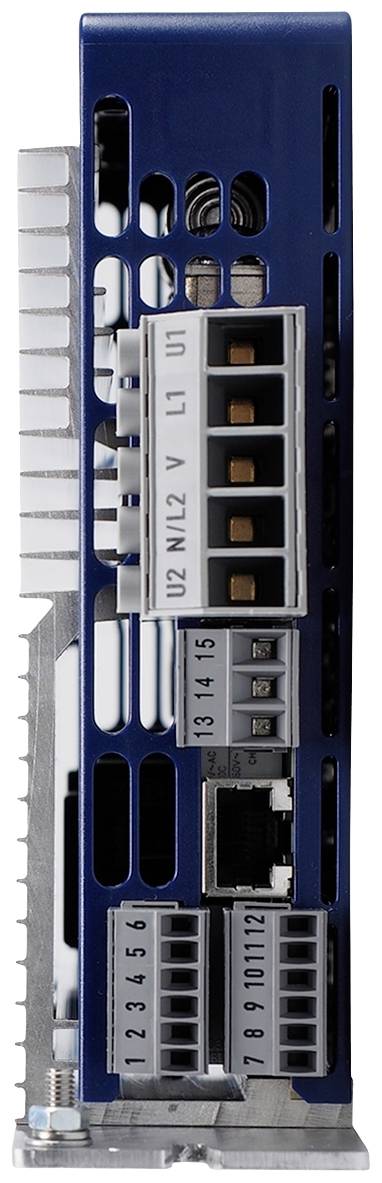

A vertical electronic device with heat sinks and multiple ports on the front panel.

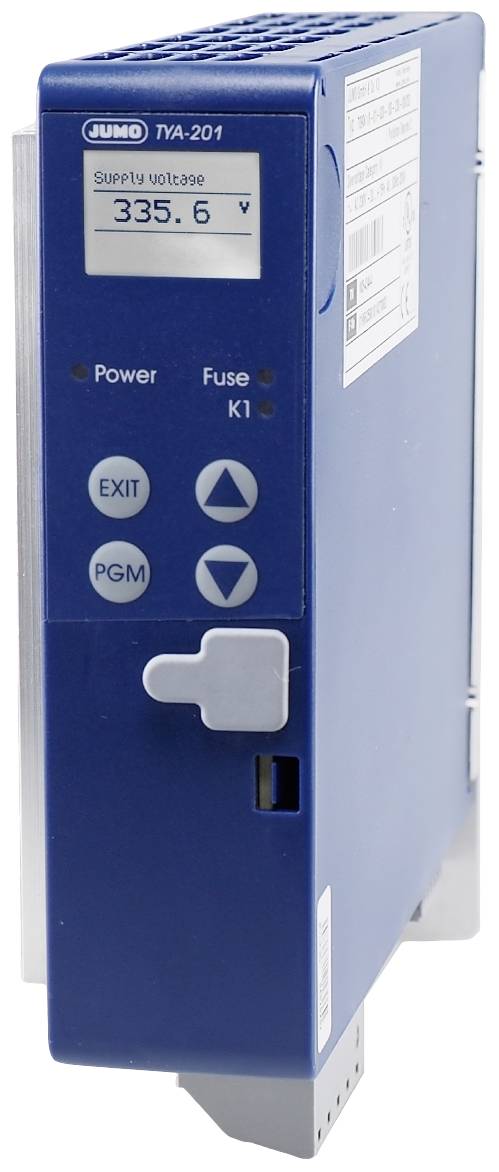

Blue electronic device with digital display reading 'Supply voltage 335.6'. Buttons: Power, Fuse K1, EXIT, PGM, Arrow keys for settings.

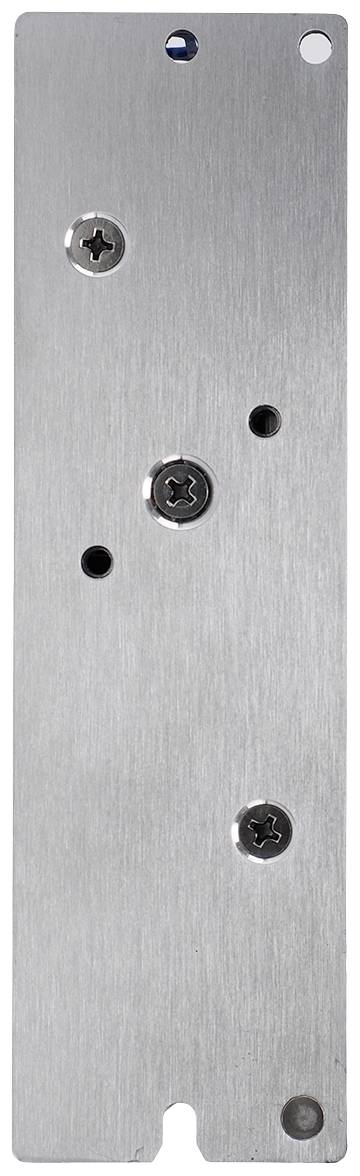

Metal plate with several screws and holes, partially obscured.<br><br>Note: While this is a direct translation that maintains the original meaning, in British English the translation is essentially identical to the American English version.

1/4

Packaging type

Piece

Product type

Thyristor-controlled power regulator

Control voltage (min.)

184 V AC

Control voltage (max.)

264 V AC

Switching voltage (max.)

264 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 475.00 / piece)

€ 475.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Thyristor-controlled power regulator

Type: 00543444

Control voltage (min.): 184 V AC

Control voltage (max.): 264 V AC

Control voltage range: 184 - 264 V AC

Switching voltage (min.): 184 V AC

Switching voltage (max.): 264 V AC

Current load (max.): 20 A

Output voltage (min.): 184 V AC

Output voltage (max.): 264 V AC

Max. output current: 20 A

: IP20

Weight: 1.1991 kg

Permanent current (max.): 20 A

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2756451 Jumo Thyristor-controlled power regulator 00543444 20 A Switching voltage (max.): 264 V AC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2756451 Jumo Thyristor-controlled power regulator 00543444 20 A Switching voltage (max.): 264 V AC 1 pc(s)

Description

The single-phase thyristor power controller in economy circuit operates in pulse group mode with lower-level U² control. The device clearly displays all process and configuration parameters on an LC display and is easy to operate with the 4 buttons on the front. Process errors are reported by an error detector relay. Process values can be output to an analog output. They can be used anywhere where larger resistive and inductive loads need to be switched, e.g. in industrial furnace construction, and in plastic processing.
