Name: Kathrein 218500001 218500001 Surge arrester Surge protection for: Networks (RJ45) 1 pc(s)
Brand: Kathrein
SKU: 3479037
Availability: InStock

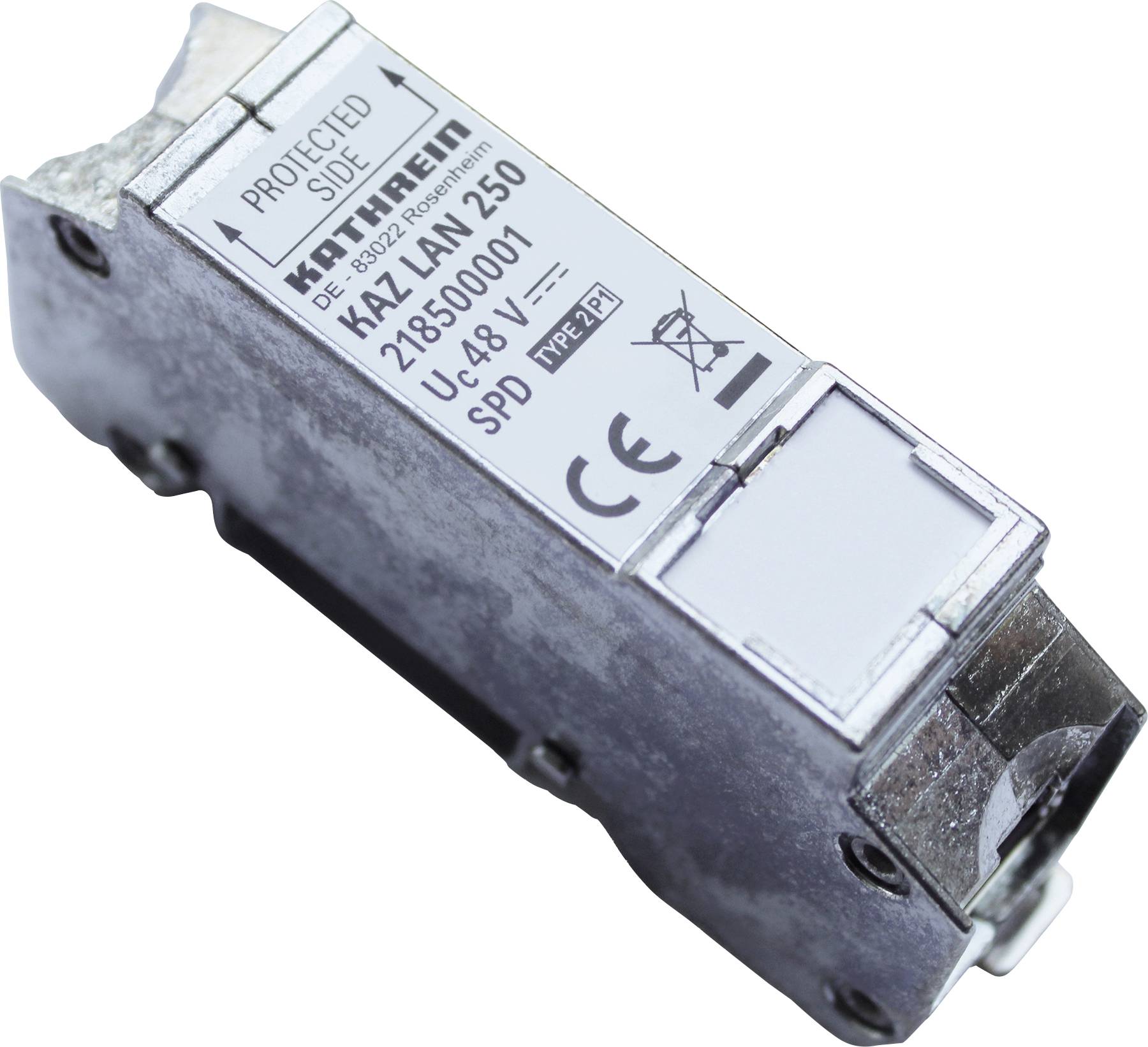

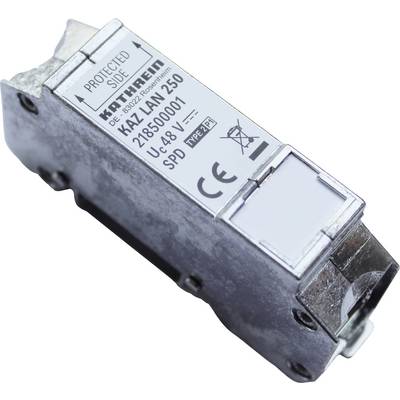

A close-up of a Kathrein surge protection device, model KAZ-LAN 250, showing technical specifications and certifications on its label.

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 124.99 / piece)

€ 124.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

KAZ LAN 250 surge suppressor

Comprehensive PoE conformity: The KAZ LAN 250 is a universal arrester, which has been specially developed for Power over Ethernet (PoE) and industrial Ethernet applications. It complies with the IEEE 802.3 standard and protects systems up to PoE++ / 4PPoE
Protection of all wire pairs: The device ensures complete protection by securing all wire pairs in the data network. This is achieved by powerful gas discharge arresters and a coordinated filter matrix per pair of wires
High Frequency Performance: Surge protection is for CAT structured cabling. 6 in the channel (class E) and achieves a limiting frequency (FG) of 250 MHz
Integration in protection concepts: The type 2 P1 arrester can be used according to the lightning protection zone concept at interfaces 0B – 2 and higher. It has a fully shielded adapter guide with sockets for the 35 mm DIN rail mounting in accordance with EN 60715

Technical specifications

Product type: Surge arrester

Surge protection for: Networks (RJ45)

Nominal voltage: 48 V

Type: Universal arresters Protection of all pairs of wires through efficient gas discharge arresters and tuned filter matrix per pair of wires

Operating temperature: -40 °C to 80 °C

: IP10

Manufacturer part #: 218500001

Type: KAZ LAN 250

Compatible with (details): Structured cabling according to class E up to 250 MHz. CAT 6 in the channel (class E). Can be used according to the lightning protection zone concept at interfaces 0B – 2 and higher.

Standards: IEC 61643-21 / EN 61643-21 testing standards
IEEE 802.3 compliant (for PoE)
DIN rail mounting according to EN 60715

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3479037 Kathrein 218500001 218500001 Surge arrester Surge protection for: Networks (RJ45) 1 pc(s)

Description

KAZ LAN 250: Maximum protection for your data networks.

Ensure the highest level of security in your network infrastructure!

The Kathrein KAZ LAN 250 (Order No. 218500001) is the universal arrester for overvoltage protection in data networks and Ethernet applications. Protect your devices reliably, especially with Industrial Ethernet and Power over Ethernet (PoE), since the device up to PoE++ / 4PPoE conform.
The KAZ LAN 250 offers protection for all wire pairs and is Ideal for retrofitting. With a limiting frequency of 250 MHz and is suitable for structured cabling according to CAT. 6 in channel (class E), this product is immediately usable according to the lightning protection zone concept
